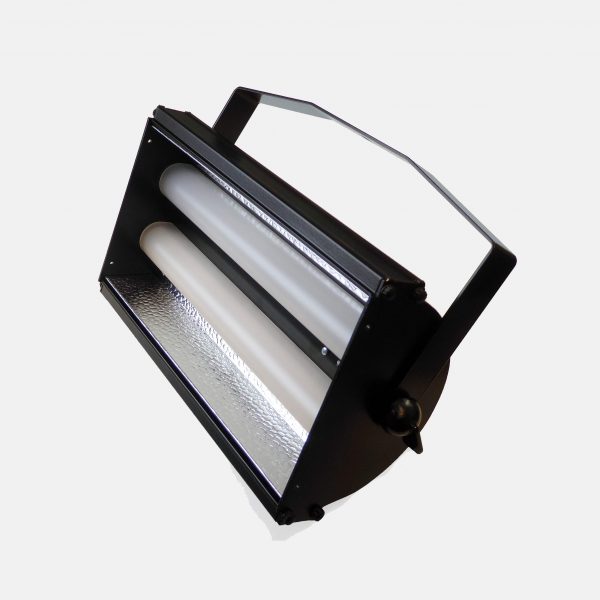

Soloflood Projector
LED Projector
Light Source
Tridonic LLE LED
Colour Temperature
3000K / 4000K
Mounting
with mounting bracket
Application
Large interior projection
Housing
Die-cast aluminium
1 / 2
Overview
Cat. No: S18394
Our Soloflood LED projector is the perfect solution for any interior project requiring a high level of illumination over larger areas including churches, large retail outlets etc. Manufactured in the UK using our own aluminium extruded housing with aluminium end plates and designed around the very latest generation of Tridonic LED components for optimum performance and longevity.
Supplied as standard with high efficiency non dimming driver but also available with a range of dimming options and power output. Standard colours black, white, and silver as standard with other BS/RAL colours to order.
Downloads
| TECHNICAL OVERVIEW (PDF) | > |
| DRAWING (JPG) | > |
| SOVEREIGN PROJECTOR BROCHURE (PDF) | > |

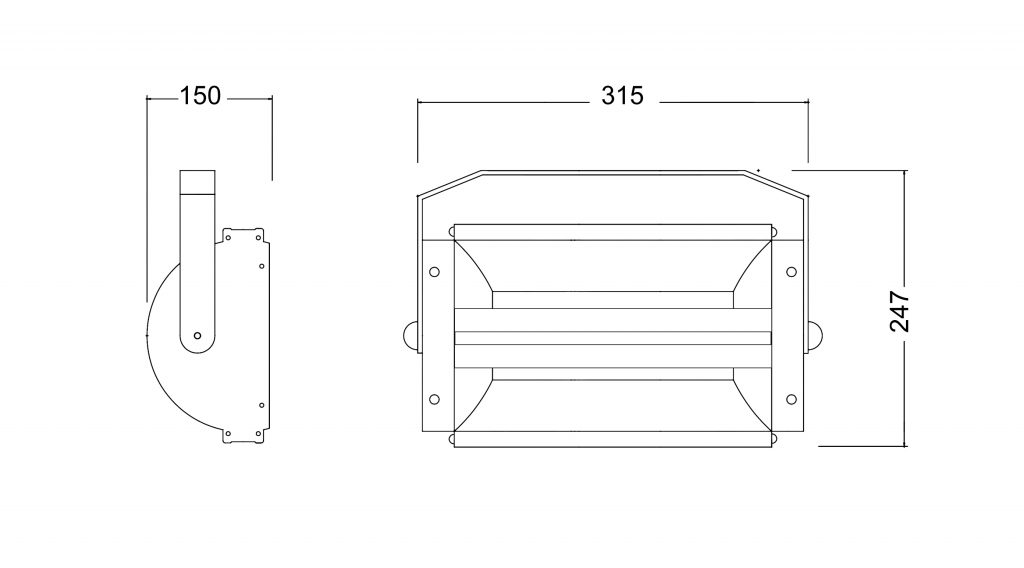

Dimensions
Technical Details
| Lamp: | Tridonic LLE LED |
| Lamp Life: | 50,000 hours |
| Colour Rendering: | CRI > 80 |
| Voltage: | 240V |
| Driver: | Integrated high-efficiency |
| Electrical Class: | Class 1 |
| IP Rating: | IP20 |
| LED Warranty: | 5 years |
Housing Specifications
| Housing Material | Die-cast Aluminium |
| Finish | Powder Coated |
| Optics | Opal tubes diffuser |
| Dimensions | W315mm x D150mm |
| Weight | 2.8KG |
| Mounting | with mounting bracket |
Light Output Details
| Col. Temp | Wattage | Lumen Output | LED Efficacy |
| 3000K | 25.5W | 4060lm | 159lm/W |
| 4000K | 25.41W | 4240lm | 167lm/W |
Build Your Product
Range
Mounting
Housing
Col Temp
POWER SUPPLY
Product code:
Product details:
