Suspended Ring 1100mm

Suspended LED Pendant

Key Features

Light Source

Osram 2835

Colour Temperature

3000K / 4000K

Mounting

Wire Suspension

Application

Interior Ceiling

Housing

Extruded Aluminium

Enquire Build your product

Enquire

Build your product

1 / 2

Overview

Cat. No: S18662

The Sovereign Suspended Ring is a sleek new range of suspended downlights and up/downlights. Housed in extruded aluminium, these high quality luminaires are matched by their beautifully uniform emission, utilising the latest LED technology.

Available in four sizes, all versions include dimmable and emergency options, various housing colours and colour temperatures. Also available in other outputs to suit any applications.

Downloads

OVERVIEW (PDF)	>
TECHNICAL DRAWING (JPG)	>
INSTALLATION INSTRUCTIONS	>
Photometry (LDT)	>

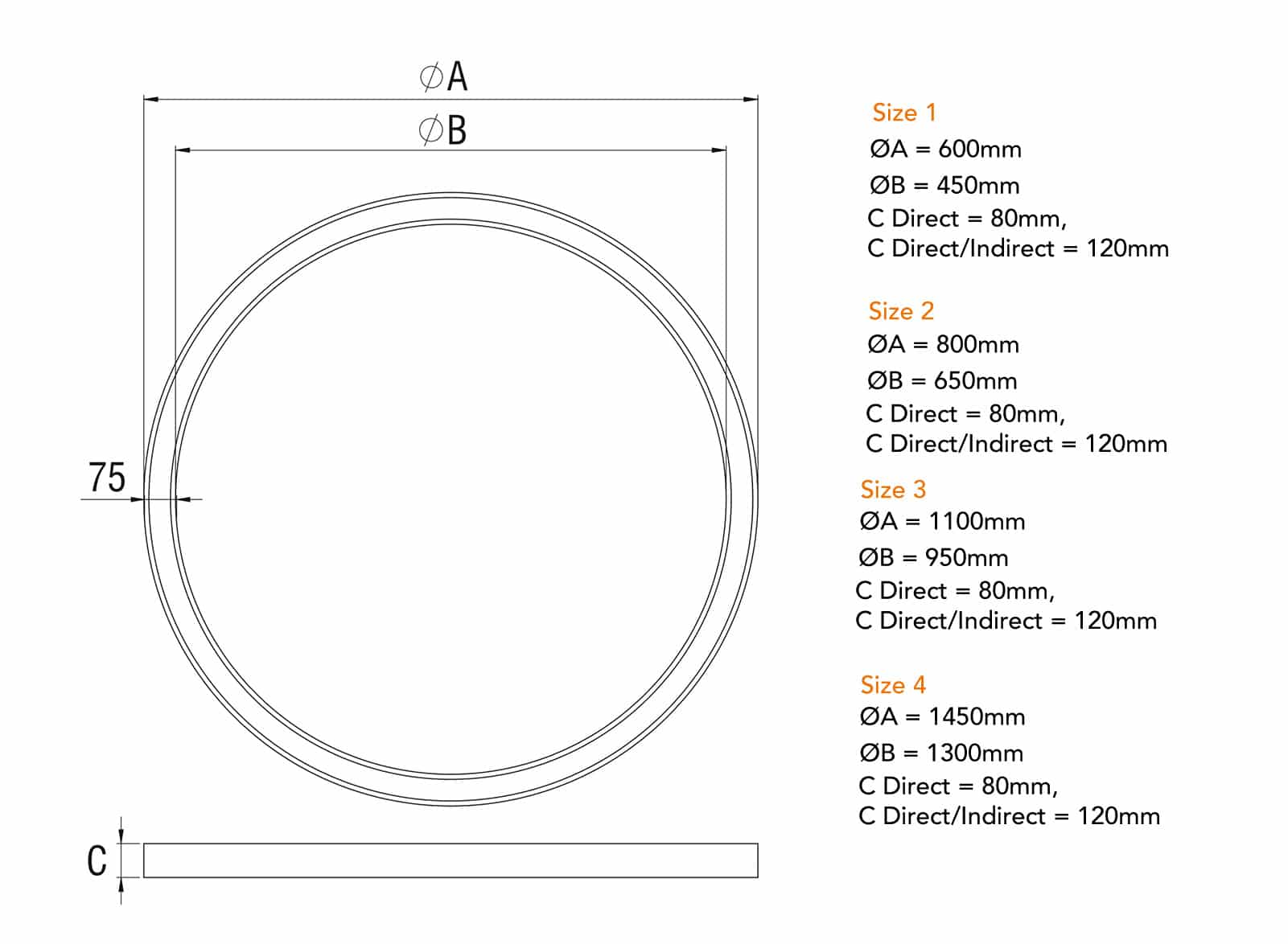

Dimensions

Technical Details

Lamp Life:	50,000 hours
Colouring Rendering:	Ra>90
Wattage:	79W
Voltage:	240V
Protection Rating:	Class 1
Driver:	Integrated high-efficiency
IP Rating:	IP20
LED Warranty:	5 Years

Housing Specifications

Housing Material	Extruded Aluminium
Finish	Powder Coated
Optics	Opal PMMA
Dimensions	Ø110mm x D80mm
Weight	12KG
Mounting	Wire Suspension

Light Output Details

DIRECT (4000K)
Size	Wattage	Lumen Output	LED Efficacy
Ø600mm	38W	6232lm	164lm/W
Ø800mm	52W	8528lm	164lm/W
Ø1100mm	79W	12956lm	164lm/W
Ø1450mm	99W	16236lm	164lm/W

DIRECT & INDIRECT (4000K)
Size	Wattage	Lumen Output	LED Efficacy
Ø600mm	38W + 30W	6232 + 4920lm	164lm/W
Ø800mm	52W + 37W	8528 + 6068lm	164lm/W
Ø1100mm	79W + 51W	12956 + 8364lm	164lm/W
Ø1450mm	99W + 58W	16236 + 9512lm	164lm/W
