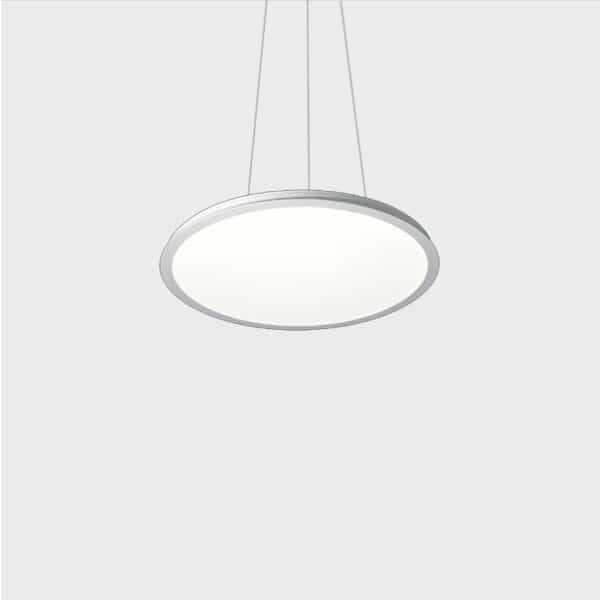

Round Suspended
Suspended LED Panel
Cat. No: S18636 | S18637 | S18638 | S18639
Taking the successful LED Panel concept to an exciting new level, these exceptionally slim circular units provide high levels of illumination with a pleasingly soft appearance. With a main housing depth of just over 20mm rising to a maximum of only 50mm for the rear gear housing, these units give an elegant “floating” appearance when suspended as pendants on the standard wire suspension system. Available in four sizes. Also available as a recessed option using spring fixing clips or even as a surface mounted unit. Also available with an additional uplighting feature, if desired.
Supplied complete with standard high efficiency driver, but can also be specified with dimmable drivers to suit any dimming protocol. EM versions also available, with all components located within the spun aluminium rear gear housing for ease of installation.
TECHNICAL INFORMATION
| Range Name: | Sovereign Round Suspended Panel |
| Range No. | S18636 / S18637 / S18638 / S18639 |
| Application: | Interior Ceiling |
| Lamp: | Side Emitting SMD LED |
| Lamp Life: | 50,000 hours |
| CRI: | >80 |
| Voltage: | 240V |
| Class: | Class 1 |
| Driver: | Integrated High Efficiency |
| IP Rating: | IP40 |
| Body material: | Spun Aluminium |
| Body finish: | Polyester Powder Coated |
| Diffuser: | Soft Lens |
| Weight: | 3.5kg - 6kg |
| LED Warranty: | 5 years |
LIGHT OUTPUT DETAILS
| Size 1 (405mm) | |||
| Col. Temp | Wattage | Lumen Output | LED Efficacy |
| 3000K | 30W | 2500lm | 83lm/W |
| 4000K | 30W | 2700lm | 90lm/W |
| Size 2 (493mm) | |||
| Col. Temp | Wattage | Lumen Output | LED Efficacy |
| 3000K | 40W | 3600lm | 90lm/W |
| 4000K | 40W | 3800lm | 95lm/W |
| Size 3 (600mm) | |||
| Col. Temp | Wattage | Lumen Output | LED Efficacy |
| 3000K | 48W | 4500lm | 94lm/W |
| 4000K | 48W | 4800lm | 100lm/W |
| Size 4 (780mm) | |||
| Col. Temp | Wattage | Lumen Output | LED Efficacy |
| 3000K | 60W | 5300lm | 89lm/W |
| 4000K | 60W | 5400lm | 90lm/W |
DIMENSIONS (mm)
CUSTOMISATION OPTIONS
| Version | Ø405mm / Ø493mm / Ø600mm / Ø780mm |
| Body Colour | White / Silver / Black / other BS/RAL colours |
| Col. Temp: | 3000K / 4000K |
| Driver: | Dimmable and EM version available |
| Additional | 1000mm & 1200mm versions also available |
BUILD YOUR PRODUCT
To generate a variant-specific order code, select an option in each of the following categories.
Versions
Housing Colour
Colour temp
Emergency
Power Supply
Product code:
Product Details:
