Suspended Ring

Suspended LED Pendant

Cat. No: S18660 | S18661 | S18662 | S18663

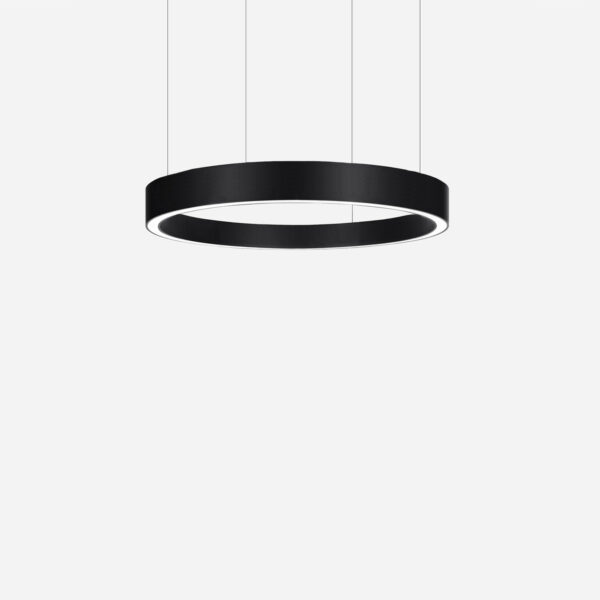

The Sovereign Suspended Ring is a sleek new range of suspended downlights and up/downlights. Housed in extruded aluminium, these high quality luminaires are matched by their beautifully uniform emission, utilising the latest LED technology.

Available in four sizes, all versions include dimmable and emergency options, various housing colours and colour temperatures.

TECHNICAL INFORMATION

Range Name:Sovereign Suspended Ring
Range No.S18660
Application:Interior Ceiling
Light Source:OSRAM 2835
Lamp Life:50,000 hours
Colouring Rendering:Ra>80
Voltage:240V
Protection Rating:Class 1
Driver:Integrated high-efficiency
IP Rating:IP20
Housing Material:Extruded Aluminium
Material FinishPowder Coated
Diffuser:Opal PMMA
Weight:5kg-15kg
LED Warranty:5 Years

DOWNLOADS

LIGHT OUTPUT DETAILS

DIRECT
Size Col Temp. Wattage Lumen Output LED Efficacy
Size 1 3000K 38W 3391lm 89lm/W
Size 1 4000K 38W 3391lm 89lm/W
Size 2 3000K 63W 5652lm 89lm/W
Size 2 4000K 63W 5652lm 89lm/W
Size 3 3000K 75W 6782lm 90lm/W
Size 3 4000K 75W 6782lm 90lm/W
Size 4 3000K 94W 8478lm 90lm/W
Size 4 4000K 94W 8478lm 90lm/W

DIRECT & INDIRECT
Size Col Temp. Wattage Lumen Output LED Efficacy
Size 1 3000K 38W + 19W 3391lm + 1695lm 89lm/W
Size 1 4000K 38W + 19W 3391lm + 1695lm 89lm/W
Size 2 3000K 63W + 31.5W 5652lm + 2826lm 89lm/W
Size 2 4000K 63W + 31.5W 5652lm + 2826lm 89lm/W
Size 3 3000K 75W + 37.5W 6782lm + 3391lm 90lm/W
Size 3 4000K 75W + 37.5W 6782lm + 3391lm 90lm/W
Size 4 3000K 94W + 47W 8478lm + 4286lm 90lm/W
Size 4 4000K 94W + 47W 8478lm + 4286lm 90lm/W

DIMENSIONS (mm)

CUSTOMISATION OPTIONS

Size:Dia. - 600mm / 900mm / 1200mm / 1500mm
Housing Colour:White / Black / Silver
Col. Temp:3000K / 4000K
Output:38W / 63W / 75W / 94W
Emergency:Emergency Options
Dimmability:Various Options (see order code)

BUILD YOUR PRODUCT

To generate a variant-specific order code, select an option in each of the following categories.

Range

Housing Colour

Col. Temp & Output

Emergency

Power Supply

Product code:

Product Details:

For more customisation options, get in touch with our Sales Team. We are always happy to discuss and develop additional variants for clients.
