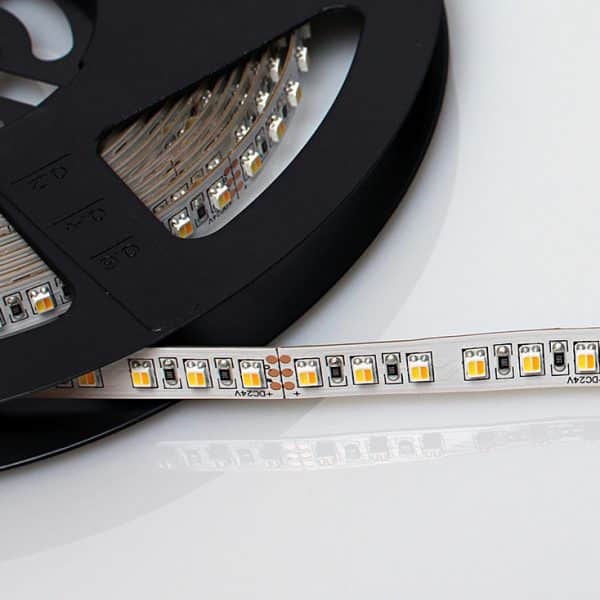

Tape Only

Linear System

Cat. No: S18350 | S18350A | S18350D | S18350DH | S18350L | S18350N | S18350NX | S18350U | S18350W | S18350X | S18351 | S18352 | S18352X | S18353 | S18353A | S18353N | S18353P | S18353W | S18360 | S18361 | S18362 | S18363 | S98895 | S98896 | S98897

While we always recommend housing our LED tape in one of our Sovereign profile systems, we do also offer any of our LED tape separately. Below is a list of our most popular CCT, RGB and fixed LED tapes, with many more available on request.

Build Your Linear System

To ensure each system is built and installed to our exacting standards, Commercial Lighting does all the hard work for you. Not only do we design and assemble each individual linear system in our factory, we make sure the most appropriate profile, light source and drivers are chosen for your project.

Below is a selection of our most popular light source options for this profile. Our experienced Sales team are happy to help you choose the best selection for your lighting solution.

LIGHT SOURCE OPTIONS

Variable Options
CAT NO. WATTAGE COL. TEMP VOLTAGE LEDS/mtr WIDTH DATASHEET
S18350A 19.2W/mtr CCT (2500-7000K) 24V DC 120 LEDs 10mm DOWNLOAD →
S18353A 19.2W/mtr RGB + Amber 24V DC 60 LEDs 12mm DOWNLOAD →
S18353P 19.2W/mtr RGB + 6000K 24V DC 60 LEDs 12mm DOWNLOAD →
S18353N 19.2W/mtr RGB + 4000K 24V DC 60 LEDs 12mm DOWNLOAD
S18353W 19.2W/mtr RGB + 2500K 24V DC 60 LEDs 12mm DOWNLOAD →
S18353 14.4W/mtr RGB 12V DC 60 LEDs 12mm DOWNLOAD →

Fixed White Options
CAT NO. WATTAGE COL. TEMP LUMEN OUTPUT VOLTAGE LEDS/mtr WIDTH DATASHEET
S98895 9.6W/mtr 2700K 840lm/mtr 24V DC 120 LEDs 8mm DOWNLOAD →
S98896 9.6W/mtr 3000K 840lm/mtr 24V DC 120 LEDs 8mm DOWNLOAD →
S98897 9.6W/mtr 4000K 840lm/mtr 24V DC 120 LEDs 8mm DOWNLOAD →
S18350UL 4.8W/mtr 3000-3500K 360lm/mtr 12V DC 60 LEDs 8mm DOWNLOAD →
S18350L 7.2W/mtr 3000-3500K 540lm/mtr 12V DC 30 LEDs 10mm DOWNLOAD →
S18350W 14.4W/mtr 2700K 1000lm/mtr 12V DC 60 LEDs 12mm DOWNLOAD →
S18350 14.4W/mtr 2800-3200K 1050lm/mtr 12V DC 60 LEDs 12mm DOWNLOAD →
S18350N 14.4W/mtr 4000-4500K 1100lm/mtr 12V DC 60 LEDs 12mm DOWNLOAD →
S18351 14.4W/mtr 5500-6500K 1150lm/mtr 12V DC 60 LEDs 12mm DOWNLOAD →
S18352 14.4W/mtr 6500-7500K 1200lm/mtr 12V DC 60 LEDs 12mm DOWNLOAD →
S18350X 22W/mtr 2900-3100K 2300lm/mtr 24V DC 126 LEDs 12mm DOWNLOAD →
S18350NX 22W/mtr 4000-4500K 2400lm/mtr 24V DC 126 LEDs 12mm DOWNLOAD →
S18352X 22W/mtr 6000-7000K 2500lm/mtr 24V DC 126 LEDs 12mm DOWNLOAD →
S18350D 19.2W/mtr 3000K 1200lm/mtr 24V DC 120 LEDs 16mm DOWNLOAD →
S18350DH 28.8W/mtr 3000K 2100lm/mtr 24V DC 120 LEDs 20mm DOWNLOAD →

Fixed Colour Options
CAT NO. WATTAGE COL. TEMP VOLTAGE LEDS/mtr WIDTH DATASHEET
S18360 14.4W/mtr Blue (465-470nm) 12V DC 60 LEDs 12mm DOWNLOAD →
S18361 14.4W/mtr Amber (590nm) 12V DC 60 LEDs 12mm DOWNLOAD →
S18362 14.4Wmtr Red (620-625nm) 12V DC 60 LEDs 12mm DOWNLOAD →
S18363 14.4W/mtr Green 520-525nm 12V DC 60 LEDs 12mm DOWNLOAD

CONTROLLERS

We offer a wide range of options for dimming and colour control - from wall-mounted fixtures and hand-held remotes to wireless apps for SMART devices.  Talk to our Sales team to find out the best choices for your linear system.

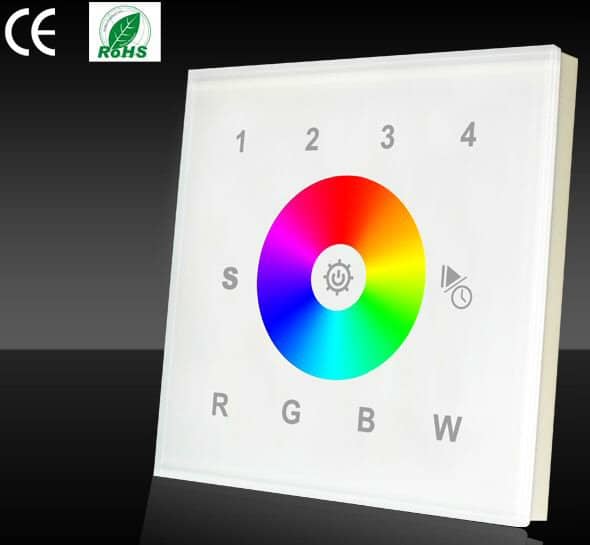

DMX Wall Control Panel

Catalogue no.:  98095/DMX

Wall Mounted Adjustable Colour Changer

Catalogue no.:  98095/CCTW

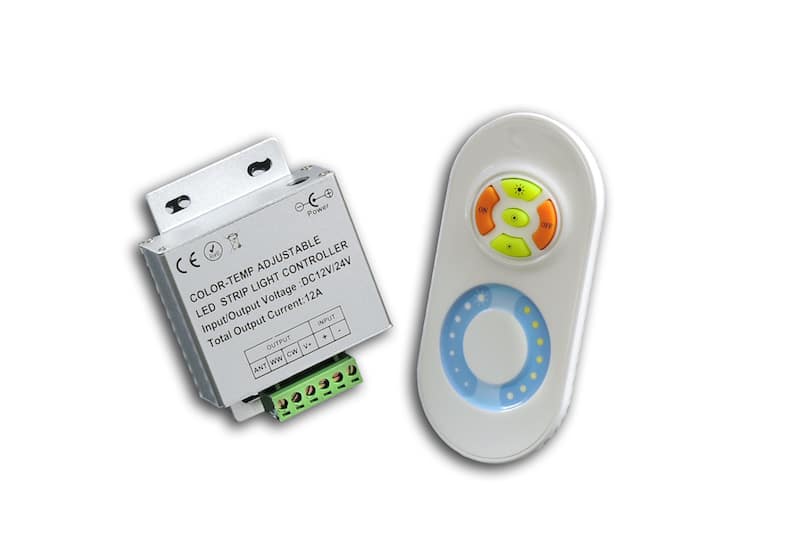

Adjustable Colour Controller with Hand Remote

Catalogue no.:  98095/CCTR
