Cariboni
Theama R12
Floodlight
Light Source
LED
Colour Temperature
4000K
Mounting
Aluminium brackets
Application
Sports & Large Areas
Housing
Die-cast aluminium
1 / 4
Overview
Theama combines compactness, lightness and performance. Versatile, simple and quick to install, it can be equipped with a range of optics suitable for sports lighting and large surface horizontal and vertical surfaces.
For more info including ordering codes, please visit the Cariboni Product Page
Downloads
| Product Overview (PDF) | > |
| Cariboni Floodlights Brochure (PDF) | > |

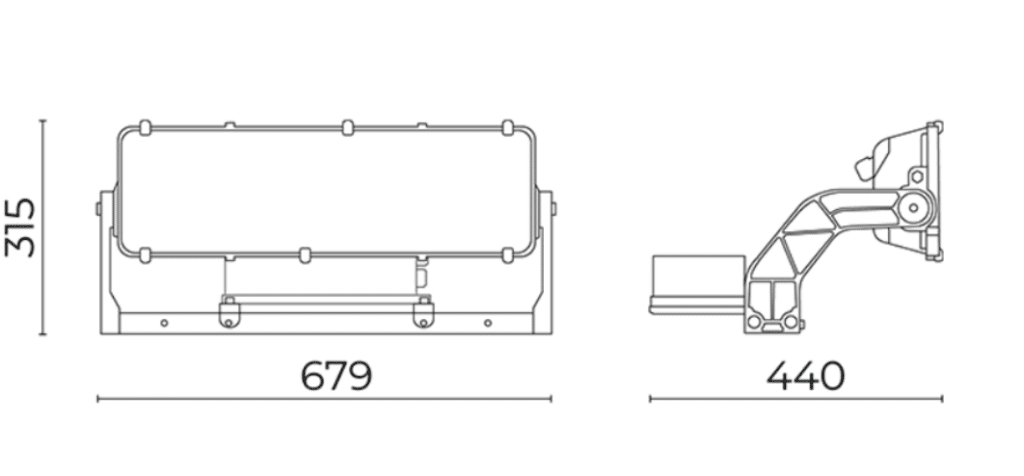

Dimensions
Technical Details
| Lamp: | LED |
| Driver lifetime: | 100.000h @Ta 25°C |
| Wattage: | 248W - 558W |
| Protection type: | IP66 |
| Beam: | LT-63 Asymmetric beam |
| Protection Class: | Class I |
| Impact Resistance: | IK09 |
| CRI | >70 |
| Marks and Certifications: | ENEC / CE |
| Tilt: | -180° +180° |
Housing Specifications
| Housing Material | Die-cast aluminium alloy UNI EN AB 44300 |
| Finish | Phospho-chromatation treated & polyester powder-coated |
| Optics | High-transparency PMMA |
| Dimensions | H315mm x W679mm |
| Weight | 13.7KG |
| Mounting | Aluminium brackets |
Light Output Details
| Col Temp. | Wattage | Lumen Output |
| 4000K | 248W | 41725lm |
| 4000K | 325W | 52165lm |
| 4000K | 364W | 57145lm |
| 4000K | 403W | 61965lm |
| 4000K | 438W | 66625lm |
| 4000K | 478W | 71125lm |
| 4000K | 518W | 75465lm |
| 4000K | 558W | 79640lm |
