Universal Panel

Diffused LED Panel

Cat. No: S18333

An ultra slim and highly efficient LED panel using the latest 2835 SMD LED’s and high quality optical lens to provide exceptionally even illumination. UNIVERSAL is a perfect replacement for fluorescent modular luminaires of a much higher wattage, thus creating the opportunity for even greater energy savings.

Supplied c/w high efficiency remote power supply with simple plug & play connection. May be specified with dimmable driver to suit DALI, 1-10V etc and can also be supplied with remote emergency pack.

Ultra slim frame in anodised extruded aluminium, powder coated in white finish as standard.

TECHNICAL INFORMATION

Range Name:Sovereign Universal LED Panel
Range Number:S18333
Lamp:2835 SMD LED modules
Body Material:Aluminium
Body Finish:Powder Coated
Driver:Integrated High Efficiency
Illumination:Direct & Indirect
Dimensions:595mm x 595mm x 10mm

PRODUCT IMAGES

LIGHT OUTPUT DETAILS

Col. Temp Wattage Lumen Output LED efficacy
4200K 36W 3600lm 100lm/W

CUSTOMISATION OPTIONS

Bezel Colour:White / Black / Silver / or BS/RAL colours
Driver:Dimmable and EM versions available
Emergency:Emergency options available
Mounting:Can be supplied with surface mounting frame

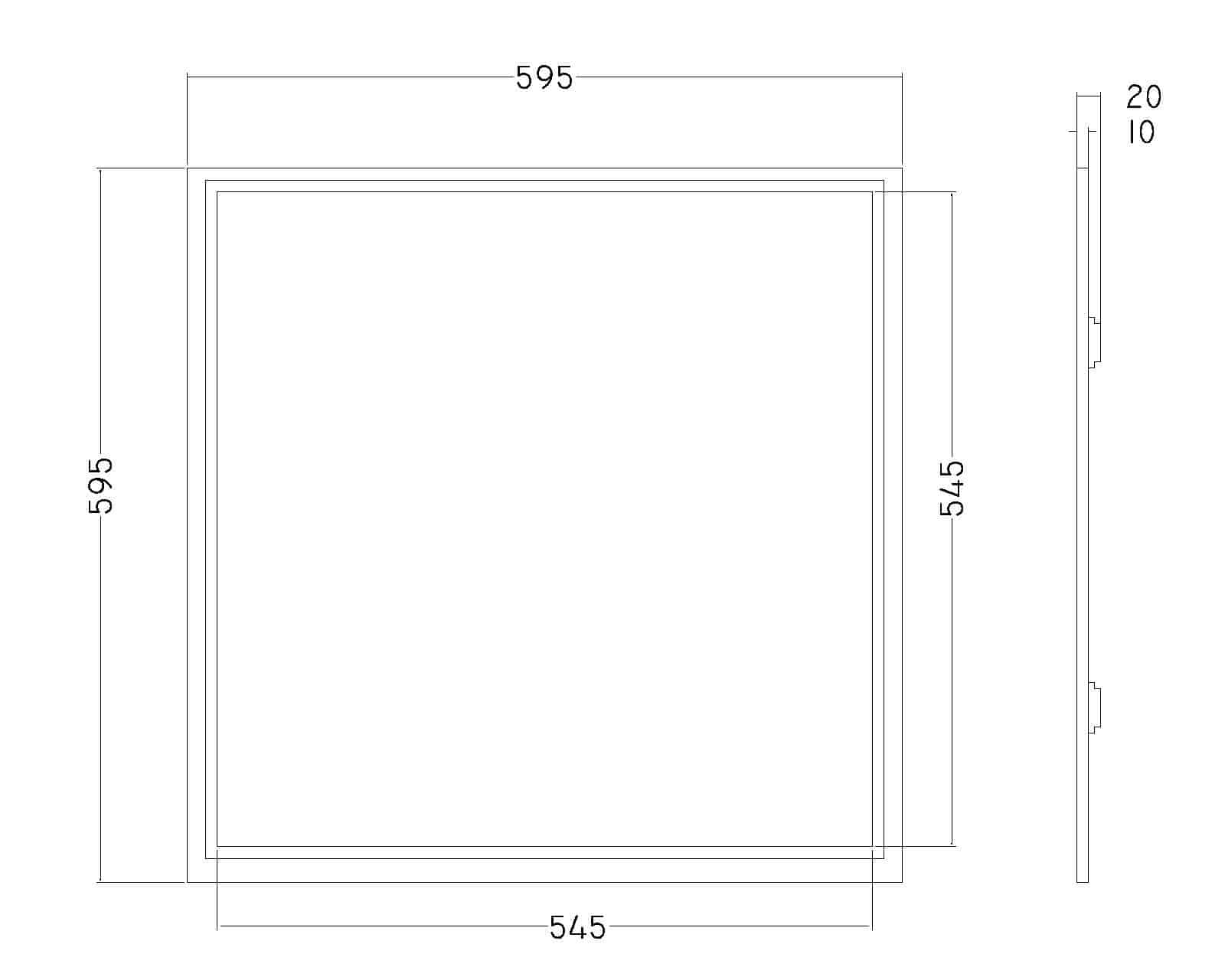

DIMENSIONS (mm)

BUILD YOUR PRODUCT

To generate a variant-specific order code, select an option in each of the following categories.

Range

Bezel Colour

Col. Temp.

Emergency (remote)

Power Supply

Product code:

Product Details:

For more customisation options, get in touch with our Sales Team. We are always happy to discuss and develop additional variants for clients.
