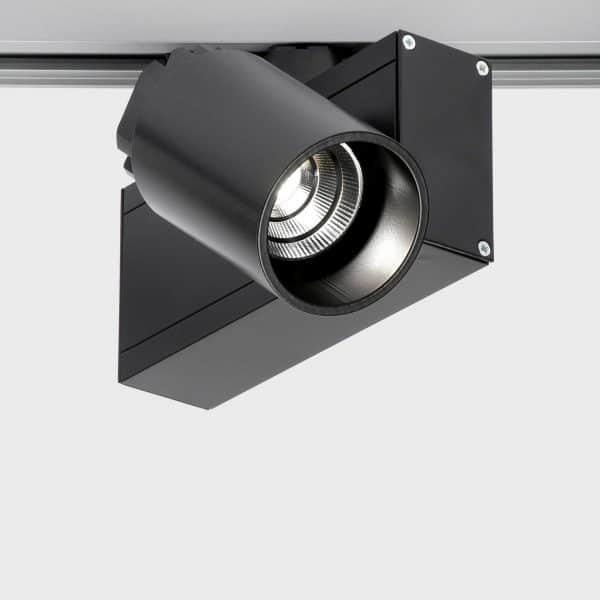

16W Round Shallow
LED Projector
Light Source
Tridonic SLE LED
Colour Temperature
3000K / 4000K
Mounting
Surface / Tracking mounting
Application
Interior projection
Housing
Extruded Aluminium
1 / 7
Overview
Cat. No: S18310
Updated to the very latest Tridonic SLE LED modules, this highly successful spotlight range now offers even higher efficiency with enhanced performance and particularly low energy consumption, and now with a choice of body styles. Manufactured in our own Hampshire factory to exacting standards, this Round Shallow Spotlight range uses high quality extruded aluminium profile with machined heatsink for optimum heat dissipation and longevity. Integral high performance LED driver fitted as standard. Available with 3-circuit track adaptor or ceiling plate. Also available with optional built-in dimming control making it an ideal choice for museums, galleries etc. Standard colours include black, white and silver, with other BS/RAL colours available to order.
A full range of Electronic LED Spot accessories is also available for the Round Shallow range. Click here for more details. For full track accessories, click here.
Technical Details
| Lamp: | Tridonic SLE LED |
| Lamp Life: | 50,000 hours |
| CRI: | >90 |
| Output: | 15.8W |
| Voltage: | 240V |
| Electrical Class: | Class I |
| Driver: | Integrated high-efficiency |
| IP Rating: | IP40 |
| LED Warranty: | 5 years |
Housing Specifications
| Housing Material | Extruded Aluminium |
| Finish | Powder Coated |
| Optics | Reflector |

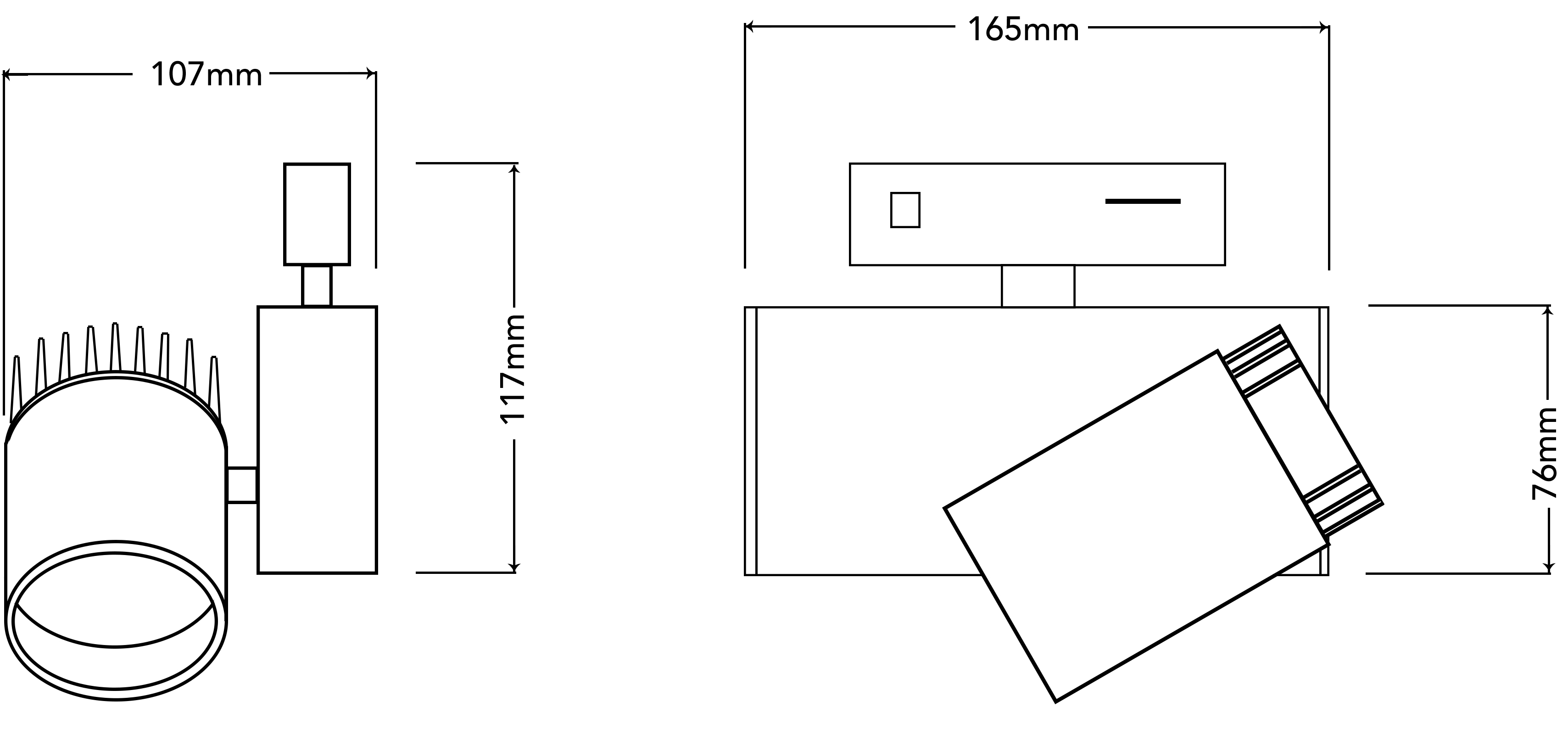

| Dimensions | 165mm x 76mm |
| Weight | 1.3KG |
| Mounting | Surface / Tracking mounting |
Light Output Details
| Col. Temp | Wattage | Lumen Output | LED Efficacy |
| 3000K | 9.4W | 1346lm | 143lm/W |
| 4000K | 9.4W | 1423lm | 151lm/W |
| 3000K | 13.6W | 1824lm | 134lm/W |
| 4000K | 13.6W | 1928lm | 142lm/W |
| 3000K | 15.8W | 2059lm | 131lm/W |
| 4000K | 15.8W | 2176lm | 138lm/W |
Build Your Product
Range
Beam Angle
Mounting
Housing
Temp & Output
POWER SUPPLY
Product code:
Product details:
