Home / Sovereign / Interior Projectors / 16W Round Vertical
Sovereign

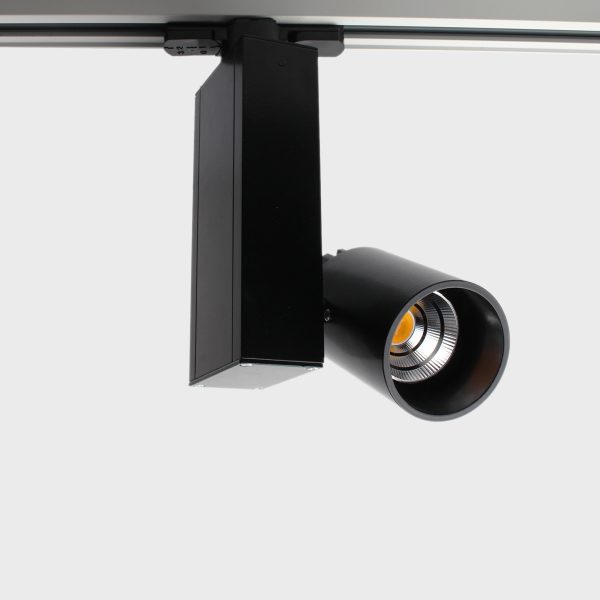

16W Round Vertical

LED Projector

Key Features

Light Source

Tridonic SLE

Colour Temperature

3000K / 4000K

Mounting

Surface / Tracking mounting

Application

Interior projection

Housing

Extruded Aluminium

IP40 - Protected from tools and small wires greater than 1 millimeter. UK Conformity Assessed Class I - Luminaire with basic insulation. Protection: connection of the accessible metal parts to the earthing protection. Made in Britain

Overview

Cat. No: S18311

Updated to the very latest Tridonic SLE LED modules, this highly successful spotlight range now offers even higher efficiency with enhanced performance and particularly low energy consumption, and now with choice of body styles. Manufactured in our own Hampshire factory to exacting standards, this Round Vertical Spotlight range uses high quality extruded aluminium profile with machined heatsink for optimum heat dissipation and longevity. Integral high performance LED driver fitted as standard.

Available with 3-circuit track adaptor or ceiling plate (click here for track accessories). Also available with optional built in dimming control making it an ideal choice for museums, galleries etc. Standard colours include black, white and silver, with other BS/RAL colours available to order. Our full range of Electronic LED Spot accessories are also availble for the Round Shallow range. Click here for more details on our range of accessories.

Downloads


TECHNICAL OVERVIEW (PDF) >
DRAWING (JPG) >
PHOTOMETRY (LDT) >
SOVEREIGN PROJECTOR BROCHURE (PDF) >

Dimensions


Technical Details


Housing Specifications


Light Output Details


Col. Temp Wattage Lumen Output LED Efficacy
3000K 9.4W 1346lm 143lm/W
4000K 9.4W 1423lm 151lm/W
3000K 13.6W 1824lm 134lm/W
4000K 13.6W 1928lm 142lm/W
3000K 15.8W 2059lm 131lm/W
4000K 15.8W 2176lm 138lm/W

Build Your Product

Range

X

Beam Angle

X
X
X

Mounting

X
X

Housing

X
X
X
X

Temp & Output

X
X

POWER SUPPLY

X
X
X
X
X
X
X
X

Product code:
Product details:

Enquire about this product
