Home / Sovereign / Interior Wall Lights / Ecoblade Wedge Uplighter 900mm
Sovereign

Ecoblade Wedge Uplighter 900mm

Wall Mounted Uplighter

Key Features

Light Source

Tridonic LLE LED

Colour Temperature

3000K / 4000K

Mounting

Surface mounting

Application

Interior Wall

Housing

Extruded Aluminium

IP40 - Protected from tools and small wires greater than 1 millimeter. Class I - Luminaire with basic insulation. Protection: connection of the accessible metal parts to the earthing protection. UK Conformity Assessed Made in Britain 5 Year Guarantee

Overview

Cat. No: S18540

An exceptionally high performance range of top quality wall mounted uplighters, specifically designed around the latest high efficiency Tridonic LLE modules, offering superb performance of up to 154lm/W. Available in a range of styles including uplight only or up/downlight.

Main housing produced from extruded aluminium with integral passive thermal management. All versions supplied with Nano/Microprism diffuser for optimum light transmission and visual comfort. Finished in textured polyester powder coat with standard finishes in white, black and silver, with other BS/RAL colours available to order. Bespoke lengths can be produced to client specification.

NOTE: Some dimmable versions may require longer housing to accomodate driver dimensions.

Downloads


OVERVIEW (PDF) >
INSTALLATION GUIDE (PDF) >
TECHNICAL DRAWING (JPG) >
PHOTOMETRY (LDT) >

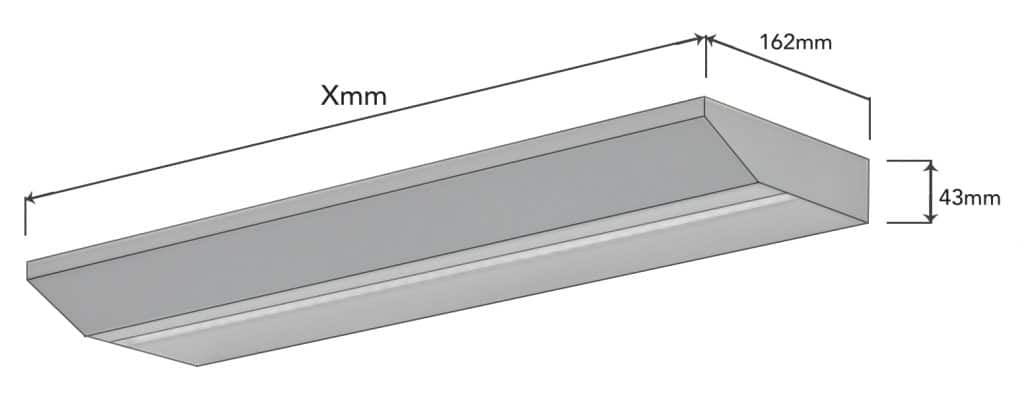

Dimensions


Technical Details


Housing Specifications


Light Output Details


Uplighter
Length Col Temp. Wattage Lumen Output LED Efficacy
300mm 3000K 13W 2030lm 156lm/W
300mm 4000K 13W 2120lm 163lm/W
400mm 3000K 13W 2030lm 156lm/W
400mm 4000K 13W 2120lm 163lm/W
600mm 3000K 26W 4050lm 156lm/W
600mm 4000K 26W 4240lm 163lm/W
900mm 3000K 39W 6080lm 156lm/W
900mm 4000K 39W 6360lm 163lm/W



Up/Downlight
Length Col Temp. Wattage Lumen Output LED Efficacy
400mm 3000K 20W 3043lm 152lm/W
400mm 4000K 20W 3180lm 159lm/W
600mm 3000K 33W 5063lm 153lm/W
600mm 4000K 33W 5300lm 161lm/W
900mm 3000K 52W 8105lm 156lm/W
900mm 4000K 52W 8479lm 163lm/W

Build Your Product

Range

X

Housing Colour

X
X
X

Version

X
X
X
X

Emergency

X
X
X

Power Supply

X
X
X
X
X
X
X

Product code:
Product details:

Enquire about this product
