Ecoblade Wedge Free Standing
Cat. No: S18740
An exceptionally high performance range of top quality free standing uplighters, specifically designed around the latest high efficiency Tridonic LLE modules, offering superb performance of up to 154lm/W. Available in a range of styles including uplight only or up/downlight.
Main housing produced from extruded aluminium with integral passive thermal management. All versions supplied with Nano/Microprism diffuser for optimum light transmission and visual comfort. Finished in textured polyester powder coat with standard finishes in white, black and silver, with other BS/RAL colours available to order.
Supplied complete with switch, mains lead and moulded 13A plug for total ease of installation.
TECHNICAL INFORMATION
| Range Name: | Sovereign Ecoblade Wedge Free Standing Uplighter |
| Range No. | S18740 |
| Application: | Interior Floor |
| Lamp: | TRIDONIC / OSRAM LLE modules |
| Lamp Life: | 50,000 hours |
| CRI: | >80 |
| Voltage: | 240V |
| Protection Class | Class 1 |
| Protection Rating: | IP40 |
| Driver: | Integrated high-efficiency |
| Cooling: | Passive Heatsink |
| Housing Material: | Extruded Aluminium |
| Housing Finish: | Textured Polyester Powder Coated |
| LED Warranty: | 5 Years |
DOWNLOADS
LIGHT OUTPUT DETAILS
| Uplighter | |||
|---|---|---|---|
| Col Temp. | Wattage | Lumen Output | LED Efficacy |
| 3000K | 52W | 8100lm | 156lm/W |
| 4000K | 52W | 8500lm | 163lm/W |
| Up/Downlight | |||
|---|---|---|---|
| Col Temp. | Wattage | Lumen Output | LED Efficacy |
| 3000K | 66W | 10126lm | 153lm/W |
| 4000K | 66W | 10600lm | 161lm/W |

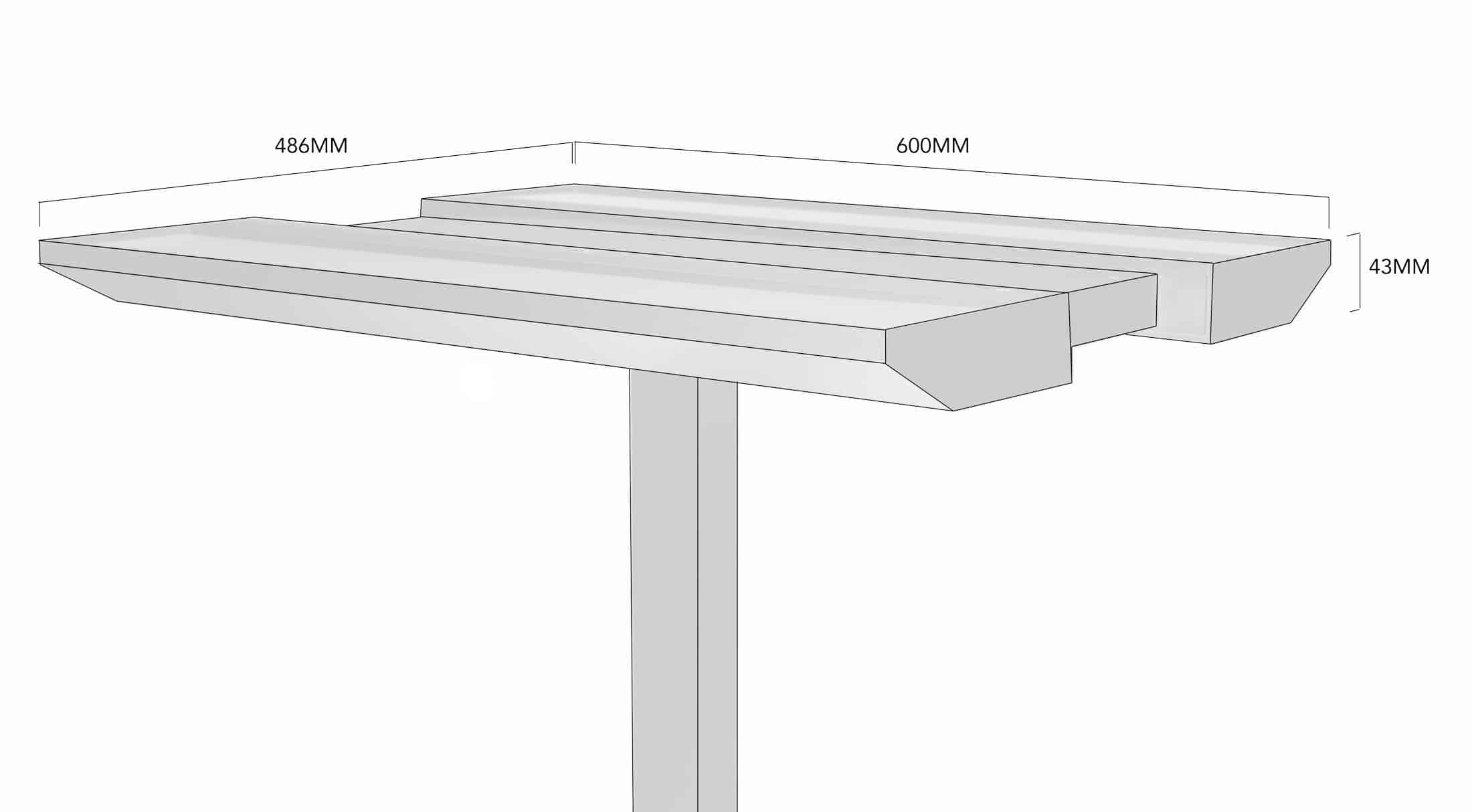

DIMENSIONS (mm)
CUSTOMISATION OPTIONS
| BODY COLOUR: | White / Black / Silver |
| COL. TEMP: | 3000K / 4000K |
| POWER SUPPLY: | Non-Dimming / Dimmable options |
| DRIVER: | Emergency / Non-Emergency |
