Meyer
Ecospot Mini
Floodlight
Light Source
LED
Colour Temperature
3000K / 4000K
Mounting
with mounting bracket
Application
Exterior floodlighting
Housing
Die-cast aluminium
1 / 3
Overview
Cat. No: M8980
Ecospot is a LED floodlight series with extremely narrow beam light distribution and very little light spill. The floodlights are available in two sizes – Ecospot Mini for highlighting architectural details, Ecospot for accent lighting over longer distances.
Downloads
| Range Overview (PDF) | > |

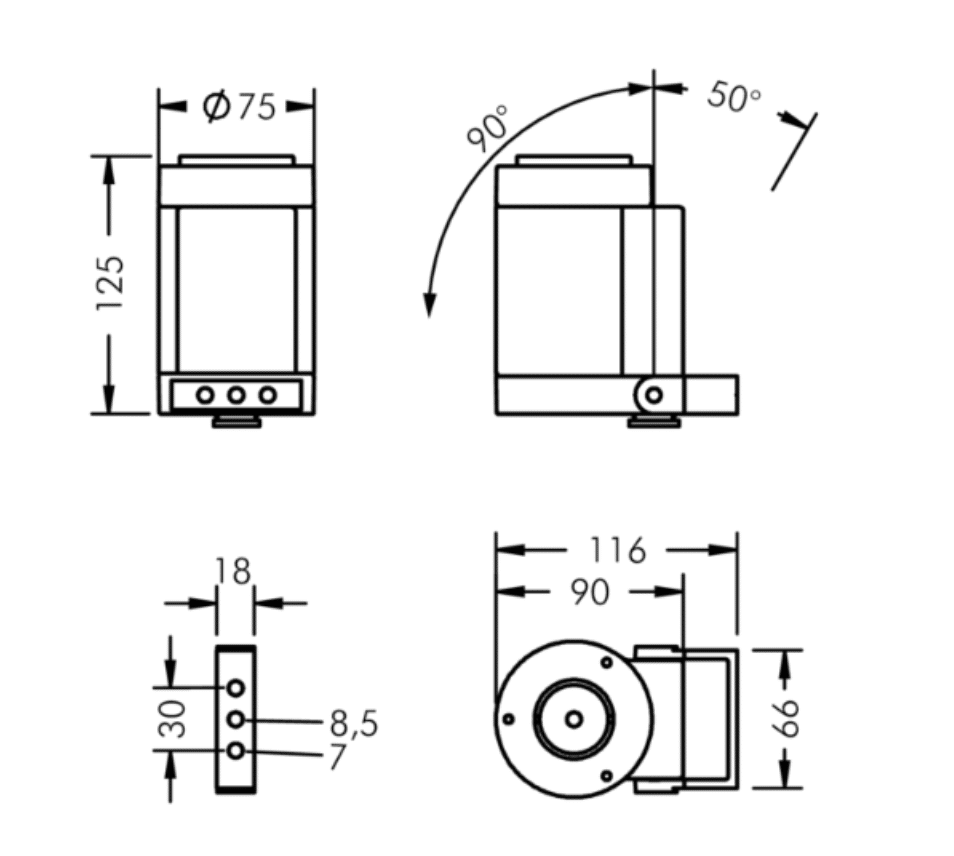

Dimensions
Technical Details
| Lamp: | LED |
| Power | 3W |
| Lamp Life: | 50,000 hours |
| Colour Rendering Index | CRI > 80 |
| Protection type: | IP65 |
| Protection Class: | Class 1 |
| Impact Resistance: | IK08 |
| Tilt Range: | 140º |
Housing Specifications
| Housing Material | Die-cast Aluminium |
| Finish | Powder Coated |
| Optics | Tempered anti-reflective glass |
| Dimensions | Ø75mm x 125mm |
| Weight | 0.8KG |
| Mounting | with mounting bracket |
Light Output Details
| Beam | Col Temp. | Wattage | Lumen Output |
| Narrow | 3000K | 3W | 137lm |
| Narrow | 4000K | 3W | 157lm |
| Medium Wide | 3000K | 3W | 142lm |
| Medium Wide | 4000K | 3W | 155lm |
| Linear, vertical / horizontal | 3000K | 3W | 142lm |
| Linear, vertical / horizontal | 4000K | 3W | 155lm |
