Meyer
Monospot Mini
Floodlight
Light Source
LED
Colour Temperature
3000K / 4000K
Mounting
with mounting bracket
Application
Exterior floodlighting
Housing
Die-cast aluminium
1 / 3
Overview
Cat. No: M8900
Monospot is a new floodlight series with innovative technology and design. It comes in 4 sizes with varying wattages. In addition to a wide range of fixed light distributions, the Monospot 1 is available as either a surface mounted of pole top luminaire.
Downloads
| Range Overview (PDF) | > |

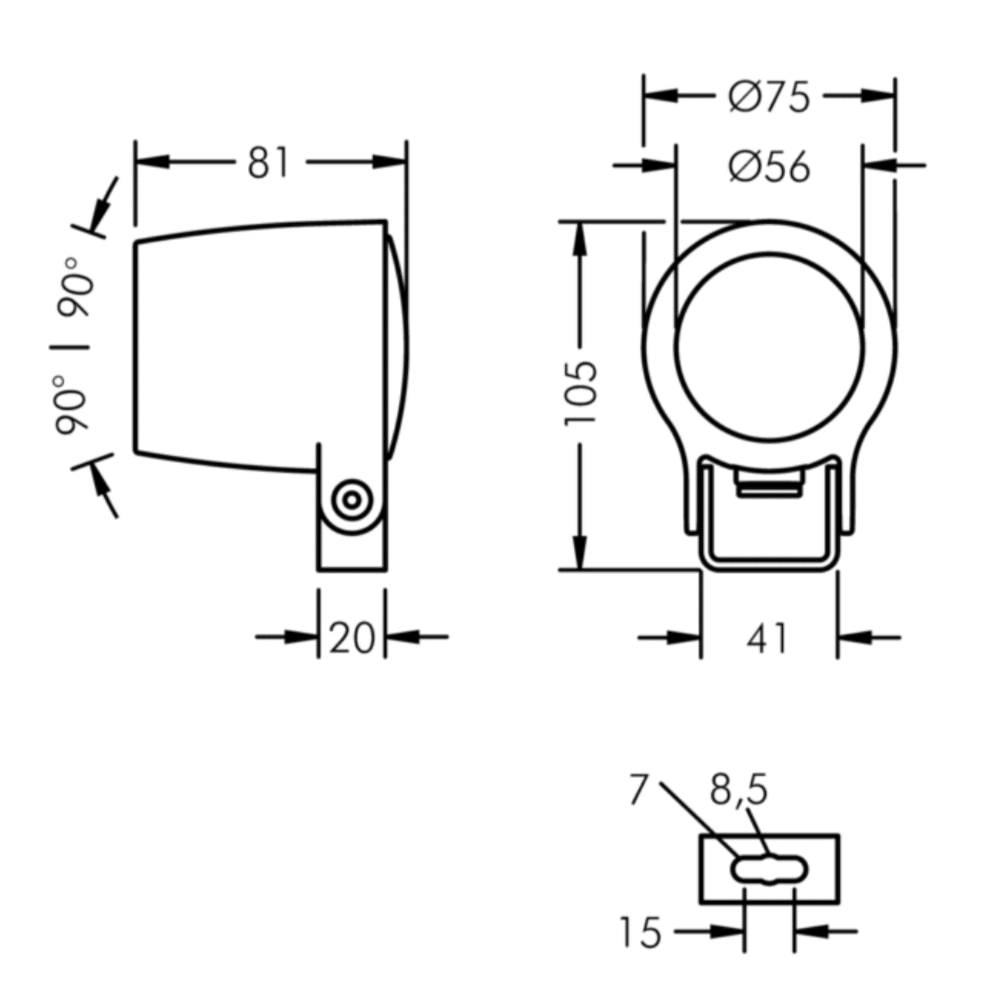

Dimensions
Technical Details
| Lamp: | LED |
| Power | 3W |
| Lamp Life: | 50,000 hours |
| Colour Rendering Index | CRI > 80 |
| Protection type: | IP67 |
| Protection Class: | Class 1 |
| Impact Resistance: | IK08 |
| Tilt Range: | 180º |
Housing Specifications
| Housing Material | Die-cast Aluminium |
| Finish | Powder Coated |
| Optics | Tempered anti-reflective glass |
| Dimensions | Ø100mm x 113mm |
| Weight | 1KG |
| Mounting | with mounting bracket |
Light Output Details
| Beam | Col Temp. | Wattage | Lumen Output |
| Narrow 4º | 3000K | 3W | 128lm |
| Narrow 4º | 4000K | 3W | 136lm |
| Medium Wide 13º | 3000K | 3W | 130lm |
| Medium Wide 13º | 4000K | 3W | 142lm |
| Linear, vertical / horizontal | 3000K | 3W | 130lm |
| Linear, vertical / horizontal | 4000K | 3W | 140lm |
