Globe Pendant 280mm

Suspended LED Pendant

Key Features

Light Source

Tridonic LLE + CLE

Colour Temperature

3000K / 4000K

Mounting

Wire Suspension

Application

Interior Ceiling

Housing

Polyethylene / aluminium

Enquire Build your product

Enquire

Build your product

1 / 5

Overview

Cat. No: S98674

This sleek and minimal opal LED luminaire boasts a multi facetted geartray design, ensuring optimum uniformity throughout while maintaining the pure globe form. The Sovereign Globe Opal pendant is available in three sizes and uses the latest in LED technology for optimum efficiency and illumination.

Supplied c/w adjustable 3mtr wire suspension system.

Downloads

OVERVIEW (PDF)	>
TECHNICAL DRAWING (JPG)	>
Photometry (LDT)	>

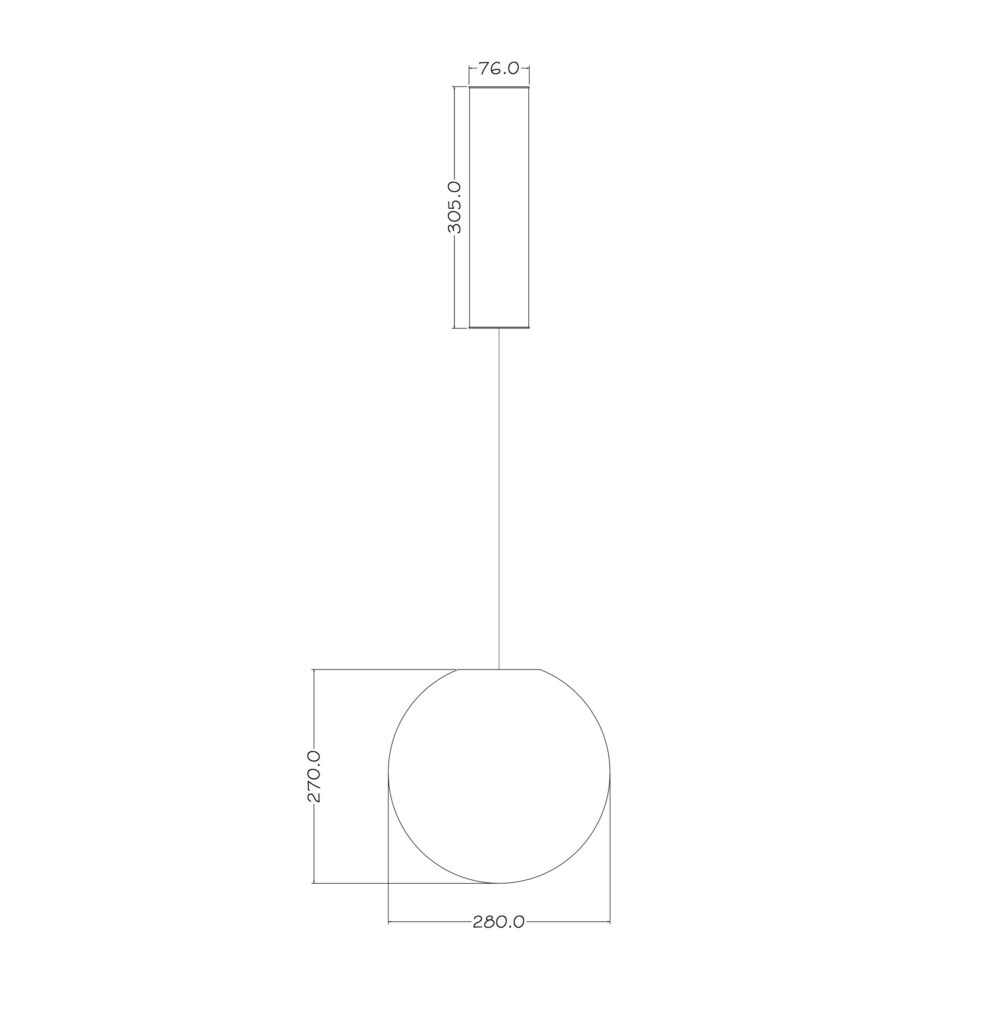

Dimensions

Technical Details

Lamp:	Tridonic LLE LED + CLE
Lamp Life:	50,000 hours
CRI:	>90
Voltage:	240V
Wattage:	22W
Lumens:	3166lm / 3396lm
Colour Temp	3000K / 4000K
Efficacy:	144lm/W / 154lm/W
Protection Rating	Class 1
Protection Rating:	IP40
Driver:	Integrated high-efficiency (in ceiling plate)
Cooling:	Passive Heatsink
LED Warranty:	5 Years

Housing Specifications

Housing Material	Polyethylene / aluminium
Finish	Matt
Optics	Opal diffuser
Dimensions	Ø280mm
Weight	2.5kg
Mounting	Wire Suspension

Light Output Details

Size	Col Temp.	Wattage	Lumen Output	LED Efficacy
Size 0	3000K	5W	836lm	167lm/W
Size 0	4000K	5W	836lm	167lm/W
Size 1	3000K	22W	3166lm	144lm/W
Size 1	4000K	22W	3396lm	154lm/W
Size 2	3000K	35W	4840lm	138lm/W
Size 2	4000K	35W	5040lm	144lm/W
Size 3	3000K	52W	7530lm	146lm/W
Size 3	4000K	52W	7947lm	153lm/W
