Ecoblade Up/Down Pendant
Suspended LED Pendant
Light Source
Tridonic LLE LED
Colour Temperature
3000K / 4000K
Mounting
Ceiling Plate
Application
Interior Ceiling
Housing
Extruded Aluminium
1 / 2
Overview
Cat No. S18641
A high performance range of LED Pendant uplighters to complement the Sovereign EcoBlade Wall Mounted and Free Standing units. Sharing the same main housing as the wall mounted units, thereby offering a similar range of options including dimmable gear etc.
As with the rest of the Ecoblade range, all versions are fitted with Nano/Microprism top diffuser for optimum light transmission and visual comfort, whilst giving ultimate protection to the LEDs from ingress of foreign objects.
Available as an uplighter or up/downlight. Standard finishes; Textured White, Textured Black, Textured Anthracite and Textured Silver, with other BS/RAL colours available to order. Standard drop length of 600mm, with other lengths available to order.
Downloads
| OVERVIEW PDF | > |
| PHOTOMETRY (LDT) | > |

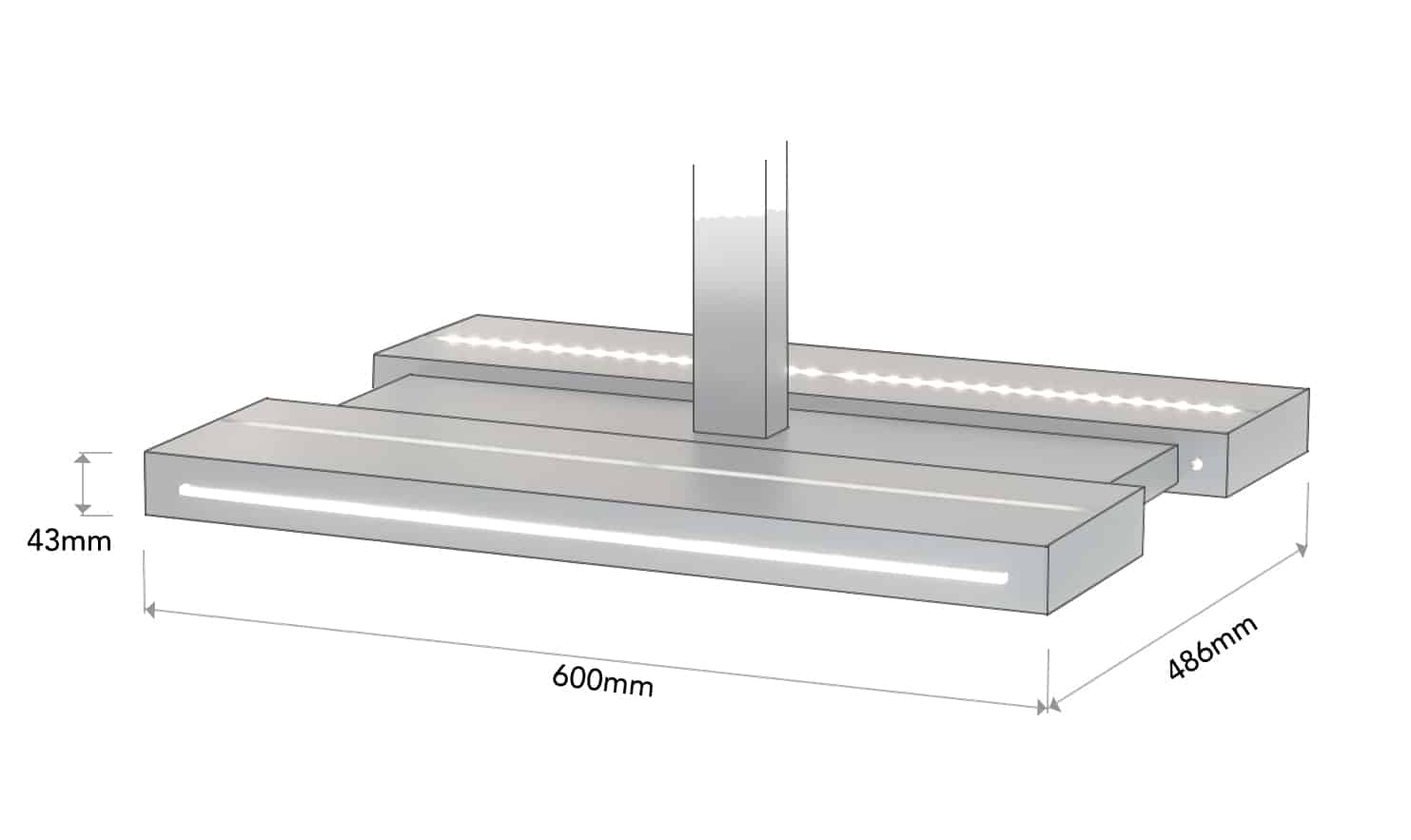

Dimensions
Technical Details
| Lamp: | TRIDONIC LLE MODULES |
| Lamp Life: | 50,000 hours |
| CRI: | >90 |
| Voltage: | 240V |
| Protection Class | Class 1 |
| Protection Rating: | IP40 |
| Driver: | Integrated high-efficiency |
| Cooling: | Passive Heatsink |
| Housing Finish: | Textured Polyester Powder Coated |
| LED Warranty: | 5 Years |
Housing Specifications
| Housing Material | Extruded Aluminium |
| Finish | Textured powder coated |
| Optics | Opal diffuser |
| Dimensions | 486mm x 600mm x 43mm |
| Weight | 11.05KG |
| Mounting | Ceiling Plate |
Light Output Details
| Uplighter | |||
|---|---|---|---|
| Col Temp. | Wattage | Lumen Output | LED Efficacy |
| 3000K | 52W | 8100lm | 156lm/W |
| 4000K | 52W | 8500lm | 163lm/W |
| Up/Downlight | |||
|---|---|---|---|
| Col Temp. | Wattage | Lumen Output | LED Efficacy |
| 3000K | 66W | 10126lm | 153lm/W |
| 4000K | 66W | 10600lm | 161lm/W |
Build Your Product
Range
Housing Colour
Version
Emergency
Power Supply
Product code:
Product details:
