Opal Bowl Pendant
Suspended LED Pendant
Light Source
Tridonic LLE LED
Colour Temperature
3000K / 4000K
Mounting
Chain suspension
Application
Interior Ceiling
Housing
Aluminium
1 / 5
Overview
Cat. No: S99239

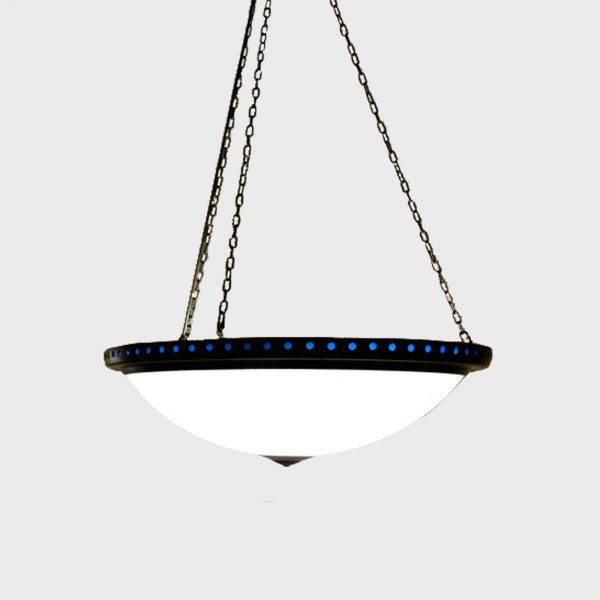

A modern chandelier-style Opal Bowl pendant, providing both direct and indirect illumination. This classic design has been recently updated to the latest LED technology, ensuring the highest quality and efficiency on the market. Optional spill-light facility to edge of upper housing with colour gel option (as shown). Supplied without spill-light facility as standard. Fitted with integral electronic control gear as standard, with dimming & EM versions also available.
Supplied c/w 3-chain suspension system. Metalwork and chains in white powder coat finish as standard with other BS/RAL colours to order.
Downloads
| OVERVIEW (PDF) | > |
| TECHNICAL DRAWING (JPG) | > |
| LDT FILES | > |

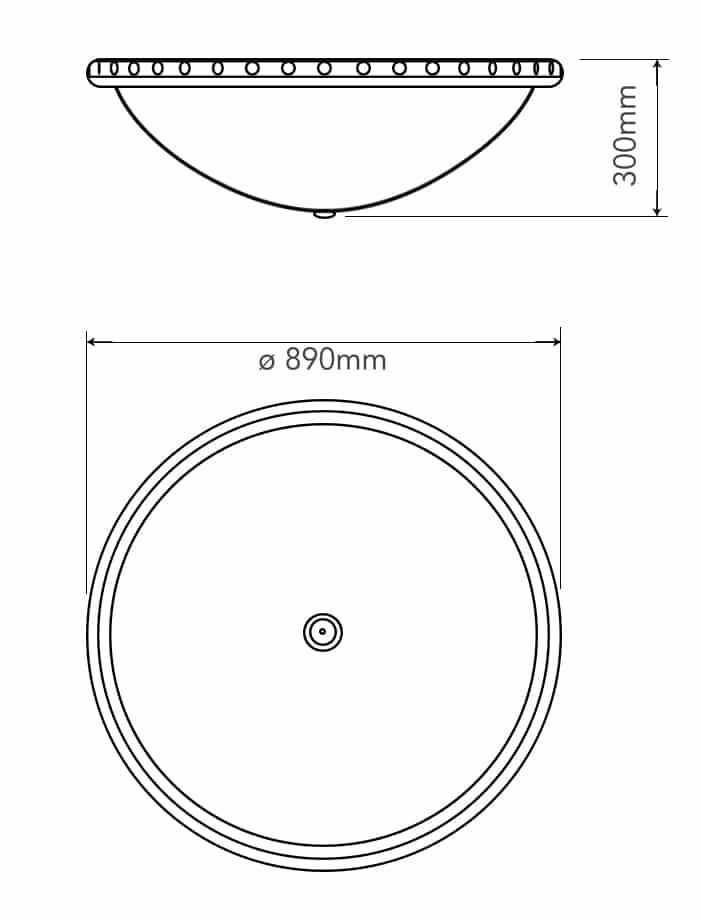

Dimensions
Technical Details
| Lamp: | Tridonic LLE LED module |
| Lamp life: | 50,000 hours |
| CRI: | >80 |
| Voltage: | 240V |
| Protection Class: | Class 1 |
| Protection Rating: | IP40 |
| Driver: | Integrated high-efficiency |
| Diffuser: | Opal Acrylic |
| LED Warranty: | 5 years |
Housing Specifications
| Housing Material | Opal acrylic and aluminium |
| Finish | Powder Coated |
| Optics | Opal acrylic |
| Dimensions | Ø890mm x 300mm |
| Weight | 5KG |
| Mounting | Chain suspension |
Light Output Details
| Col Temp. | Wattage | Lumen Output | LED Efficacy |
| 3000K | 130W | 11430lm + 7620lm | 146lm/W |
| 4000K | 130W | 12000lm + 8000lm | 154lm/W |
| 3000K | 156W | 15250lm + 7620lm | 146lm/W |
| 4000K | 156W | 16000lm + 8000lm | 154lm/W |
| 3000K | 182W | 19050lm + 7620lm | 146lm/W |
| 4000K | 182W | 20000lm + 8000llm | 154lm/W |
Build Your Product
Range
Housing Colour
Temp & Output
Emergency
Power Supply
Product code:
Product details:
