Sovereign
Globe Pendant 140mm
Suspended LED Pendant
Light Source
Tridonic LLE + CLE
Colour Temperature
3000K / 4000K
Mounting
Wire Suspension
Application
Interior Ceiling
Housing
Polyethylene / aluminium
1 / 5
Overview
Cat. No: S98674
This sleek and minimal opal LED luminaire boasts a multi facetted geartray design, ensuring optimum uniformity throughout while maintaining the pure globe form. The Sovereign Globe Opal pendant is available in three sizes and uses the latest in LED technology for optimum efficiency and illumination.
Supplied c/w adjustable 3mtr wire suspension system.
Downloads
| OVERVIEW (PDF) | > |
| TECHNICAL DRAWING (JPG) | > |
| Photometry (LDT) | > |

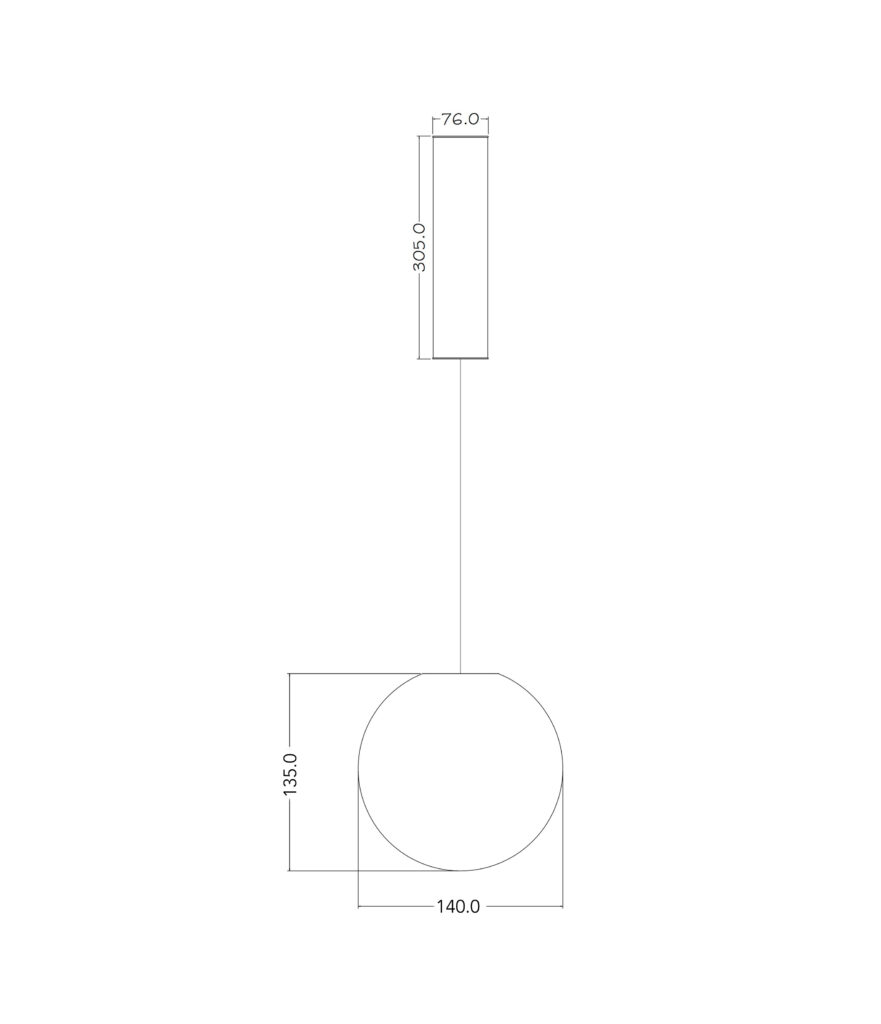

Dimensions
Technical Details
| Lamp: | Tridonic LLE LED + CLE |
| Lamp Life: | 50,000 hours |
| CRI: | >90 |
| Voltage: | 240V |
| Wattage: | 5W |
| Lumens: | 836lm |
| Colour Temp | 3000K / 4000K |
| Efficacy: | 167lm/W |
| Protection Rating | Class 1 |
| Protection Rating: | IP40 |
| Driver: | Integrated high-efficiency (in ceiling plate) |
| Cooling: | Passive Heatsink |
| LED Warranty: | 5 Years |
Housing Specifications
| Housing Material | Polyethylene / aluminium |
| Finish | Matt |
| Optics | Opal diffuser |
| Dimensions | Ø140mm |
| Weight | 0.58kg |
| Mounting | Wire Suspension |
Light Output Details
| Size | Col Temp. | Wattage | Lumen Output | LED Efficacy |
| Size 0 | 3000K | 5W | 836lm | 167lm/W |
| Size 0 | 4000K | 5W | 836lm | 167lm/W |
| Size 1 | 3000K | 22W | 3166lm | 144lm/W |
| Size 2 | 3000K | 35W | 4840lm | 138lm/W |
| Size 2 | 4000K | 35W | 5040lm | 144lm/W |
| Size 3 | 3000K | 52W | 7530lm | 146lm/W |
| Size 3 | 4000K | 52W | 7947lm | 153lm/W |
