Mini Gimbal Downlight

LED Downlight

Cat. No: S18146

A high quality miniature gimbal LED downlight designed and produced in the UK as a realistic replacement for existing MR16Halogen units. Incorporating the latest Tridonic SLE LED modules, this is an exceptionally efficient LED, providing a genuine 151lm/W (4000K) including driver losses. Also available as a twin variation for greater flexibility

The Sovereign Mini Gimbal Downlight features up-to-date aluminium heatsink technology and is available in a range of beam angles. Main bezel of die-cast aluminium, with powder coated finish for durability. Standard colours are white or black, with otherBS/RAL colours to order.

TECHNICAL INFORMATION

Range NameSovereign Mini Gimbal Downlight
Range No.S18146
ApplicationInterior ceiling
LampTridonic SLE LED module
Lamp life50,000 hours
CRI>80
Voltage240V
ClassClass 1
Drive Current250mA
DiffuserNano / Microprism diffuser
IP RatingIP40
Housing MaterialAluminium
Material FinishPowder Coated
Weight0.85kg
Cutout98mm
LED Warranty5 years

DOWNLOADS

  • OVERVIEW (PDF)
  • TECHNICAL DRAWING (JPG)
  • PHOTOMETRY (LDT)

LIGHT OUTPUT DETAILS

Col. TempWattageLumen OutputLED efficacy
3000K9.4W1346lm143lm/W
4000K9.4W1423lm151lm/W

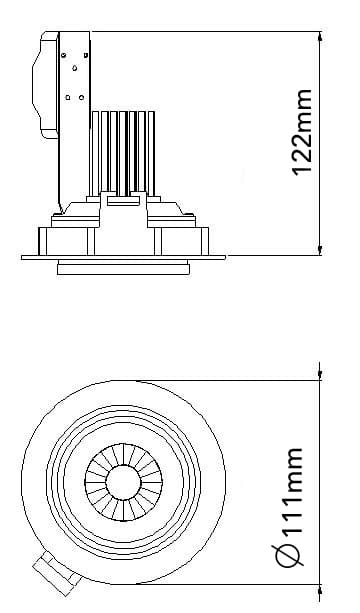

DIMENSIONS (mm)

CUSTOMISATION OPTIONS

Bezel Colour:White / Black / Silver / Other BS/RAL
Beam Angle:Spot / Flood / Wide Flood
Col. Temp:3000K / 4000K
Emergency:Emergency options available
Power Supply:Dimmable Options available

BUILD YOUR PRODUCT

To generate a variant-specific order code, select an option in each of the following categories.

Range

Beam Angle

Housing Colour

Col. Temp.

Emergency (remote)

Power Supply

Product code:

Product Details:

For more customisation options, get in touch with our Sales Team. We are always happy to discuss and develop additional variants for clients.
