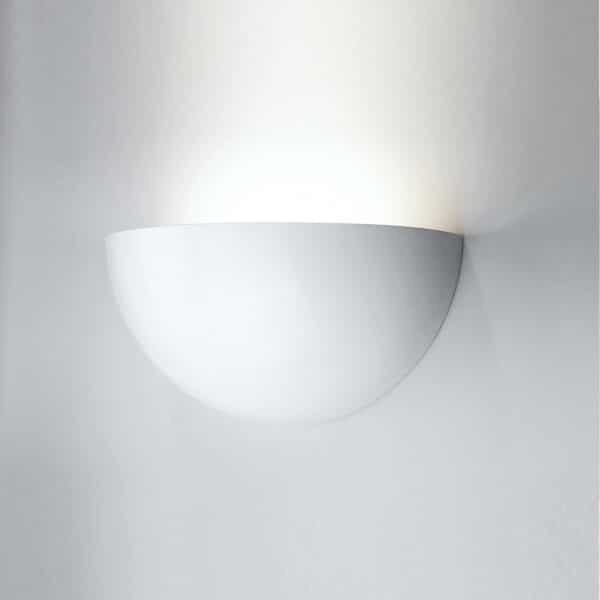

Mini QS Uplighter

Wall Mounted Uplighter

Cat. No: S18550

A classic design updated to the latest LED technology, this Sovereign Mini Quartersphere provides uplight illumination with the microprism diffuser generating a pleasingly uniform spread. Main housing produced from high purity aluminium with integral controlgear fitted as standard.

The Sovereign Mini Quartersphere is also available as an up/downlight.

TECHNICAL INFORMATION

RANGE NAMESovereign Mini Quartersphere Uplighter
RANGE NO.S18550
APPLICATION:Interior Wall
LAMP:Tridonic LLE LED module
LAMP LIFE50,000 hours
CRI:>80
VOLTAGE240V
CLASS:Class 1
DRIVER:Integrated high-efficiency
IP RATING:IP20
HOUSING MATERIAL:Spun Aluminium
MATERIAL FINISHPowder Coated
WEIGHT:1.2Kg
LED WARRANTY5 years

PRODUCT IMAGES

LIGHT OUTPUT DETAILS

COL. TEMP WATTAGE LUMEN OUTPUT LED EFFICACY
3000K 8.7W 1280lm 147lm/W
4000K 8.7W 1340lm 153lm/W

CUSTOMISATION OPTIONS

BODY COLOURWhite / Black / Silver / other BS/RAL
COL. TEMPWarm White (3000K) / Neutral White (4000K)
POWER SUPPLYNon-Dimming / Dimmable options
DRIVEREmergency / Non-Emergency

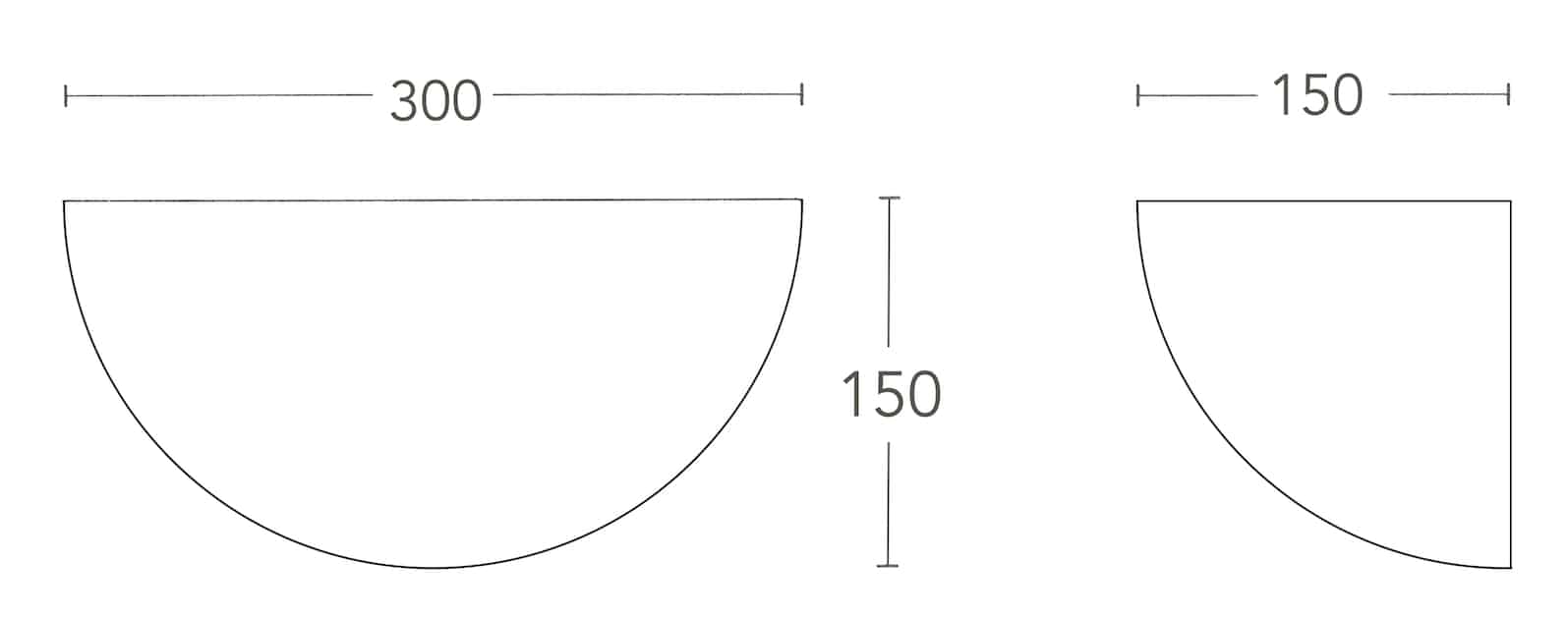

DIMENSIONS (mm)

BUILD YOUR PRODUCT

To generate a variant-specific order code, select an option in each of the following categories.

Range

Housing Colour

Col Temp

Emergency

Power Supply

Product code:

Product Details:

For more customisation options, get in touch with our Sales Team. We are always happy to discuss and develop additional variants for clients.
