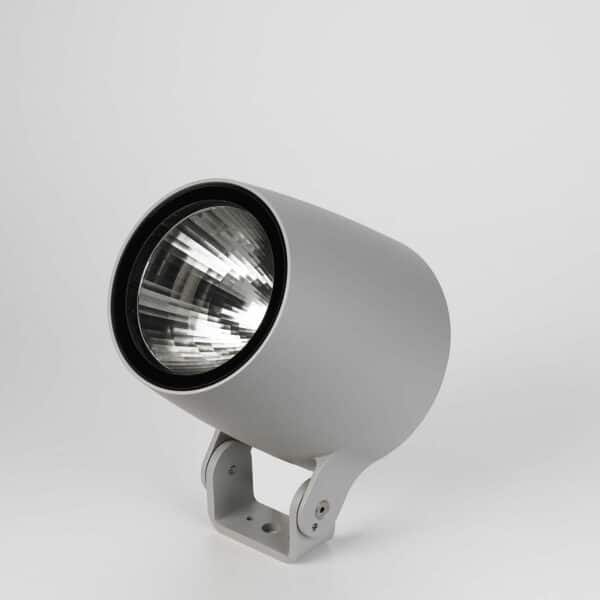

Monospot 4
Floodlight
Cat. No: M8904
Monospot is a new floodlight series with innovative technology and design. It comes in 4 sizes with varying wattages. The Monospot 4 is the largest of the Monospot range, providing up to 5746lm of luminous flux. Available in a range of beams and supplied as a surface or pole mounted fitting to suit any project.
TECHNICAL INFORMATION
| Range Name | Meyer Monospot 4 |
| Cat No. | M8904 |
| Application: | Exterior Surface / Pole Mounted |
| Lamp: | LED |
| Lamp Life: | 50,000 hours |
| Colour Rendering Index | CRI > 80 |
| Protection type: | IP67 |
| Protection Class: | Class 1 |
| Impact Resistance: | IK08 |
| Tilt Range: | 180ยบ |
| Housing Material: | Die-cast aluminium |
DOWNLOADS
LIGHT OUTPUT DETAILS
| Beam | Col Temp. | Wattage | Lumen Output |
| Narrow | 2700-6500K | 45W | 2748lm |
| Narrow | 3000K | 70W | 5664lm |
| Narrow | 4000K | 70W | 5947lm |
| Medium Wide | 2700-6500K | 46W | 2786lm |
| Medium Wide | 3000K | 70W | 5746lm |
| Medium Wide | 4000K | 70W | 6048lm |
| Wide | 2700-6500K | 46W | 2703lm |
| Wide | 3000K | 70W | 5573lm |
| Wide | 4000K | 70W | 5852lm |
| Linear, vertical / horizontal | 3000K | 70W | 4909lm |
| Linear, vertical / horizontal | 4000K | 70W | 5210lm |
| Linear, rotatable | 3000K | 70W | 4517lm |
| Linear, rotatable | 4000K | 70W | 4793lm |

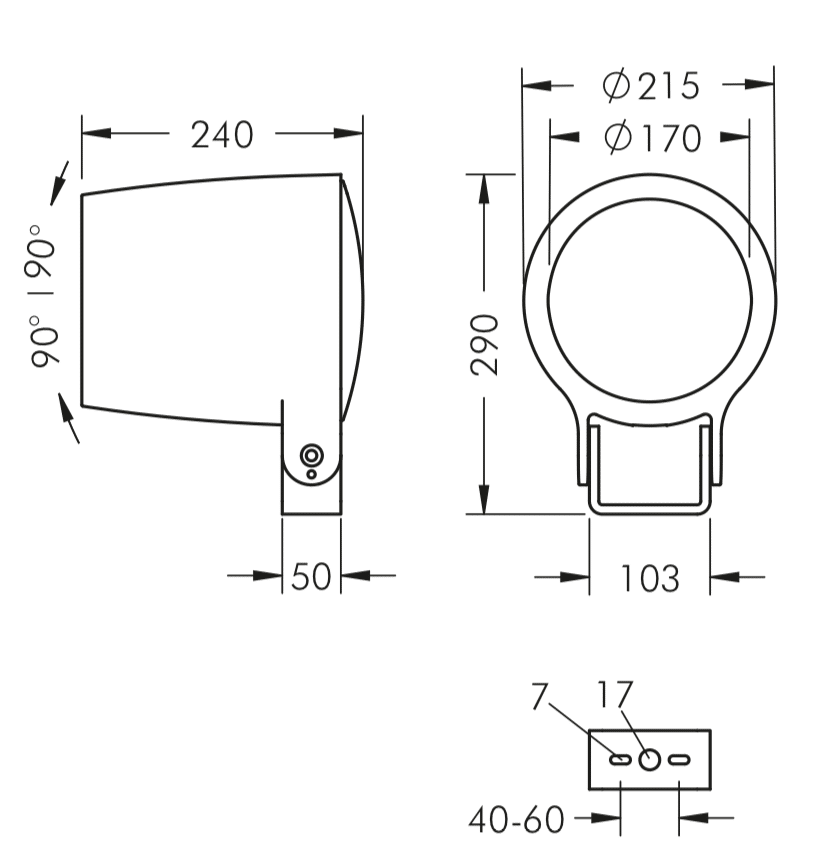

DIMENSIONS (mm)
CUSTOMISATION OPTIONS
| Output: | Range of wattages from 45W - 70W |
| Light Distribution: | Narrow / Medium Wide / Wide / Linear beam spread, vertical / Linear, horizontal / Linear, rotatable |
| Colour Temp: | 2700K - 6500K / 3000K / 4000K / RGBW (3000K) |
| Control: | 1-10V / DALI / DMX / on/off |
| Luminous Flux | Ranging from 2748lm - 5852lm |
| Housing Colour | Black / White / Silver Grey |
| Mounting | Mounting bracket / Pole Top |
