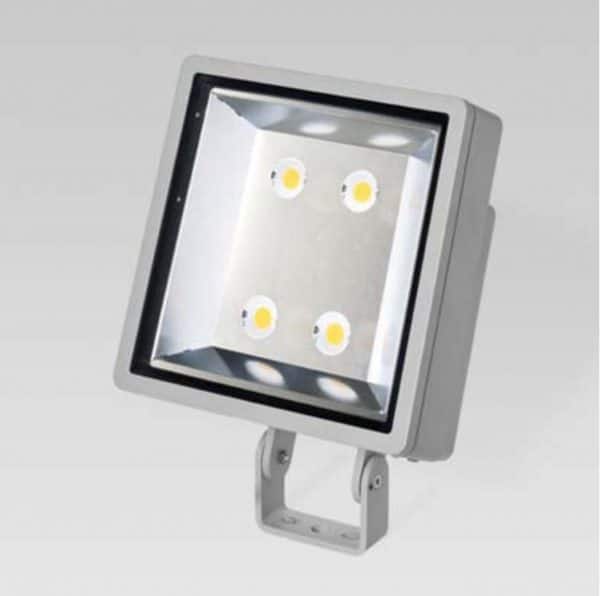

Superlight LED 3 +

Floodlight

Cat. No: M8888

Superlight LED is a new range of exterior, high performance floodlights in 3 sizes of housing. Particularly high performance LED modules are combined with extremely efficient reflectors for various different light distributions. These floodlights can be used universally for manifold exterior lighting tasks.

Symmetrical or asymmetrical wide beam reflectors can be used for area lighting while the rotationally symmetrical narrow beam reflectors are useful for accent lighting on façades or on the ground. Optimal heat management ensures a high degree of efficiency and longevity of the LED modules. Their sleek and unobtrusive design allows these luminaires to be integrated into any style of architecture.

TECHNICAL INFORMATION

Range NameMeyer Superlight LED 3
Cat No.M8888
Application:Exterior Surface
Lamp:LED
Power4 x 39W
Lamp Life:50,000 hours
Protection type:IP65
Protection Class:Class 1
Impact Resistance:IK08
Tilt Range:180º
Housing Material:Die-cast aluminium

DOWNLOADS

LIGHT OUTPUT DETAILS

Beam Col Temp. Wattage Lumen Output
Narrow 3000K 4 x 39W 15782lm
Narrow 4000K 4 x 39W 16887lm
Wide 3000K 4 x 39W 17255lm
Wide 4000K 4 x 39W 18487lm
Asymmetrical 3000K 4 x 39W 13610lm
Asymmetrical 4000K 4 x 39W 14563lm

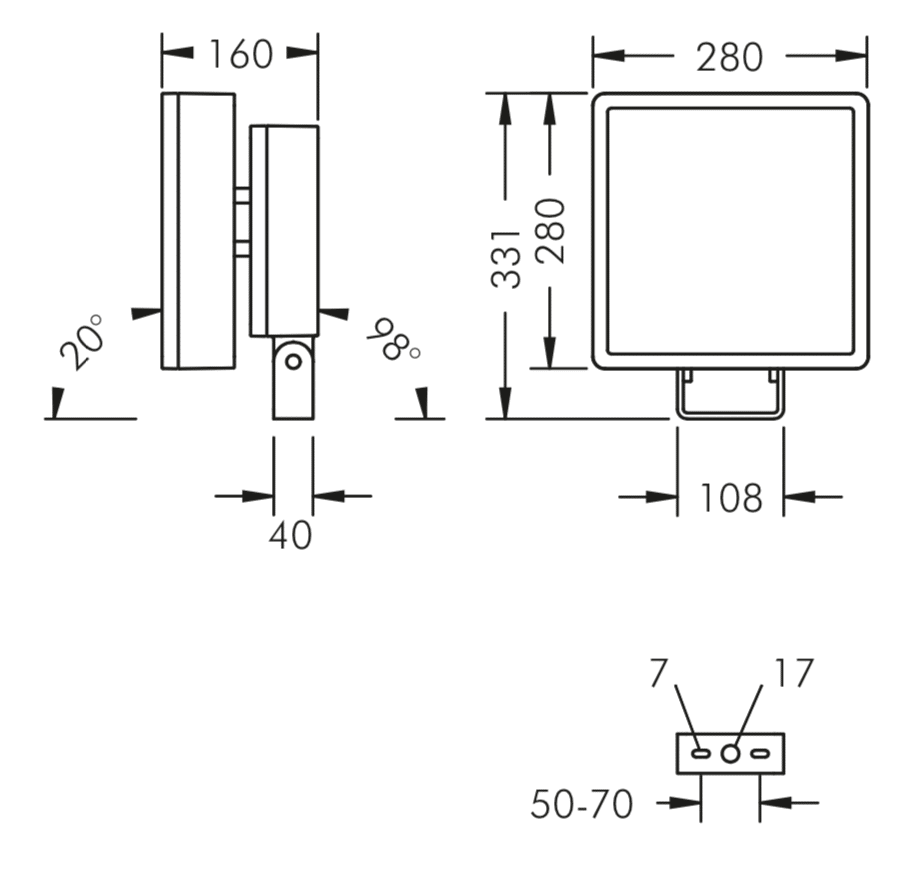

DIMENSIONS (mm)

CUSTOMISATION OPTIONS

Light Distribution:Narrow / Wide / Wide / Asymmetrical
Colour Temp:3000K / 4000K
Control:1-10V / DALI / DMX / on/off
Housing ColourBlack / White / Silver Grey
FixationMounting bracket / Pole top / Wall arm
