Superlight LED 3

Floodlight

Cat. No: M8887

Superlight LED is a new range of exterior, high performance floodlights in 3 sizes of housing. Particularly high performance LED modules are combined with extremely efficient reflectors for various different light distributions. These floodlights can be used universally for manifold exterior lighting tasks.

Symmetrical or asymmetrical wide beam reflectors can be used for area lighting while the rotationally symmetrical narrow beam reflectors are useful for accent lighting on façades or on the ground. Optimal heat management ensures a high degree of efficiency and longevity of the LED modules. Their sleek and unobtrusive design allows these luminaires to be integrated into any style of architecture.

TECHNICAL INFORMATION

Range NameMeyer Superlight LED 3
Cat No.M8887
Application:Exterior Surface
Lamp:LED
Power2 x 45W
Lamp Life:50,000 hours
Protection type:IP67
Protection Class:Class 1
Impact Resistance:IK08
Tilt Range:180º
Housing Material:Die-cast aluminium

DOWNLOADS

LIGHT OUTPUT DETAILS

BeamCol Temp.WattageLumen Output
Narrow3000K2 x 45W8212lm
Narrow4000K2 x 45W8786lm
Wide3000K2 x 45W9098lm
Wide4000K2 x 45W9747lm
Asymmetrical3000K2 x 45W7082lm
Asymmetrical4000K2 x 45W7578lm
Comfort Optic3000K55W4003lm
Comfort Optic4000K55W4175lm

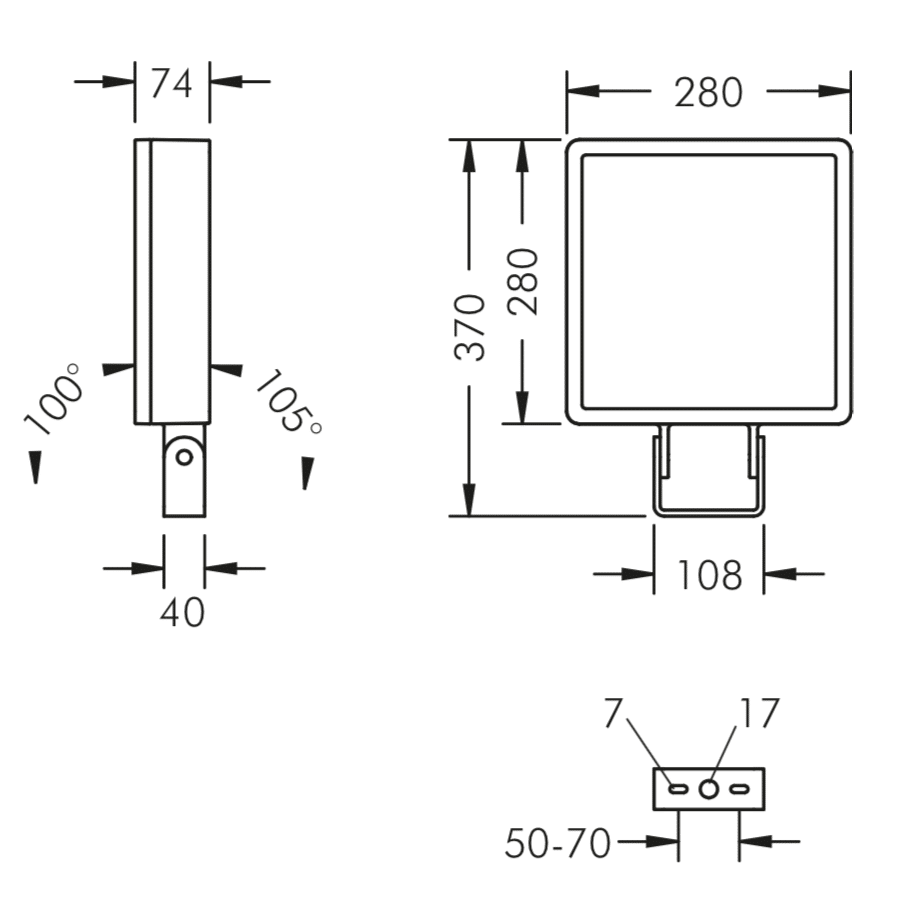

DIMENSIONS (mm)

CUSTOMISATION OPTIONS

Light Distribution:Narrow / Wide / Wide / Asymmetrical
Colour Temp:3000K / 4000K
Control:1-10V / DALI / DMX / on/off
Housing ColourBlack / White / Silver Grey
FixationMounting bracket / Pole top / Wall arm
