Meyer
Monospot 2 Pole

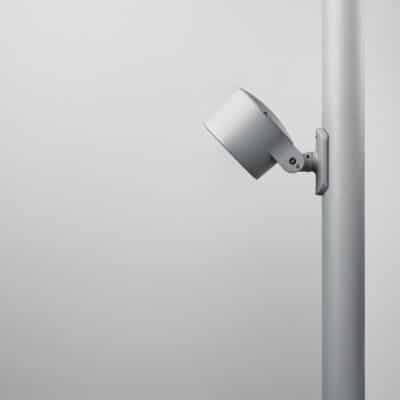

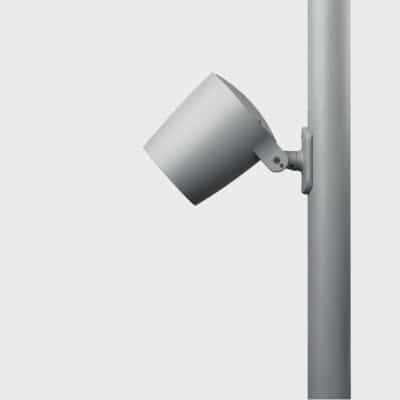

Pole Mounted Floodlight
Light Source
LED
Colour Temperature
2700K / 3000K / 4000K
Mounting
with pole mounting bracket
Application
Exterior floodlighting
Housing
Die-cast aluminium
1 / 5
Overview
Cat. No: M8902
Monospot is a new floodlight series with innovative technology and design. It comes in 4 sizes with varying wattages. In addition to a wide range of fixed light distributions, the Monospot 2 is also available as a surface mounted or pole top luminaire.
Downloads
| Range Overview (PDF) | > |

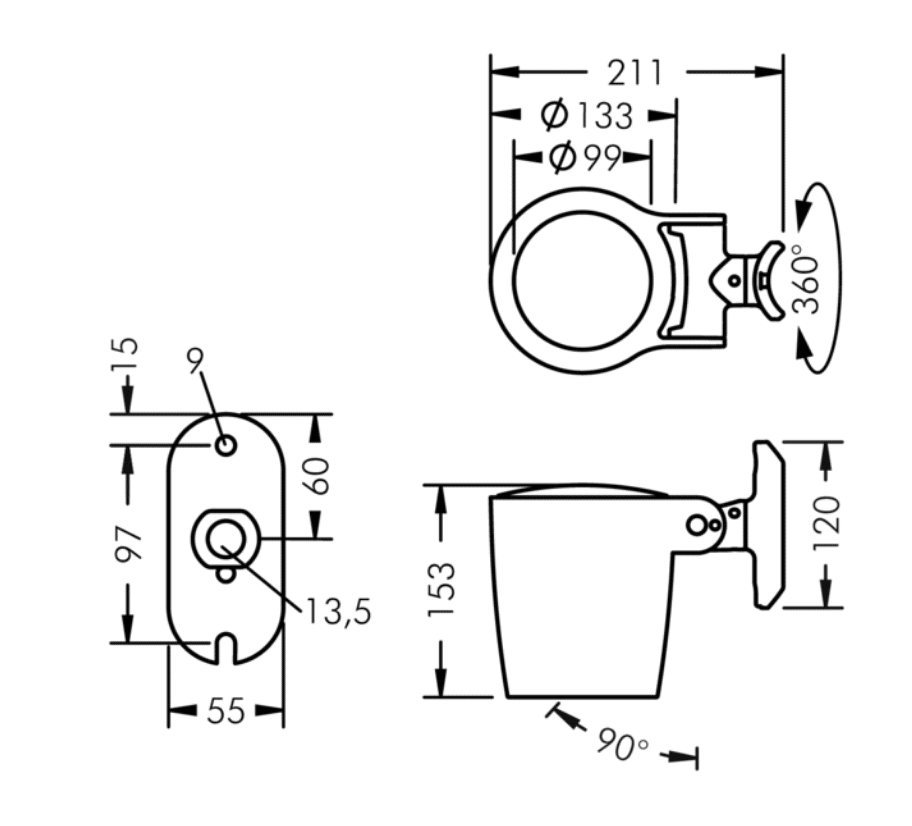

Dimensions
Technical Details
| Lamp: | LED |
| Lamp Life: | 50,000 hours |
| Colour Rendering Index | CRI > 80 |
| Protection type: | IP67 |
| Protection Class: | Class 1 |
| Impact Resistance: | IK08 |
| Tilt Range: | 180º |
Housing Specifications
| Housing Material | Die-cast Aluminium |
| Finish | Powder Coated |
| Optics | Tempered anti-reflective glass |
| Dimensions | Ø165mm x 157mm |
| Weight | 2.1KG |
| Mounting | with pole mounting bracket |
Light Output Details
| Beam | Col Temp. | Wattage | Lumen Output |
| Narrow | 3000K | 14W | 1095lm |
| Narrow | 4000K | 14W | 1151lm |
| Medium Wide | 3000K | 14W | 1083lm |
| Medium Wide | 4000K | 14W | 1137lm |
| Wide | 3000K | 14W | 1069lm |
| Wide | 4000K | 14W | 1123lm |
| Linear, vertical / horizontal | 3000K | 14W | 1167lm |
| Linear, vertical / horizontal | 4000K | 14W | 1225lm |
| Linear, rotatable | 3000K | 15W | 1008lm |
| Linear, rotatable | 4000K | 15W | 1058lm |
