Ecoblade Slot Free Standing
Free Standing Uplighter
Light Source
Tridonic LLE LED
Colour Temperature
3000K / 4000K
Mounting
Free standing
Application
Office Lighting
Housing
Extruded Aluminium
1 / 2
Overview
Cat. No: S18742
An exceptionally high performance range of top quality free standing uplighters, specifically designed around the latest high efficiency Tridonic LLE modules, offering superb performance of up to 154lm/W. Available in a range of styles including uplight only or up/downlight. This version features an illuminated slot in the front facade as anadded decorative touch, but also available without for a more miminal aesthetic (see Ecoblade Free Standing S18741 range).
Main housing produced from extruded aluminium with integral passive thermal management. All versions supplied with Nano/Microprism diffuser for optimum lighttransmission and visual comfort. Finished in textured polyester powder coat with standard finishes in white, black and silver, with other BS/RAL colours available to order.
Supplied complete with switch, mains lead and moulded 13A plug for total ease of installation.
Technical Details
| Range Name: | Sovereign Ecoblade Slot Free Standing |
| Range No. | S18742 |
| Lamp: | TRIDONIC / OSRAM LLE modules |
| Lamp Life: | 50,000 hours |
| CRI: | >80 |
| Voltage: | 240V |
| Protection Class: | Class 1 |
| Protection Rating: | IP40 |
| Driver: | Integrated high-efficiency |
| Cooling: | Passive Heatsink |
| Housing Finish: | Textured Polyester Powder Coated |
| LED Warranty: | 5 Years |
Housing Specifications
| Housing Material | Extruded Aluminium |
| Finish | Powder Coated |
| Optics | Microprism |

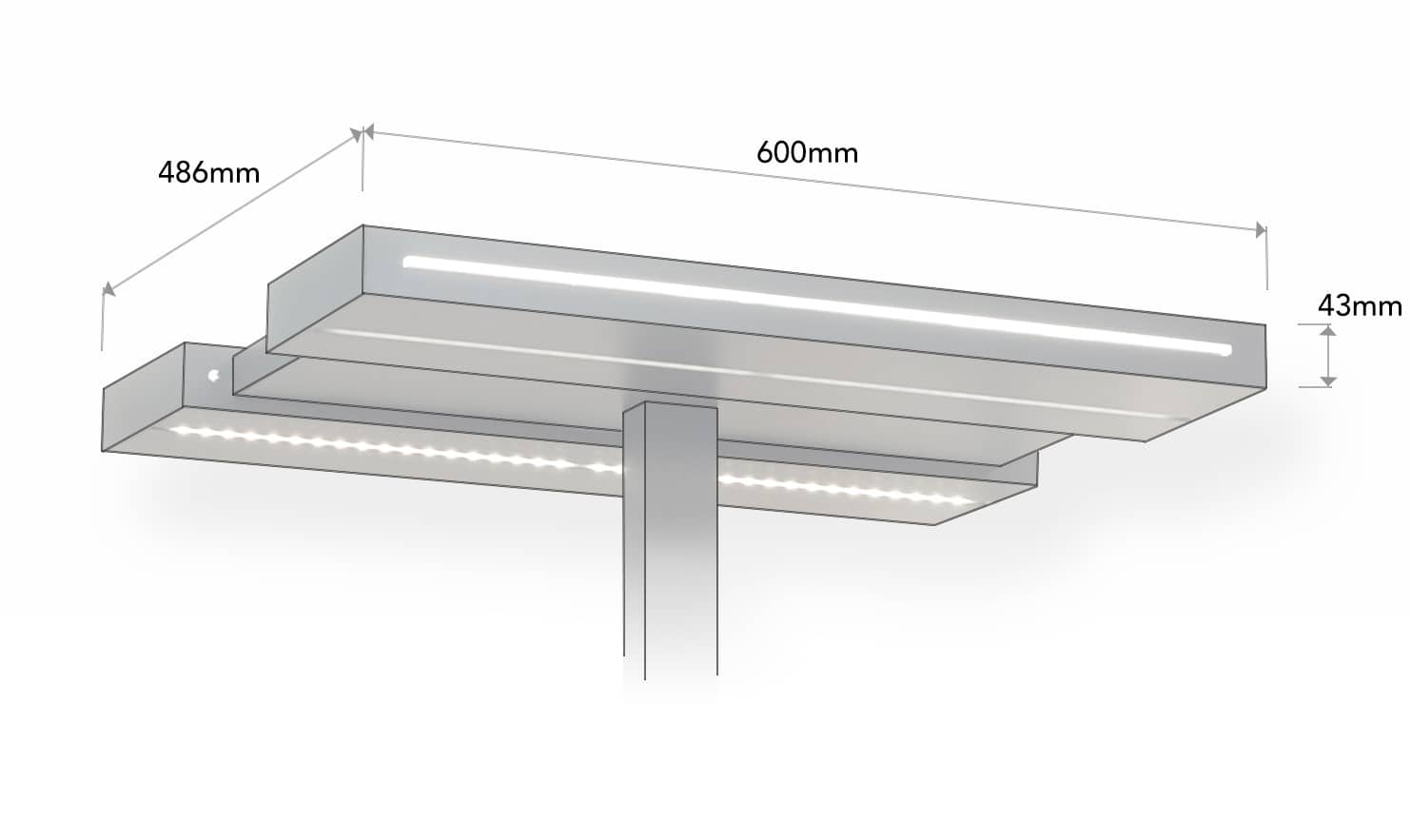

| Dimensions | 486mm x 600mm x 43mm |
| Weight | 24KG |
| Mounting | Free standing |
Light Output Details
| Uplighter | |||
|---|---|---|---|
| Col Temp. | Wattage | Lumen Output | LED Efficacy |
| 3000K | 52W | 8100lm | 156lm/W |
| 4000K | 52W | 8500lm | 163lm/W |
| Up/Downlight | |||
|---|---|---|---|
| Col Temp. | Wattage | Lumen Output | LED Efficacy |
| 3000K | 66W | 10126lm | 153lm/W |
| 4000K | 66W | 10600lm | 161lm/W |
