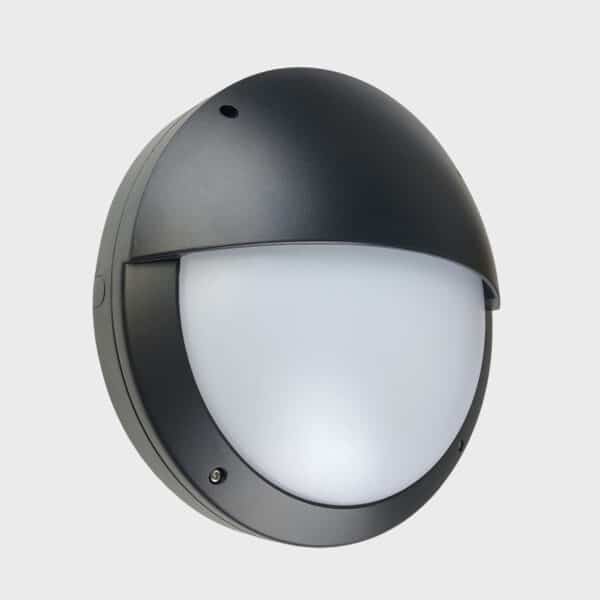

Exterior Bulkhead
Ceiling / Wall Mounted
Cat no: S78336
This Bulkhead luminaire series provides an attractive and robust solution for walkway, tunnel, car park and storage area illumination. Available in both a standard and eyelid design.
TECHNICAL INFORMATION
| Application: | Exterior Wall / Ceiling |
| Light Source: | Tridonic CLE |
| Lamp Life: | 50,000 Hours |
| Colour Rendering: | >80 CRI |
| Voltage: | 240V |
| Driver: | High Efficiency |
| Protection Rating: | Class 1 |
| IP Rating: | IP65 |
| Diffuser: | Tough Polycarbonate Opal |
| Material Finish: | Powder Coated |
| Housing Material: | Die-Cast Aluminium |
| Weight: | 3Kg |
| Warranty: | 5 Years |
DOWNLOADS
LIGHT OUTPUT DETAILS
| Col. Temp | Wattage | Lumen Output | LED efficacy |
| 3000K | 9.5W | 1530lm | 160lm/W |
| 4000K | 9.5W | 1600lm | 169lm/W |
| 3000K | 17W | 2540lm | 158lm/W |
| 4000K | 17W | 2660lm | 158lm/W |

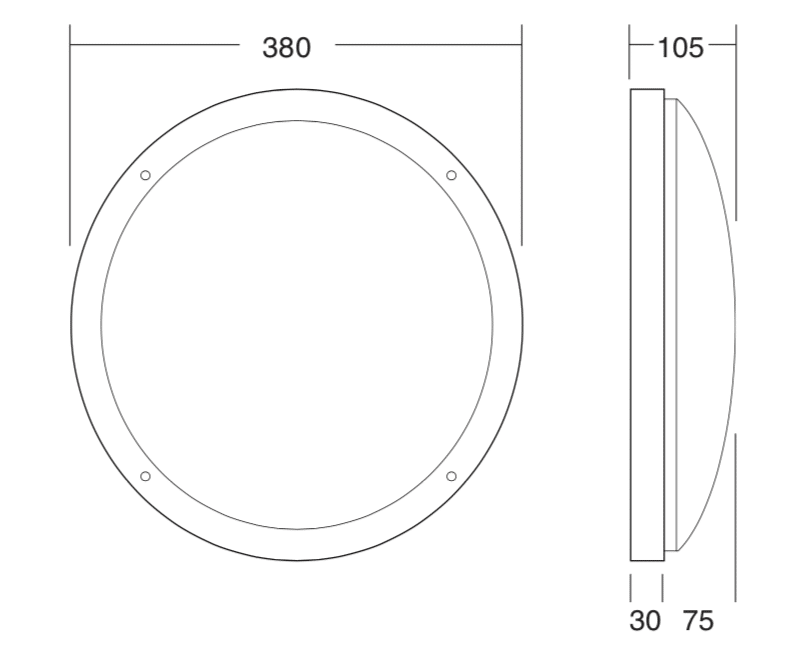

DIMENSIONS (mm)
CUSTOMISATION OPTIONS
| Style: | Plain / Eyelid |
| Housing Colour: | White / Black |
| Col Temp: | 3000K / 4000K |
BUILD YOUR PRODUCT
To generate a variant-specific order code, select an option in each of the following categories.
Range
Housing Colour
Version
Emergency
Power Supply
Product code:
Product Details:
For more customisation options, get in touch with our Sales Team. We are always happy to discuss and develop additional variants for clients.
