Meyer
Highline
Linear luminaire
Light Source
LED
Colour Temperature
3000K / 4000K
Mounting
Wall arm / wall bracket
Application
Exterior Facade Lighting
Housing
Die-cast aluminium
1 / 6
Overview
Cat. No: M8730
Highline is a range of façade luminaires of minimalistic design. They are available with wall washer, narrow beam or asymmetrical distribution. The fields of application range from accent lighting to uniform wall washing. Highline is a versatile instrument for many different applications, in a uniform and discreet housing.
For more info, please visit Meyer
Downloads
| Range Overview (PDF) | > |

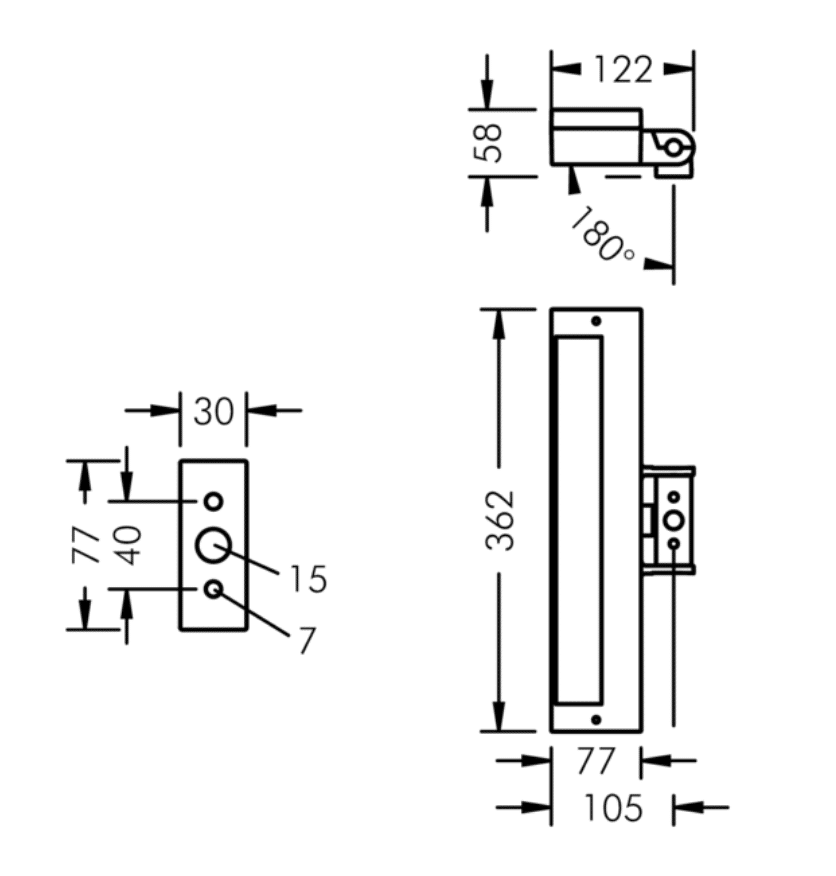

Dimensions
Technical Details
| Lamp: | LED |
| Lamp Life: | 50,000 hours |
| Protection type: | IP67 |
| Protection Class: | Class I |
| Impact Resistance: | IK08 |
| CRI | >80 |
Housing Specifications
| Housing Material | Die-cast Aluminium |
| Finish | Powder Coated |
| Optics | Tempered anti-reflective glass |
| Dimensions | L472 x H50mm x W62mm |
| Weight | 1.7KG |
| Mounting | Wall arm / wall bracket |
Light Output Details
| Beam | Col Temp. | Wattage | Lumen Output |
| Wall washer 34º / 126º | 3000K | 23W | 1281lm |
| Wall washer 34º / 126º | 4000K | 23W | 1345lm |
| Asymmetrical 35º | 3000K | 23W | 1121lm |
| Asymmetrical 35º | 4000K | 23W | 1177lm |
| Narrow Beam 12º | 3000K | 23W | 1487lm |
| Narrow Beam 12º | 4000K | 23W | 1561lm |
