Meyer

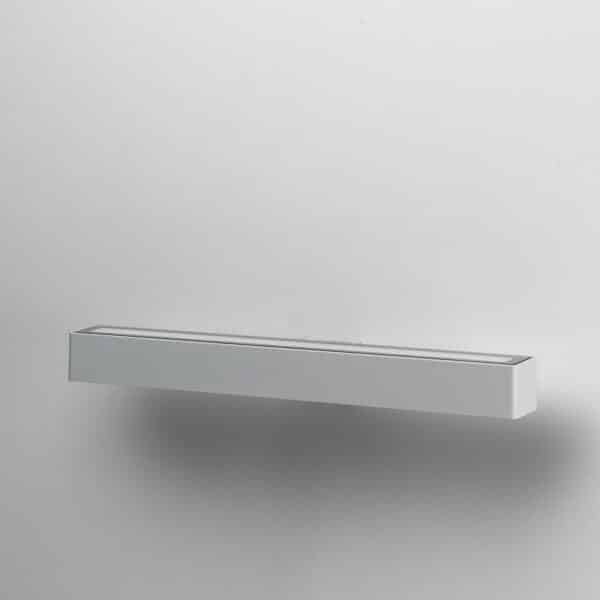

Monoline 2

Linear luminaire

Key Features

Light Source

LED

Colour Temperature

3000K / 4000K

Mounting

Wall arm / wall bracket

Application

Exterior Facade Lighting

Housing

Die-cast aluminium

Class I - Luminaire with basic insulation. Protection: connection of the accessible metal parts to the earthing connection. Ingress Protection - IK08 IP65 - Protected from total dust ingress. Protected from low-pressure water jets from any direction. Product is certified according to European standards Class II - double or reinforced insulation without earth connection

Overview

Cat. No: M8781

Monoline are façade luminaires with minimalist design and very small dimensions. Innovative wall washer optics create uniform light distribution with clearly defined contours. In addition, luminaires with narrow beam or asymmetrical light distributions are available for various different façade lighting applications. Mounting options include a bracket and a wall arm.

For more info, please visit Meyer

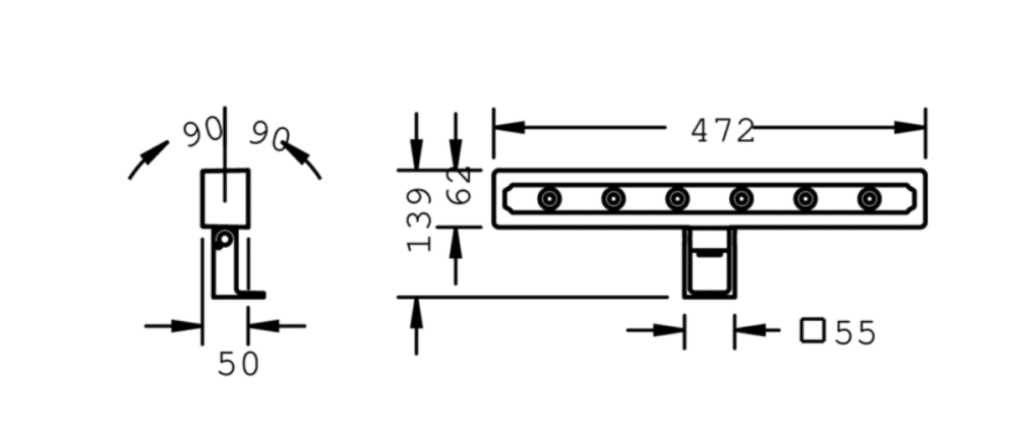

Dimensions


Technical Details


Housing Specifications


Light Output Details


Beam Col Temp. Wattage Lumen Output
Wall washer 34º / 126º 3000K 28W 1521lm
Wall washer 34º / 126º 4000K 28W 1597lm
Asymmetrical 35º 3000K 28W 1964lm
Asymmetrical 35º 4000K 28W 2122lm
Narrow Beam 12º 3000K 28W 2539lm
Narrow Beam 12º 4000K 28W 2741lm
