Monoline 1
Linear luminaire
Light Source
LED
Colour Temperature
3000K / 4000K
Mounting
Wall arm / wall bracket
Application
Exterior Facade Lighting
Housing
Die-cast aluminium
1 / 3
Overview
Cat. No: M8780
Monoline are façade luminaires with minimalist design and very small dimensions. Innovative wall washer optics create uniform light distribution with clearly defined contours. In addition, luminaires with narrow beam or asymmetrical light distributions are available for various different façade lighting applications. Mounting options include a bracket and a wall arm.
For more info, please visit Meyer

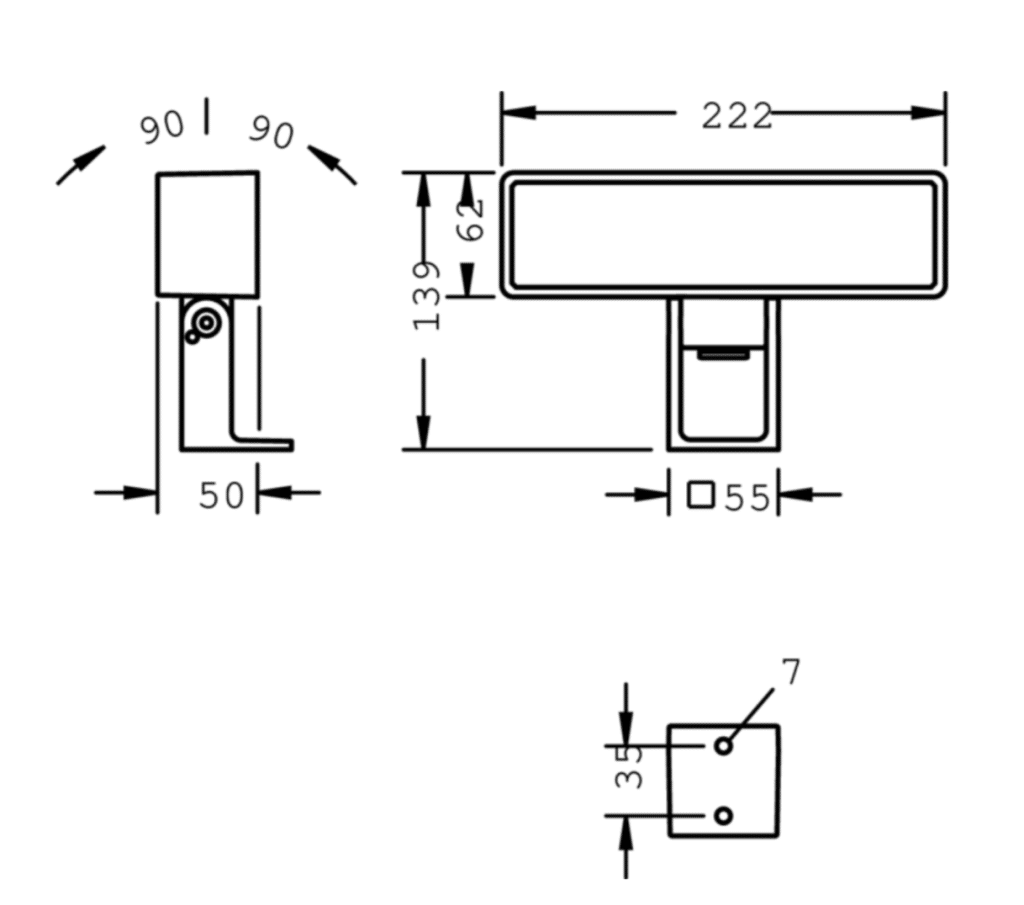

Dimensions
Technical Details
| Cat No. | M8780 |
| Lamp: | LED |
| Lamp Life: | 50,000 hours |
| Protection type: | IP65 |
| Protection Class: | Class I |
| Impact Resistance: | IK08 |
| CRI | >80 |
Housing Specifications
| Housing Material | Die-cast Aluminium |
| Finish | Powder Coated |
| Optics | Tempered anti-reflective glass |
| Dimensions | L222mm x H50mm x W62mm |
| Weight | 1.2KG |
| Mounting | Wall arm / wall bracket |
Light Output Details
| Beam | Col Temp. | Wattage | Lumen Output |
| Wall washer 34º / 126º | 3000K | 10W | 597W |
| Wall washer 34º / 126º | 4000K | 10W | 645lm |
| Asymmetrical 35º | 3000K | 10W | 701lm |
| Asymmetrical 35º | 4000K | 10W | 758lm |
| Narrow Beam 12º | 3000K | 10W | 907lm |
| Narrow Beam 12º | 4000K | 10W | 979lm |
