Meyer

Expolux

Linear luminaire

Key Features

Light Source

LED

Colour Temperature

3000K / 4000K

Mounting

Surface mounted with joint / wall arm

Application

Exterior wall / signage

Housing

Die-cast aluminium

Class I - Luminaire with basic insulation. Protection: connection of the accessible metal parts to the earthing connection. Protected against 20 joules of impact (the equivalent to the impact of a 5kg mass dropped from 400mm above the impacted surface) IP65 - Protected from total dust ingress. Protected from low-pressure water jets from any direction. Product is certified according to European standards Class II - double or reinforced insulation without earth connection

Overview

Cat. No: M8990

The Expolux range of luminaires illuminates signs or advertising surfaces to a high level of uniformity. The light emitted by an LED module is directed asymmetrically by a special lens onto the surface. The low profile housing is very compact and only needs to be tilted very little thanks to the asymmetrical distribution lens. Together with the short arm, the overall impression is a very discreet luminaire.

For more info, please visit Meyer

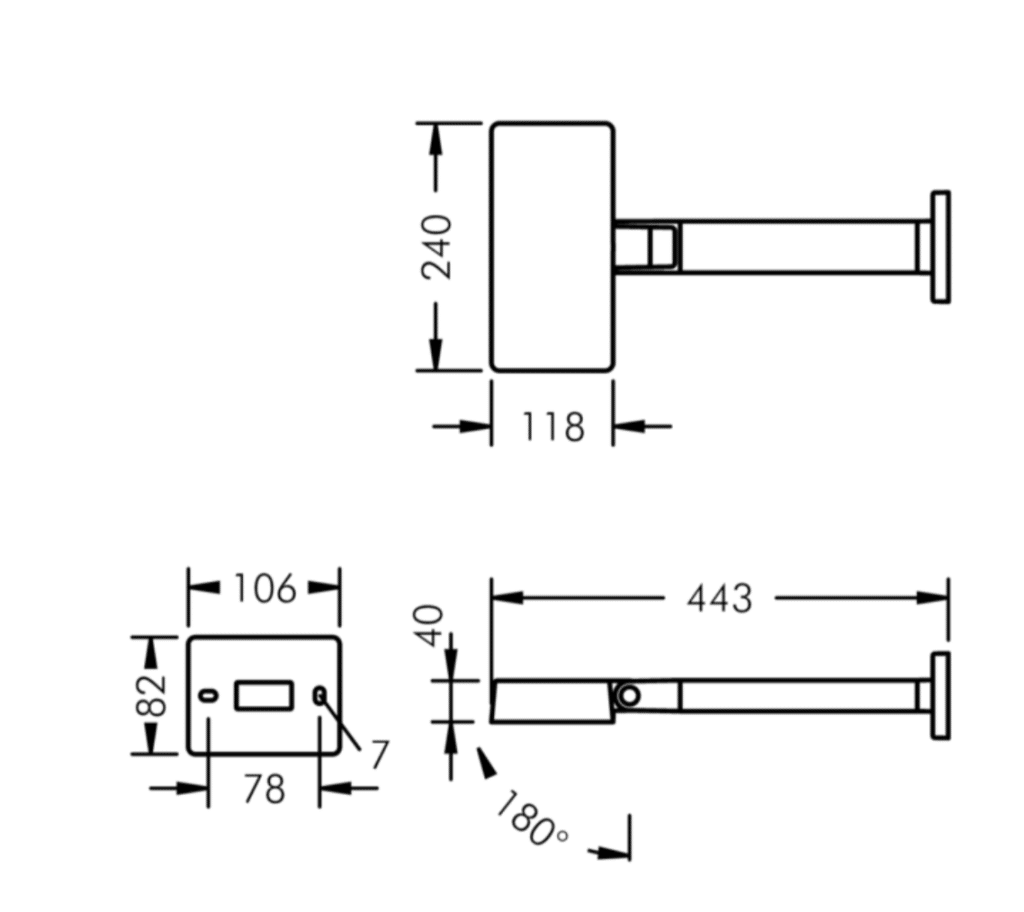

Dimensions


Technical Details


Housing Specifications


Light Output Details


Beam Col Temp. Wattage Lumen Output
Wall washer 20º / 82º 3000K 18W 1533lm
Wall washer 34º / 126º 4000K 18W 1614lm
Asymmetrical 43º / 70º 3000K 18W 1551lm
Asymmetrical 43º / 70º 4000K 18W 1629lm
Sign luminaire 15º / 41º 3000K 18W 1728lm
Sign luminaire 15º / 41º 4000K 18W 1814lm
