Meyer
Monospot 3 Pole
Pole Mounted Floodlight
Light Source
LED
Colour Temperature
2700K / 3000K / 4000K
Mounting
with mounting bracket
Application
Exterior floodlighting
Housing
Die-cast aluminium
1 / 5
Overview
Cat. No: M8903
Monospot is a new floodlight series with innovative technology and design. It comes in 4 sizes with varying wattages. In addition to a wide range of fixed light distributions, the Monospot 3 is also available in a Vario Optic version, which allows the light beam to be adjusted to suit the specific lighting task.
Downloads
| Range Overview (PDF) | > |

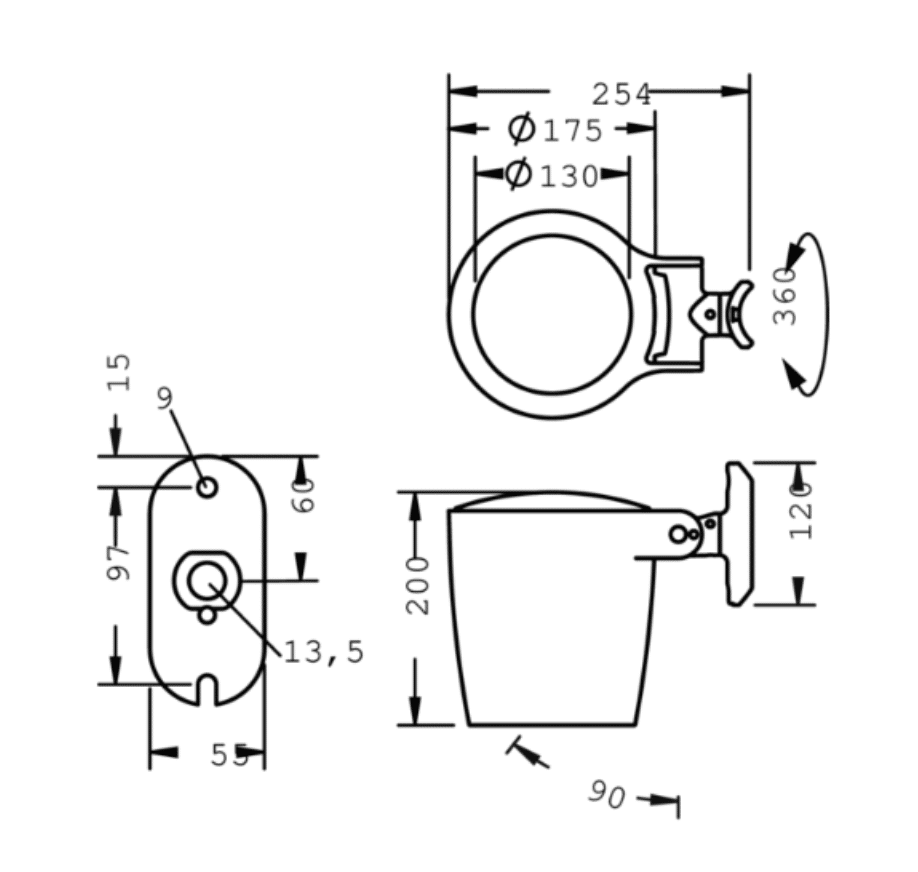

Dimensions
Technical Details
| Lamp: | LED |
| Power | 36W |
| Lamp Life: | 50,000 hours |
| Colour Rendering | CRI > 80 |
| Protection type: | IP67 |
| Protection Class: | Class 1 |
| Impact Resistance: | IK08 |
| Tilt Range: | 180º |
Housing Specifications
| Housing Material | Die-cast Aluminium |
| Finish | Powder Coated |
| Optics | Tempered anti-reflective glass |
| Dimensions | Ø175mm x W200mm |
| Weight | 3.2KG |
| Mounting | with mounting bracket |
Light Output Details
| Beam | Col Temp. | Wattage | Lumen Output |
| Narrow | 3000K | 36W | 3289lm |
| Narrow | 4000K | 36W | 3391lm |
| Medium Wide | 3000K | 36W | 3283lm |
| Medium Wide | 4000K | 36W | 3448lm |
| Wide | 3000K | 36W | 3348lm |
| Wide | 4000K | 36W | 3516lm |
| Linear, vertical / horizontal | 3000K | 36W | 2829lm |
| Linear, vertical / horizontal | 4000K | 36W | 2970lm |
| Linear, rotatable | 3000K | 36W | 2603lm |
| Linear, rotatable | 4000K | 36W | 2733lm |
| Asymmetric | 3000K | 36W | 2938lm |
| Asymmetric | 4000K | 36W | 4246lm |
| Street Optic | 3000K | 36W | 3253lm |
| Street Optic | 4000K | 36W | 3391lm |
| Vario Optic | 3000K | 36W | 2211lm |
| Vario Optic | 4000K | 36W | 2281lm |
