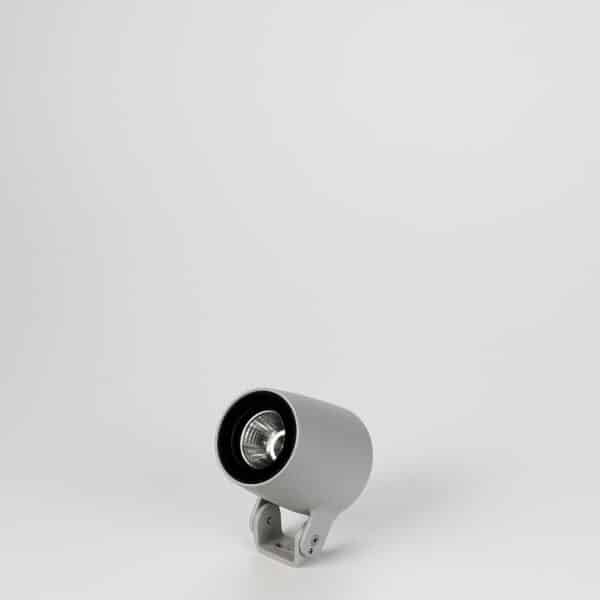

Monospot 1
Floodlight
Cat. No: M8901
Monospot is a new floodlight series with innovative technology and design. It comes in 4 sizes with varying wattages. In addition to a wide range of fixed light distributions, the Monospot 1 is available as either a surface mounted of pole top luminaire.
TECHNICAL INFORMATION
| Range Name | Meyer Monospot |
| Cat No. | M8901 |
| Application: | Exterior Surface / Pole Mounted |
| Lamp: | LED |
| Power | 6W |
| Lamp Life: | 50,000 hours |
| Colour Rendering Index | CRI > 80 |
| Protection type: | IP67 |
| Protection Class: | Class 1 |
| Impact Resistance: | IK08 |
| Tilt Range: | 180ยบ |
| Housing Material: | Die-cast aluminium |
DOWNLOADS
LIGHT OUTPUT DETAILS
| Beam | Col Temp. | Wattage | Lumen Output |
| Narrow | 3000K | 6W | 431lm |
| Narrow | 4000K | 6W | 453lm |
| Medium Wide | 3000K | 6W | 451lm |
| Medium Wide | 4000K | 6W | 474lm |
| Wide | 3000K | 6W | 547lm |
| Wide | 4000K | 6W | 574lm |
| Linear, vertical / horizontal | 3000K | 6W | 452lm |
| Linear, vertical / horizontal | 4000K | 6W | 475lm |
| Linear, rotatable | 3000K | 6W | 416lm |
| Linear, rotatable | 4000K | 6W | 437lm |

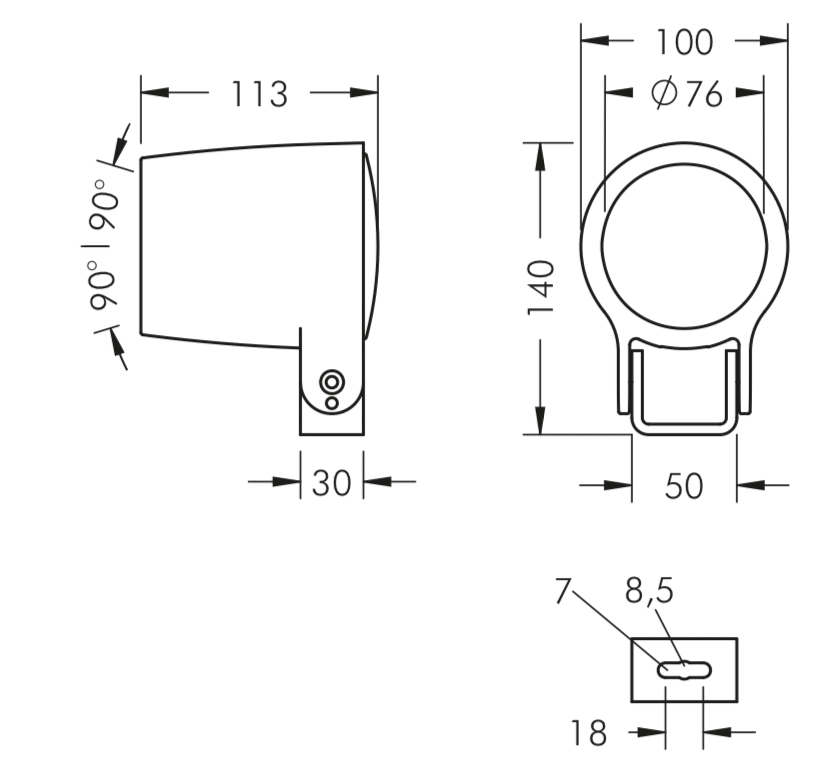

DIMENSIONS (mm)
CUSTOMISATION OPTIONS
| Light Distribution: | Narrow / Medium Wide / Wide / Linear beam spread, vertical / Linear, horizontal / Linear, rotatable |
| Colour Temp: | 3000K / 4000K |
| Control: | 1-10V / DALI / DMX / on/off |
| Mounting | Mounting bracket / Pole Top |
