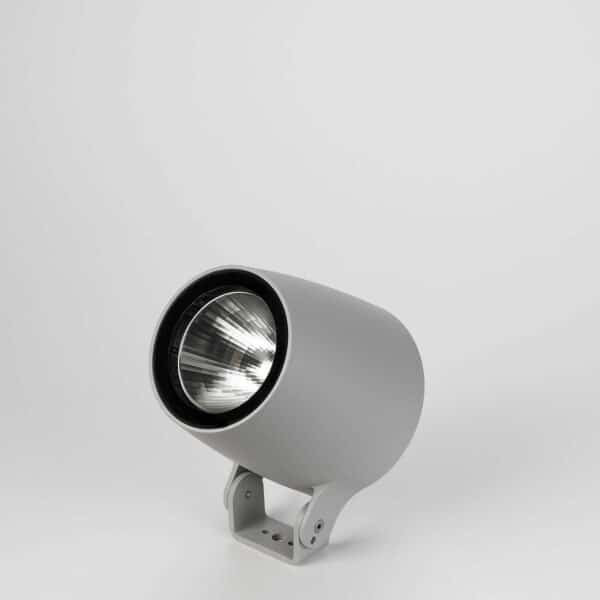

Monospot 3
Floodlight
Cat. No: M8903

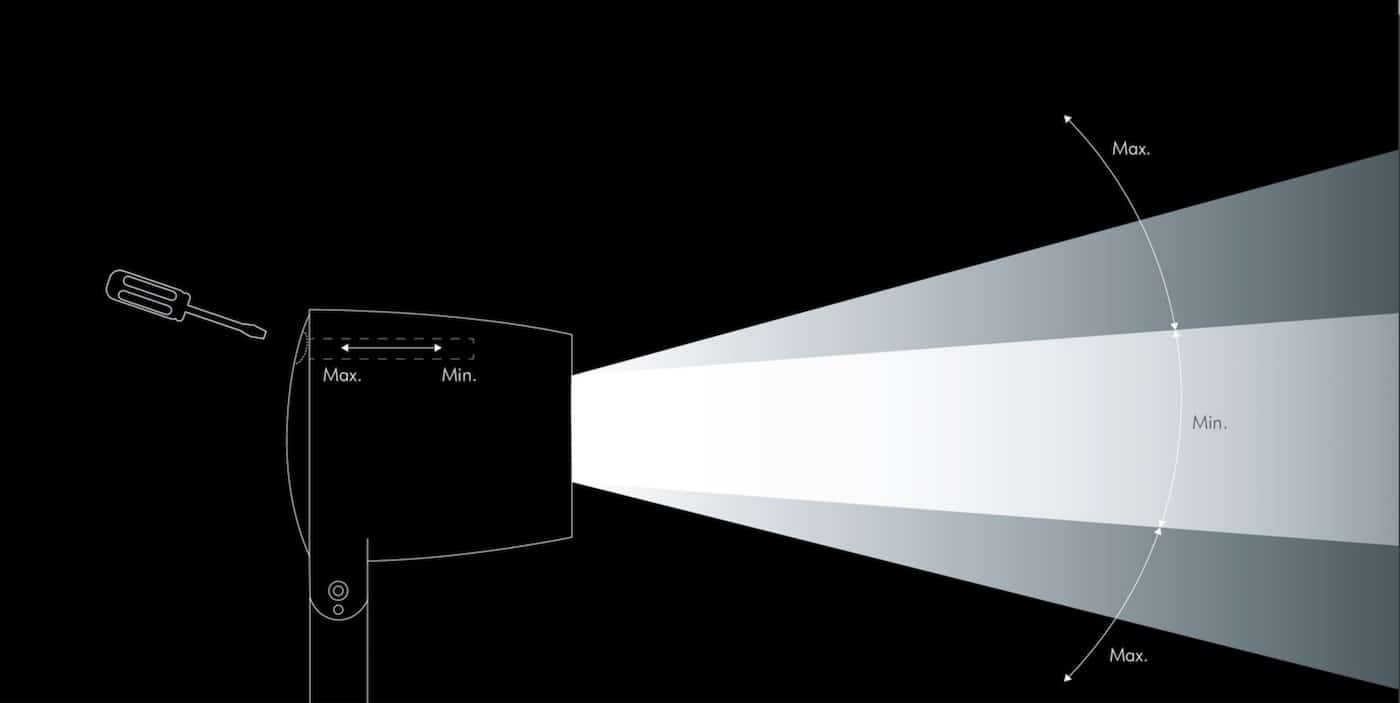

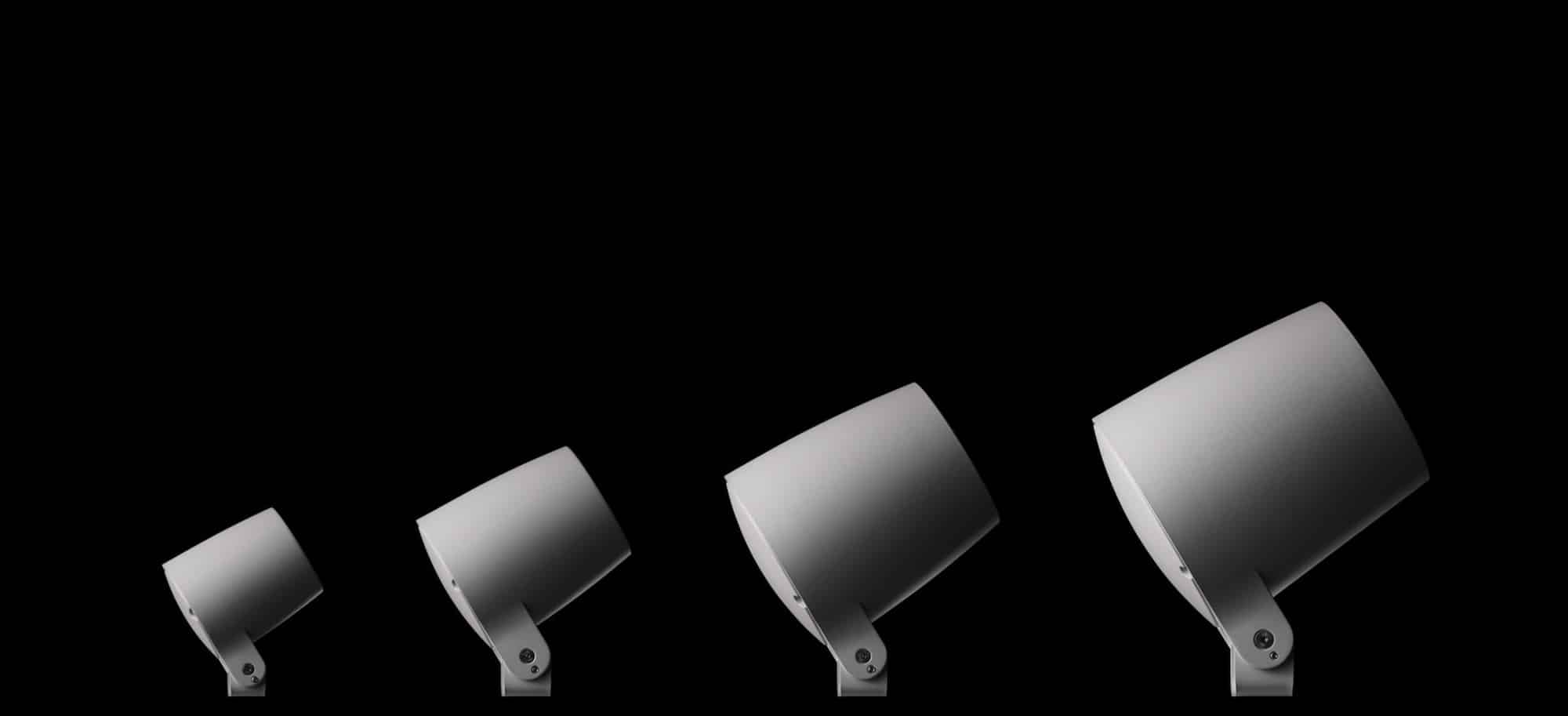

Monospot is a new floodlight series with innovative technology and design. It comes in 4 sizes with varying wattages. In addition to a wide range of fixed light distributions, the Monospot 3 is also available in a Vario Optic version, which allows the light beam to be adjusted to suit the specific lighting task.
TECHNICAL INFORMATION
| Range Name | Meyer Monospot 3 |
| Cat No. | M8903 |
| Application: | Exterior Surface / Pole Mounted |
| Lamp: | LED |
| Power | 36W |
| Lamp Life: | 50,000 hours |
| Colour Rendering | CRI > 80 |
| Protection type: | IP67 |
| Protection Class: | Class 1 |
| Impact Resistance: | IK08 |
| Tilt Range: | 180ยบ |
| Housing Material: | Die-cast aluminium |
DOWNLOADS
LIGHT OUTPUT DETAILS
| Beam | Col Temp. | Wattage | Lumen Output |
| Narrow | 3000K | 36W | 3289lm |
| Narrow | 4000K | 36W | 3391lm |
| Medium Wide | 3000K | 36W | 3283lm |
| Medium Wide | 4000K | 36W | 3448lm |
| Wide | 3000K | 36W | 3348lm |
| Wide | 4000K | 36W | 3516lm |
| Linear, vertical / horizontal | 3000K | 36W | 2829lm |
| Linear, vertical / horizontal | 4000K | 36W | 2970lm |
| Linear, rotatable | 3000K | 36W | 2603lm |
| Linear, rotatable | 4000K | 36W | 2733lm |
| Asymmetric | 3000K | 36W | 2938lm |
| Asymmetric | 4000K | 36W | 4246lm |
| Street Optic | 3000K | 36W | 3253lm |
| Street Optic | 4000K | 36W | 3391lm |
| Vario Optic | 3000K | 36W | 2211lm |
| Vario Optic | 4000K | 36W | 2281lm |

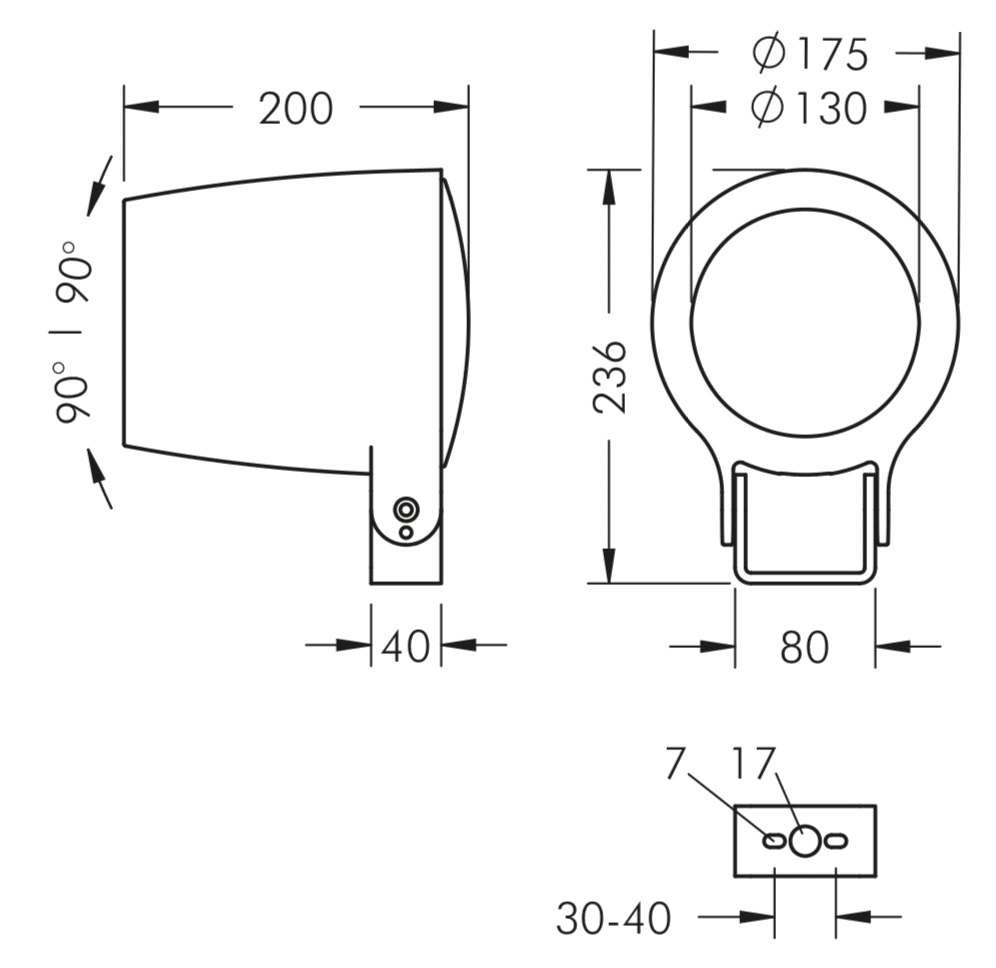

DIMENSIONS (mm)
CUSTOMISATION OPTIONS
| Light Distribution: | Asymmetrical / Narrow / Medium Wide / Wide / Street Optic / Linear beam spread, vertical / Linear, horizontal / Linear, rotatable / Vario Optic |
| Colour Temp: | 3000K / 4000K |
| Control: | 1-10V / DALI / DMX / on/off |
| Housing Colour | Black / White / Silver Grey |
