Monospot 2
Floodlight
Cat. No: M8902
Monospot is a new floodlight series with innovative technology and design. It comes in 4 sizes with varying wattages. In addition to a wide range of fixed light distributions, the Monospot 2 is also available as a surface mounted or pole top luminaire.
TECHNICAL INFORMATION
| Range Name | Meyer Monospot 2 |
| Cat No. | M8902 |
| Application: | Exterior Surface / Pole Mounted |
| Lamp: | LED |
| Lamp Life: | 50,000 hours |
| Colour Rendering Index | CRI > 80 |
| Protection type: | IP67 |
| Protection Class: | Class 1 |
| Impact Resistance: | IK08 |
| Tilt Range: | 180ยบ |
| Housing Material: | Die-cast aluminium |
DOWNLOADS
LIGHT OUTPUT DETAILS
| Beam | Col Temp. | Wattage | Lumen Output |
| Narrow | 3000K | 14W | 1095lm |
| Narrow | 4000K | 14W | 1151lm |
| Medium Wide | 3000K | 14W | 1083lm |
| Medium Wide | 4000K | 14W | 1137lm |
| Wide | 3000K | 14W | 1069lm |
| Wide | 4000K | 14W | 1123lm |
| Linear, vertical / horizontal | 3000K | 14W | 1167lm |
| Linear, vertical / horizontal | 4000K | 14W | 1225lm |
| Linear, rotatable | 3000K | 15W | 1008lm |
| Linear, rotatable | 4000K | 15W | 1058lm |

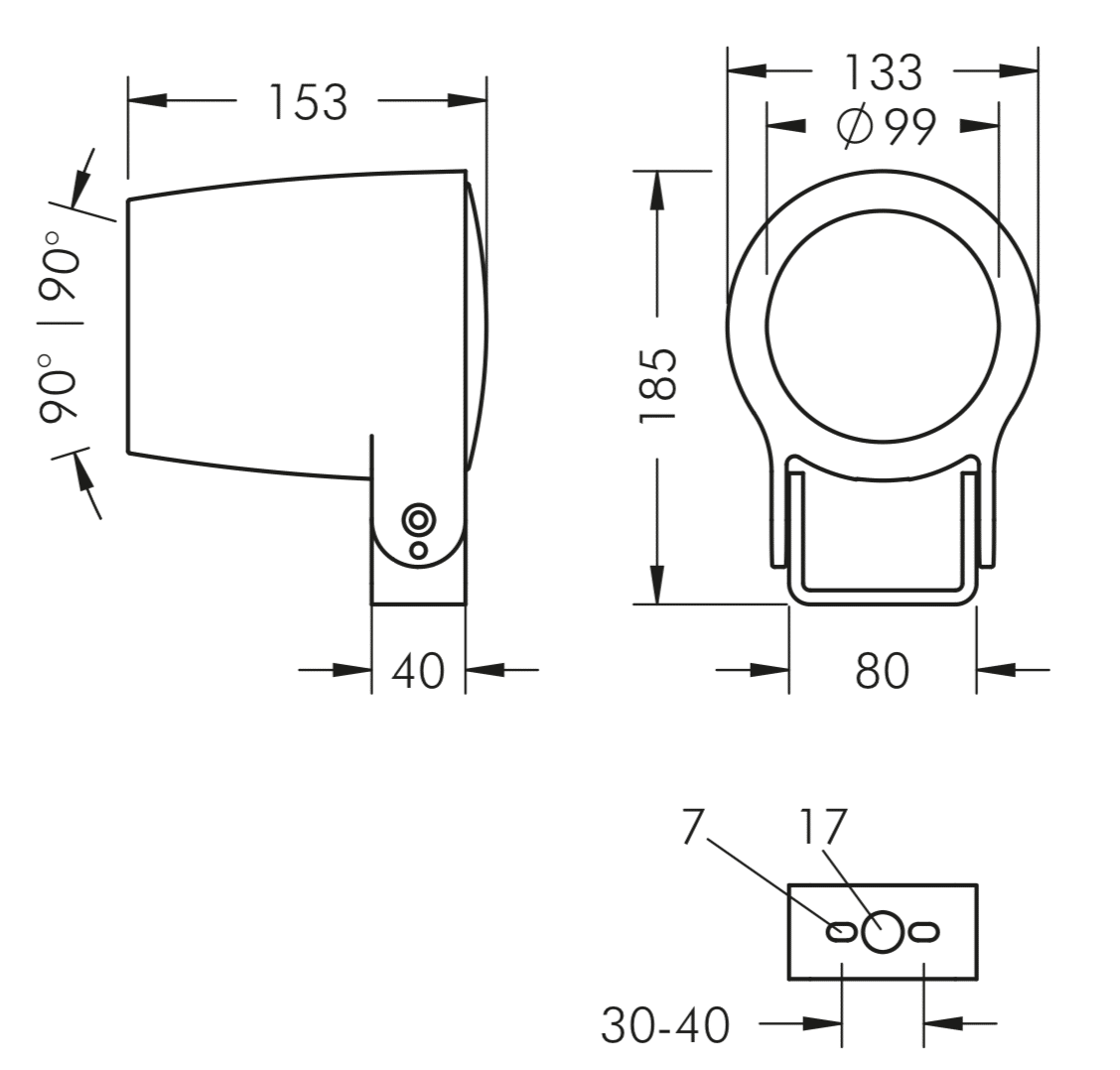

DIMENSIONS (mm)
CUSTOMISATION OPTIONS
| Output: | 14W / 15W |
| Light Distribution: | Narrow / Medium Wide / Wide / Linear beam spread, vertical / Linear, horizontal / Linear, rotatable |
| Colour Temp: | 3000K / 4000K |
| Control: | 1-10V / DALI / DMX / on/off |
| Mounting | Mounting bracket / Pole Top |
