Meyer
Nanodot
Handrail Luminaire
Light Source
LED
Colour Temperature
2700K / 3000K / 4000K
Mounting
Handrail Recessed
Application
Handrail Lighting
Housing
Stainless Steel
1 / 4
Overview
Cat. No: M8400

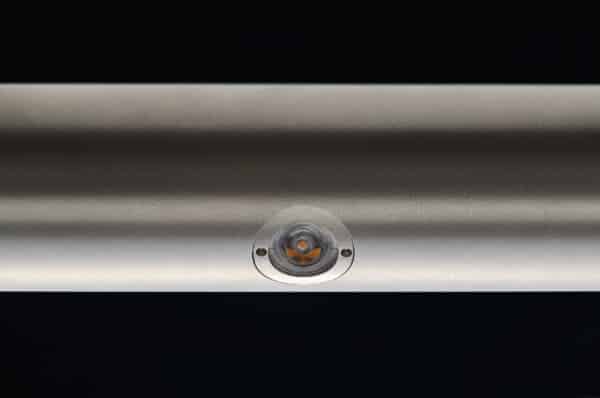

Nanodot are miniature luminaires for flush installation into round handrails made of metal. Discreet and completely glare-free, these luminaires achieve uniform illumination on paths and stairs. Precise optics create asymmetrical or wide beam light distributions and make large luminaire spacings possible. The luminaires can be retro-fitted into existing handrails on site.
For more info, please visit Meyer

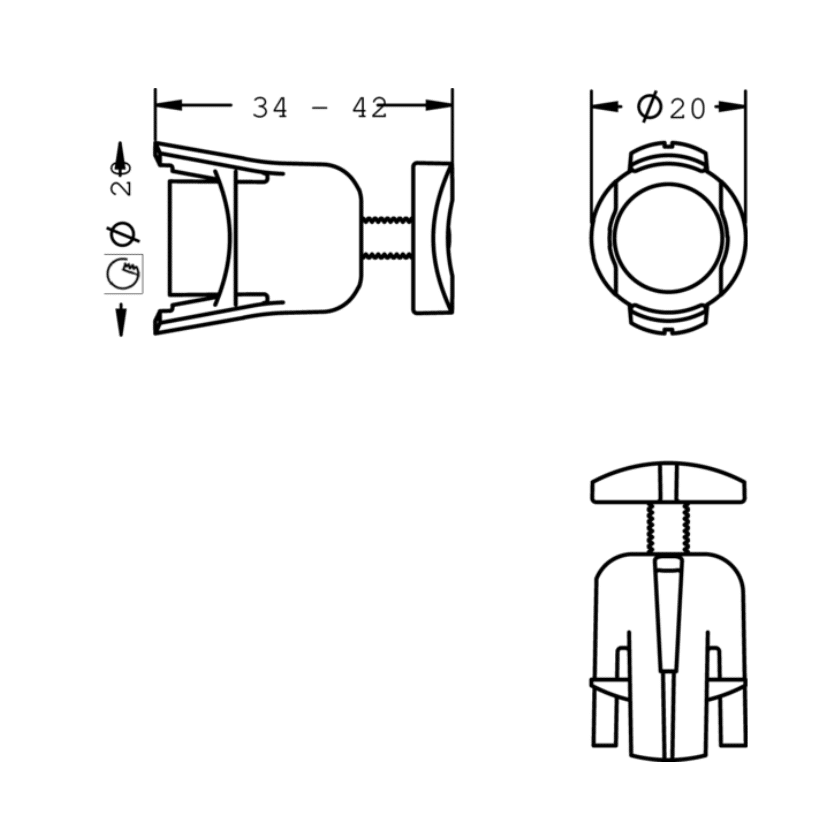

Dimensions
Technical Details
| Range Name | Meyer Nanodot |
| Cat No. | M8400 |
| Lamp: | LED |
| Lamp Life: | 50,000 hours |
| Protection type: | IP65 |
| Protection Class: | Class III |
| Impact Resistance: | IK10 |
| CRI | >80 |
| Tilt Range: | 180º |
Housing Specifications
| Housing Material | Stainless Steel |
| Finish | Stainless Steel |
| Optics | Tempered Glass |
| Dimensions | Ø20mm x W27mm |
| Weight | 0.02KG |
| Mounting | Handrail Recessed |
Light Output Details
| Beam | Col Temp. | Wattage | Lumen Output |
| Asymmetrical 43º | 2700K | 1.5W | 135lm |
| Asymmetrical 43º | 3000K | 1.5W | 151lm |
| Asymmetrical 43º | 4000K | 1.5W | 160lm |
| Lateral wide 30º / 105º | 2700K | 1.5W | 144lm |
| Lateral wide 30º / 105º | 3000K | 1.5W | 162lm |
| Lateral wide 30º / 105º | 4000K | 1.5W | 171lm |
| Bilateral asymmetrical 111º / 75º | 2700K | 1.5W | 121lm |
| Bilateral asymmetrical 111º / 75º | 3000K | 1.5W | 137lm |
| Bilateral asymmetrical 111º / 75º | 4000K | 1.5W | 145lm |
