Uplight 260
Ground Recessed
Light Source
LED
Colour Temperature
3000K / 4000K
Mounting
Ground recessed
Application
Exterior Uplighting
Housing
Die-cast aluminium
1 / 6
Overview
Cat. No: M8665
The Uplight product range offers flexible tools for sophisticated lighting projects, from accent lighting to floodlighting. These in- ground uplighters combine all the important product advantages: precise light distribution, optimal glare control, adjustable optics, shallow depth. This unique combination of technical advantages is achieved by a well thought-out product design. With the Uplight series it is possible to achieve the desired lighting effect for almost any application.
Downloads
| Range Overview (PDF) | > |
| Wall Washer Optics (PDF) | > |

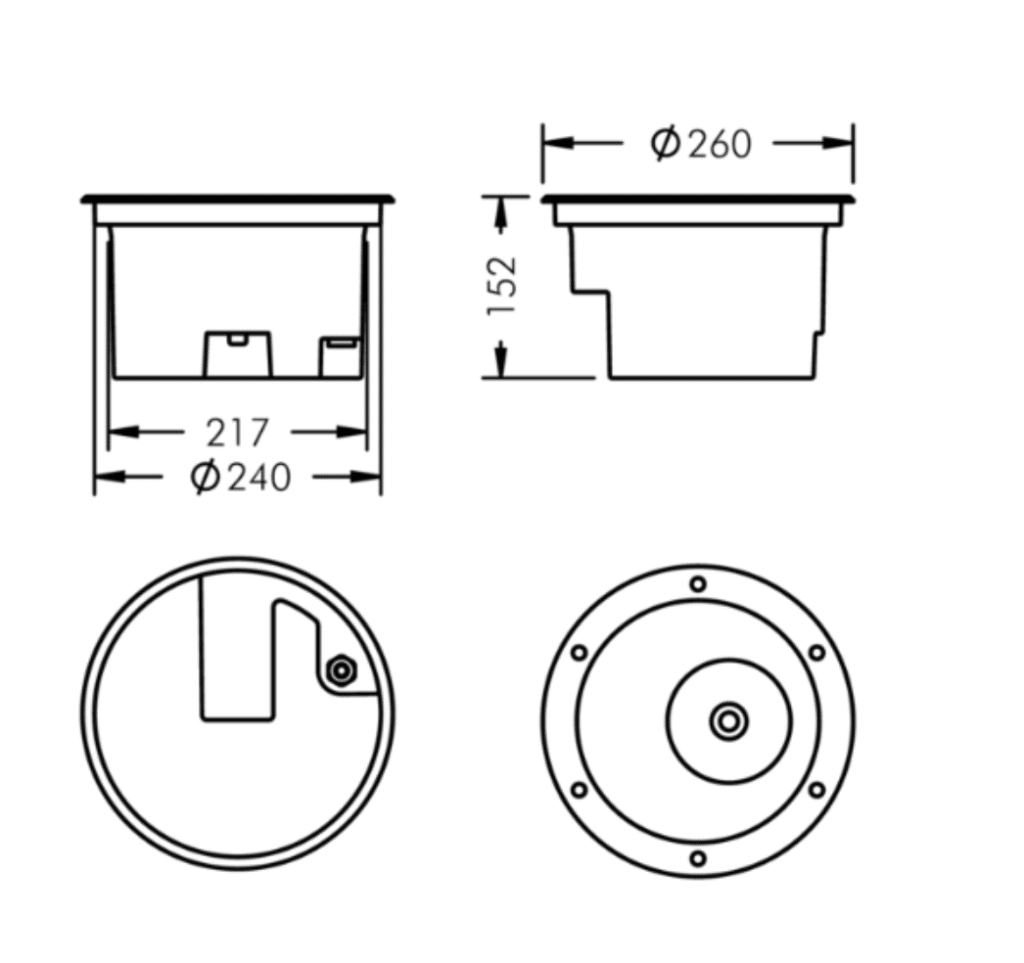

Dimensions
Technical Details
| Range Name | Meyer Uplight 260 |
| Cat No. | M8665 |
| Lamp: | LED |
| Power | 40W |
| Lamp Life: | 50,000 hours |
| Protection type: | IP68 |
| Protection Class: | Class 1 |
| Impact Resistance: | IK10 |
Housing Specifications
| Housing Material | Die-cast Aluminium |
| Finish | Stainless steel |
| Optics | Tempered anti-reflective glass |
| Dimensions | Ø260mm x W152mm |
| Weight | 5.6KG |
| Mounting | Ground recessed |
Light Output Details
| Beam | Col Temp. | Wattage | Lumen Output |
| Narrow, adjustable | 3000K | 40W | 3481lm |
| Narrow, adjustable | 4000K | 40W | 3656lm |
| Medium Wide adjustable | 3000K | 40W | 3604lm |
| Medium Wide adjustable | 4000K | 40W | 3816lm |
| Wide adjustable | 3000K | 40W | 3808lm |
| Wide adjustable | 4000K | 40W | 3953lm |
| Wall Washer | 3000K | 40W | 1628lm |
| Wall Washer | 4000K | 40W | 1707lm |
