Saturn Free Standing
LED Uplighter
Cat. No: S18707
Originally designed around high power metal halide light sources, our Saturn style free standing uplighter has been a popular choice with its timeless design, and has now been completely updated using the very latest LED technology offering efficiency of up to 182 lumens per watt. Available as standard in a choice of two outputs, with the lower output version ideal for ceiling heights up to 2.8mts. All versions supplied c/w lead and standard 13A moulded plug with pole mounted on/off switch for added convenience.
TECHNICAL INFORMATION
| Application: | Floor Mounted |
| Light Source: | Tridonic LLE |
| Lamp Life: | 50,000 hours |
| Colouring Rendering: | Ra>80 |
| Voltage: | 240V |
| Protection Rating: | Class 1 |
| Driver: | Integrated high-efficiency |
| IP Rating: | IP40 |
| Housing Material: | Spun Aluminium |
| Material Finish | Powder Coated |
| Diffuser: | High Transmission Opalised |
| Weight: | 11Kg |
| LED Warranty: | 5 Years |
LIGHT OUTPUT DETAILS
| Col Temp. | Wattage | Lumen Output | LED Efficacy |
| 3000K | 52W | 8156lm | 157lm/W |
| 4000K | 52W | 8576lm | 165lm/W |
| 3000K | 90W | 14034lm | 156lm/W |
| 4000K | 90W | 14757lm | 164lm/W |

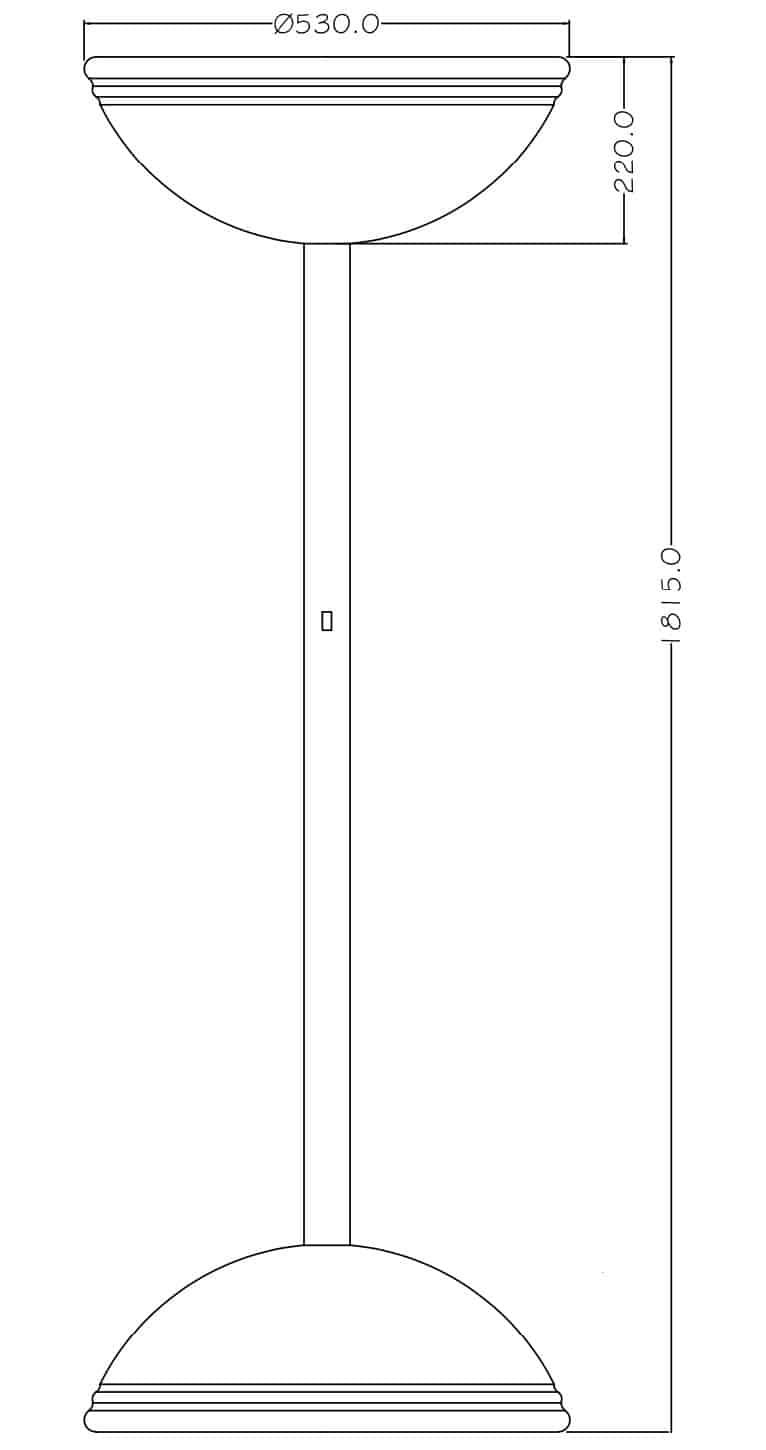

DIMENSIONS (mm)
CUSTOMISATION OPTIONS
| Housing Colour: | White / Black / Silver |
| Col. Temp: | 3000K / 4000K |
| Output: | Various |
| Emergency: | Emergency Options |
| Dimmability: | Various Options (see order code) |
BUILD YOUR PRODUCT
To generate a variant-specific order code, select an option in each of the following categories.
Range
Housing Colour
Versions
Emergency
Power Supply
Product code:
Product Details:
For more customisation options, get in touch with our Sales Team. We are always happy to discuss and develop additional variants for clients.
