Ecoblade Free Standing
S18741 Free Standing Uplighter
Cat. No: S18741
An exceptionally high performance range of top quality free standing uplighters, specifically designed around the latest high efficiency Tridonic LLE modules, offering superb performance of up to 154lm/W. Available in a range of styles including uplight only or up/downlight. For an added decorative touch our Ecobalde Slot features an illuminated slot in the front facade (see Ecoblade Slot Free Standing S18742 range).
Main housing produced from extruded aluminium with integral passive thermal management. All versions supplied with Nano/Microprism diffuser for optimum light transmission and visual comfort. Finished in textured polyester powder coat with standard finishes in white, black and silver, with other BS/RAL colours available to order.
Supplied complete with switch, mains lead and moulded 13A plug for total ease of installation.
TECHNICAL INFORMATION
| Range Name: | Sovereign Ecoblade Free Standing Uplighter |
| Range No. | S18741 |
| Application: | Interior Floor |
| Lamp: | TRIDONIC / OSRAM LLE modules |
| Lamp Life: | 50,000 hours |
| CRI: | >80 |
| Voltage: | 240V |
| Protection Class | Class 1 |
| Protection Rating: | IP40 |
| Driver: | Integrated high-efficiency |
| Cooling: | Passive Heatsink |
| Housing Material: | Extruded Aluminium |
| Housing Finish: | Textured Polyester Powder Coated |
| LED Warranty: | 5 Years |
LIGHT OUTPUT DETAILS
| Uplighter | |||
|---|---|---|---|
| Col Temp. | Wattage | Lumen Output | LED Efficacy |
| 3000K | 52W | 8100lm | 156lm/W |
| 4000K | 52W | 8500lm | 163lm/W |
| Up/Downlight | |||
|---|---|---|---|
| Col Temp. | Wattage | Lumen Output | LED Efficacy |
| 3000K | 66W | 10126lm | 153lm/W |
| 4000K | 66W | 10600lm | 161lm/W |

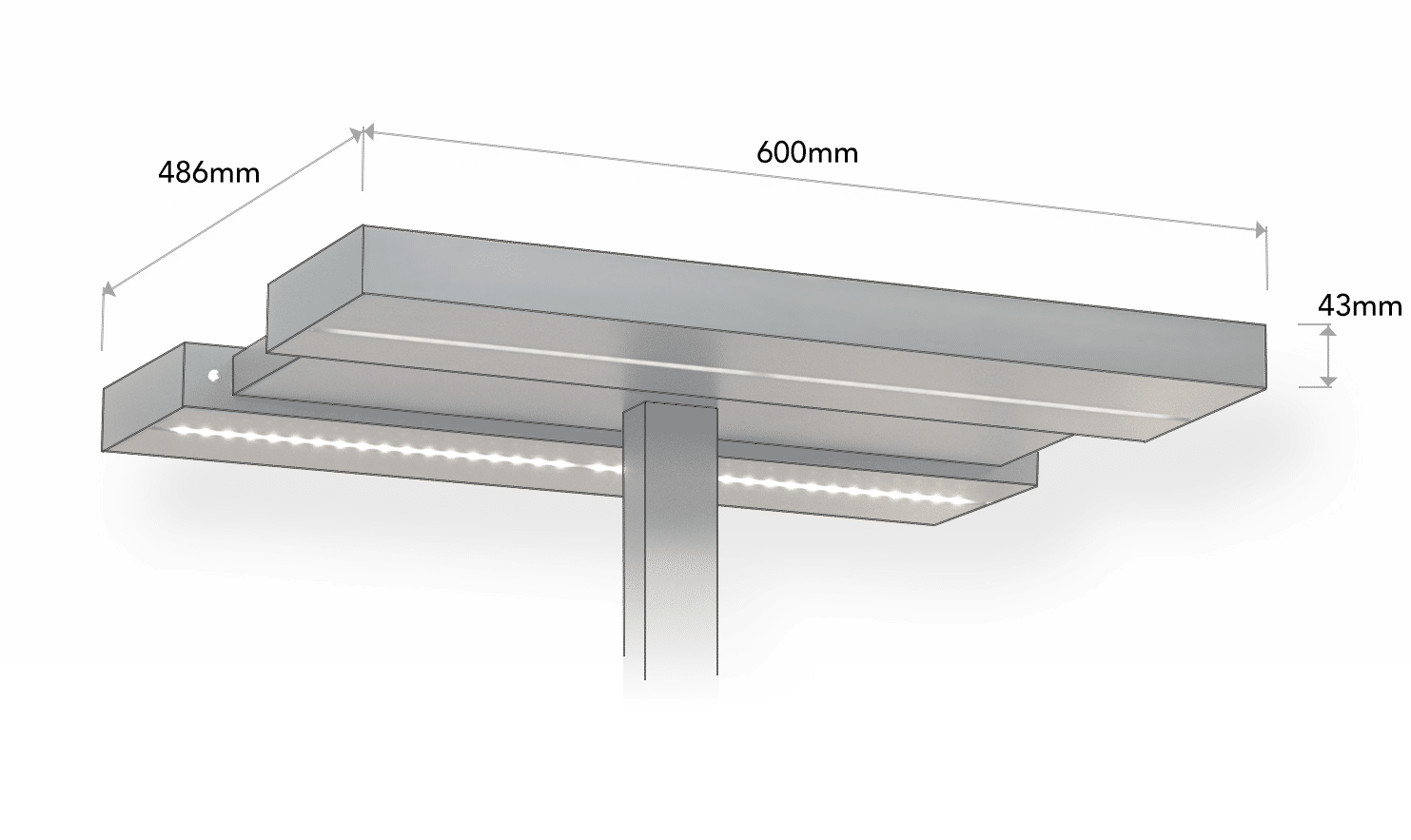

DIMENSIONS (mm)
CUSTOMISATION OPTIONS
| BODY COLOUR: | White / Black / Silver |
| COL. TEMP: | 3000K / 4000K |
| POWER SUPPLY: | Non-Dimming / Dimmable options |
| DRIVER: | Emergency / Non-Emergency |
