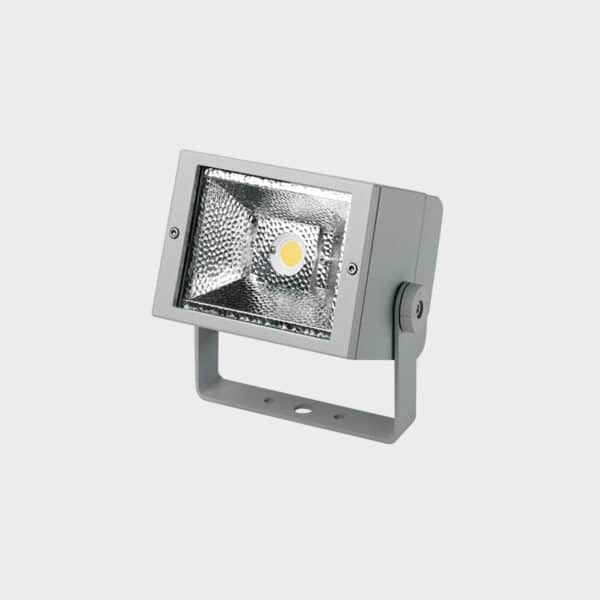

Superlight Compact

Floodlight

Cat. No: M8869

The Superlight Compact floodlight series has become a standard instrument in lighting design. Over the years the range has been expanded and modified for new light sources. The range has now been adapted to make use of the latest generation of very small, high performance LED modules.

Thanks to their compact dimensions, the wide range of reflectors available and their timeless design, these luminaires have become indispensable tools for architectural lighting. A comprehensive range of accessories makes it possible to adapt these luminaires for specific lighting situations.

TECHNICAL INFORMATION

Range NameMeyer Compact
Cat No.M8869
Application:Exterior Surface
Lamp:LED
Power10 x 2.5W RGB
Lamp Life:50,000 hours
Protection type:IP65
Protection Class:Class 1
Impact Resistance:IK08
Tilt Range:120º
Housing Material:Die-cast aluminium

DOWNLOADS

LIGHT OUTPUT DETAILS

Beam Angle Col Temp. Wattage Lumen Output
Narrow 3000K 25W 1564lm
Narrow 4000K 25W 1674lm
Narrow 3000K 48W 3728lm
Narrow 4000K 48W 3861lm
Medium Wide 3000K 26W 1488lm
Medium Wide 4000K 26W 1710lm
Medium Wide 3000K 48W 3705lm
Medium Wide 4000K 48W 3853lm
Wide 3000K 25W 1454lm
Wide 4000K 25W 1556lm
Wide 3000K 46W 4428lm
Wide 4000K 46W 4561lm
Linear, Vertical / horizontal 3000K 25W 1488lm
Linear, Vertical / horizontal 4000K 25W 1592lm
Linear, Vertical / horizontal 3000K 46W 3566lm
Linear, Vertical / horizontal 4000K 46W 3744lm
Asymmetrical 3000K 46W 4060lm
Asymmetrical 4000K 46W 4158lm

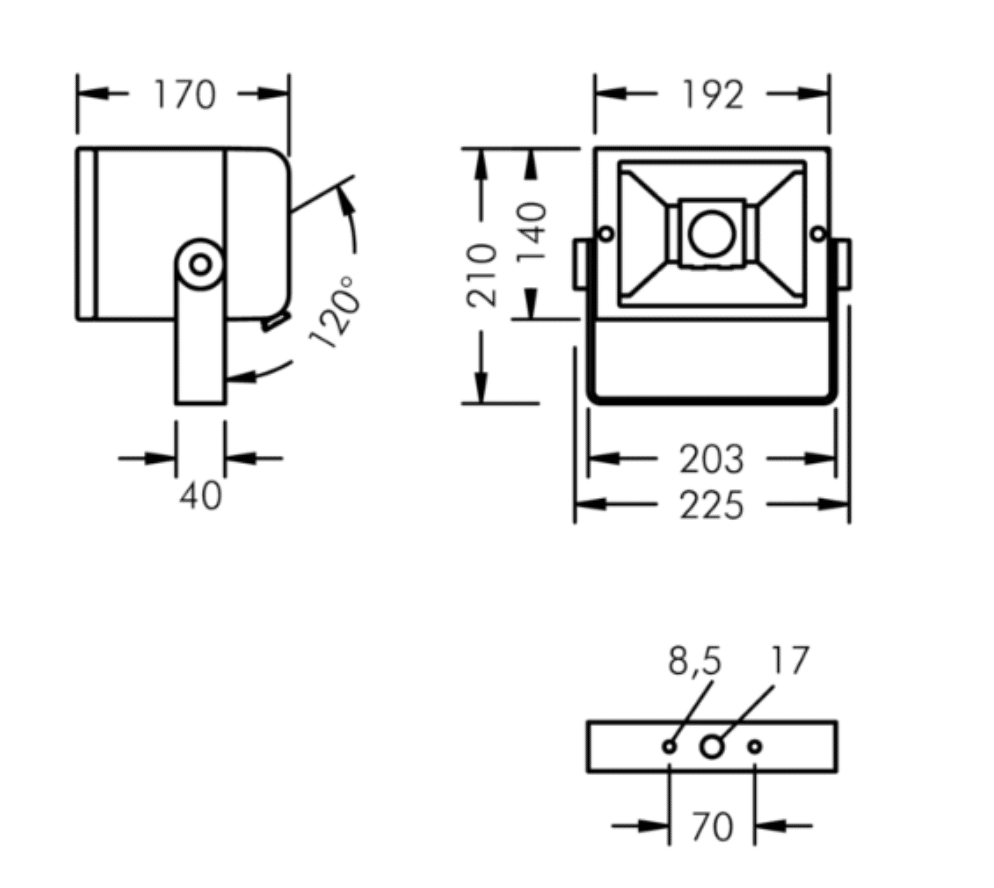

DIMENSIONS (mm)

CUSTOMISATION OPTIONS

Light Distribution:Narrow / Medium Wide / Wide / Linear, vertical / Linear, horizontal
Colour Temp:3000K / 4000K
Control:1-10V / DALI / DMX / on/off
Housing ColourBlack / White / Silver Grey
