Cone Uplight 1
Wall Mounted Uplight
Light Source
Tridonic LLE LED
Colour Temperature
3000K / 4000K
Mounting
Surface mounting
Application
Interior Wall
Housing
Spun aluminium
1 / 5
Overview
Cat. No: S18580
A classic Sovereign luminaire updated to the latest LED technology, the Sovereign Cone Uplight provides high quality, energy efficient lighting for interior environments. Designed as an elegant single spun housing, the high-purity aluminium ensures quality and product longevity. The Cone’s microprism diffuser generates a pleasingly soft and uniform spread, with integral control gear as standard.
Downloads
| OVERVIEW PDF | > |
| TECHNICAL DRAWING (JPG) | > |

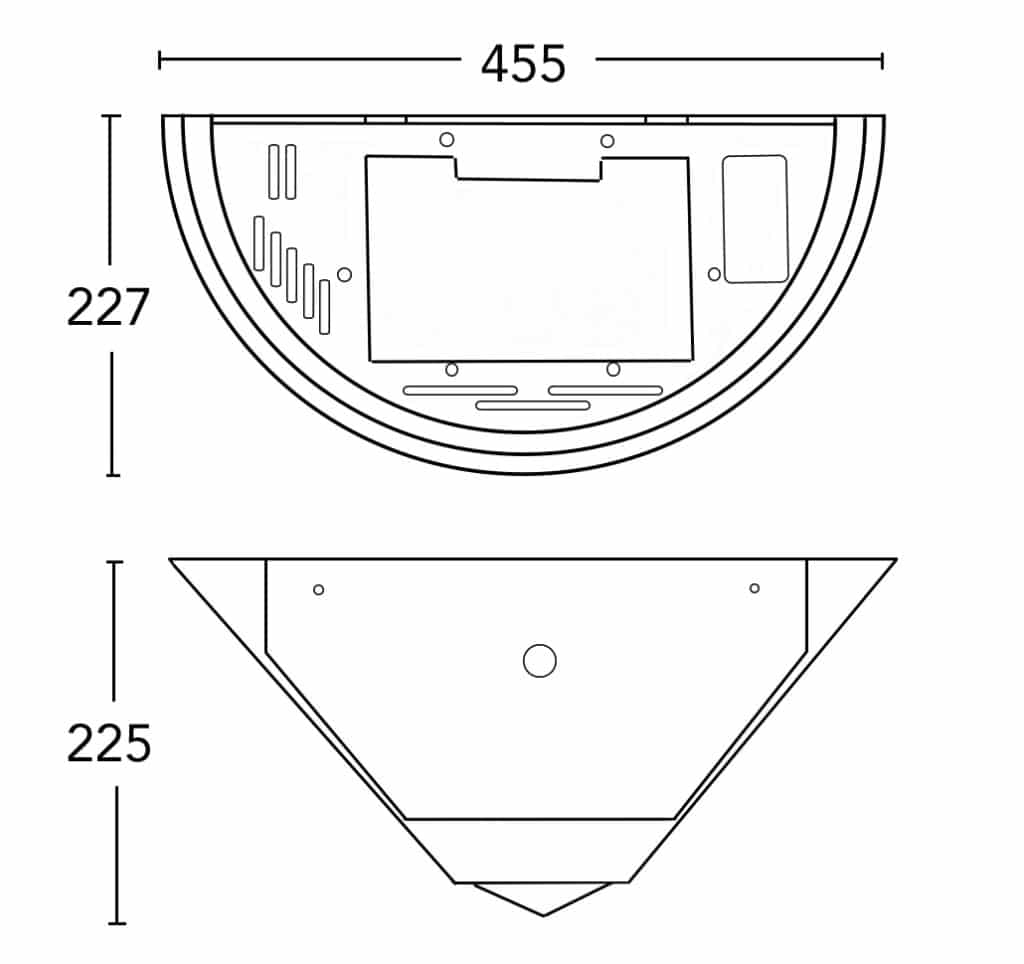

Dimensions
Technical Details
| LAMP: | Tridonic LLE LED module |
| LAMP LIFE | 50,000 hours |
| CRI: | >90 |
| VOLTAGE | 240V |
| WATTAGE: | 26W |
| CLASS: | Class 1 |
| DRIVER: | Integrated high-efficiency |
| IP RATING: | IP40 |
| LED WARRANTY | 5 years |
Housing Specifications
| Housing Material | Spun Aluminium |
| Finish | Powder Coated |
| Optics | Microprism |
| Dimensions | W455mm / H225mm / D227mm |
| Weight | 1.2KG |
| Mounting | Surface mounting |
Light Output Details
| COL. TEMP | WATTAGE | LUMEN OUTPUT | LED EFFICACY |
| 3000K | 26W | 4145lm | 1596lm/W |
| 4000K | 26W | 4396lm | 169lm/W |
| 3000K | 39W | 6217lm | 1596lm/W |
| 4000K | 39W | 6594lm | 169lm/W |
