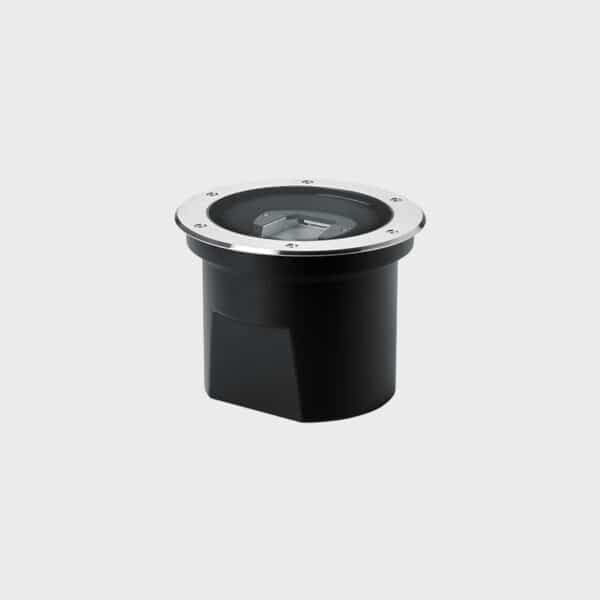

Uplight 220
Ground Recessed





Cat. No: M8663
The Uplight product range offers flexible tools for sophisticated lighting projects, from accent lighting to floodlighting. These in- ground uplighters combine all the important product advantages: precise light distribution, optimal glare control, adjustable optics, shallow depth. This unique combination of technical advantages is achieved by a well thought-out product design. With the Uplight series it is possible to achieve the desired lighting effect for almost any application.
TECHNICAL INFORMATION
Range Name | Meyer Uplight 220 |
Cat No. | M8663 |
Application: | Exterior Ground Recessed |
Lamp: | LED |
Power | 1 x 21W |
Lamp Life: | 50,000 hours |
Protection type: | IP68 |
Protection Class: | Class 1 |
Impact Resistance: | IK08 |
Tilt Range | 0 - 15ยบ |
Housing Material: | Die-cast aluminium |
LIGHT OUTPUT DETAILS
Beam | Col Temp. | Wattage | Lumen Output |
Narrow | 3000K | 1 x 21W | 1628lm |
Narrow | 4000K | 1 x 21W | 1710lm |
Medium Wide | 3000K | 1 x 21W | 1519lm |
Medium Wide | 4000K | 1 x 21W | 1596lm |
Wall Washer | 3000K | 1 x 19W | 672lm |
Wall Washer | 4000K | 1 x 19W | 706lm |

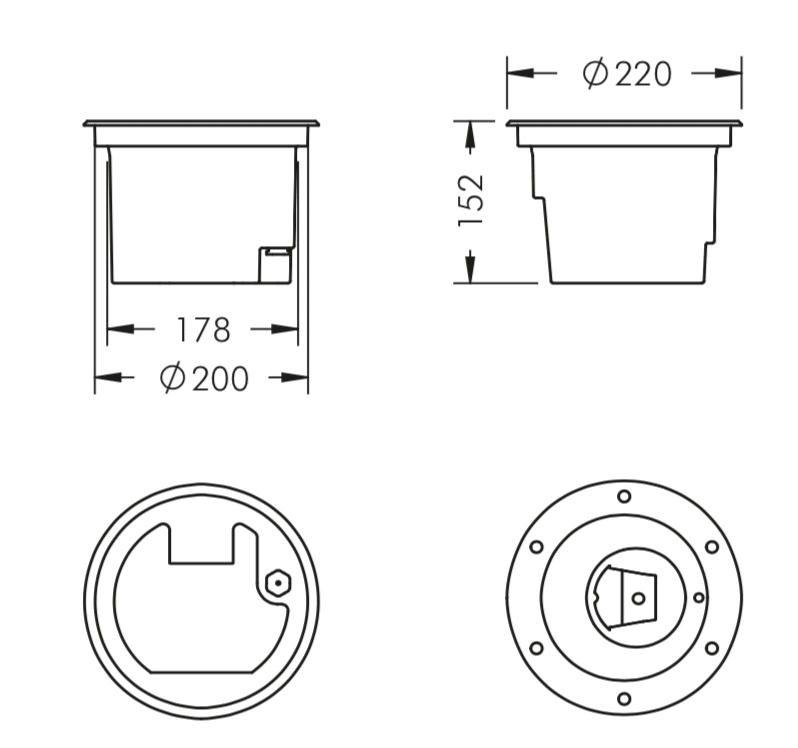

DIMENSIONS (mm)

CUSTOMISATION OPTIONS
Light Distribution: | Narrow / Linear / Wide |
Colour Temp: | 3000K / 4000K |
Control: | 1-10V / DALI / DMX / on/off |
Housing Colour | Black / White / Silver Grey |
Fixation | with overlapping trim / for flush mounting |
INTERESTED IN THIS PRODUCT?
Need more information or advice about this product? Just get in touch.
