Uplight 200

Ground Recessed

Cat. No: M8659

The Uplight product range offers flexible tools for sophisticated lighting projects, from accent lighting to floodlighting. These in- ground uplighters combine all the important product advantages: precise light distribution, optimal glare control, adjustable optics, shallow depth. This unique combination of technical advantages is achieved by a well thought-out product design. With the Uplight series it is possible to achieve the desired lighting effect for almost any application.

TECHNICAL INFORMATION

Range NameMeyer Uplight 200
Cat No.M8659
Application:Exterior Ground Recessed
Lamp:LED
Power1 x 5W
Lamp Life:50,000 hours
Protection type:IP67
Protection Class:Class 1
Impact Resistance:IK08
Tilt Range0 - 15ยบ
Housing Material:Die-cast aluminium

DOWNLOADS

LIGHT OUTPUT DETAILS

BeamCol Temp.WattageLumen Output
Narrow3000K1 x 5W380lm
Narrow4000K1 x 5W406lm
Linear3000K1 x 5W369lm
Linear4000K1 x 5W395lm
Wide3000K1 x 5W343lm
Wide4000K1 x 5W367lm

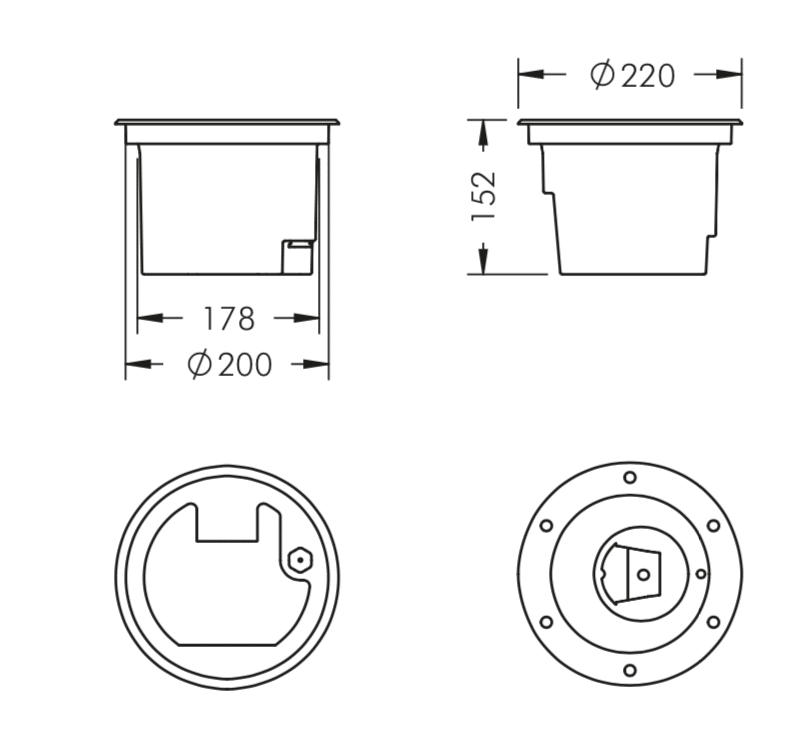

DIMENSIONS (mm)

CUSTOMISATION OPTIONS

Light Distribution:Narrow / Linear / Wide
Colour Temp:3000K / 4000K
Control:1-10V / DALI / DMX / on/off
Housing ColourBlack / White / Silver Grey
Fixationwith overlapping trim / for flush mounting
