Meyer

Uplight 260 S

Ground Recessed

Key Features

Light Source

LED

Colour Temperature

3000K / 4000K

Mounting

Ground recessed

Application

Exterior Uplighting

Housing

Die-cast aluminium

Class I - Luminaire with basic insulation. Protection: connection of the accessible metal parts to the earthing connection. IP67 - provides protection against immersion up to 1m Protected against 20 joules of impact (the equivalent to the impact of a 5kg mass dropped from 400mm above the impacted surface) Product is certified according to European standards

Overview

Cat. No: M8669

The Uplight S product range are luminaires with extremely shallow recess depth. This product feature ensures that the luminaries do not collide with existing infrastructure in the ground, such as electrical or water conduit. Adjustable collimator optics with various different light distributions make these products versatile tools for architectural and landscape lighting. Optimal glare control can be achieved by the use of honeycomb louvres as an accessory.

Downloads


Range Overview (PDF) >
Wall Washer Optics (PDF) >

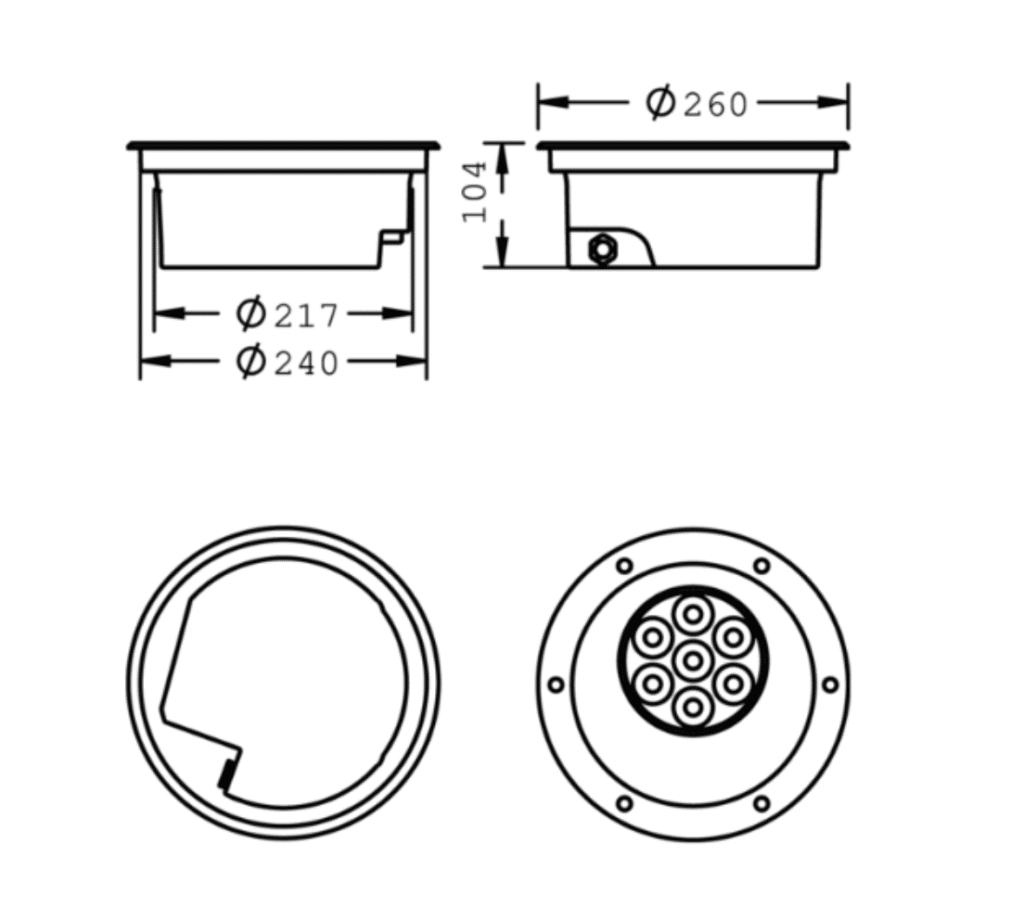

Dimensions


Technical Details


Housing Specifications


Light Output Details


Beam Col Temp. Wattage Lumen Output
Narrow, adjustable 3000K 25W 2002lm
Narrow, adjustable 4000K 25W 2102m
Medium Wide adjustable 3000K 25W 1921lm
Medium Wide adjustable 4000K 25W 2017lm
Wide adjustable 3000K 25W 2086lm
Wide adjustable 4000K 25W 2190m
