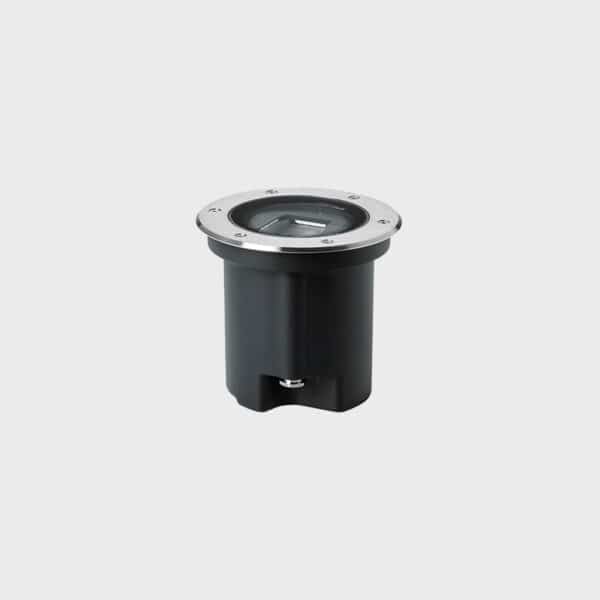

Uplight 180

Ground Recessed

Cat. No: M8655

The Uplight product range offers flexible tools for sophisticated lighting projects, from accent lighting to floodlighting. These in- ground uplighters combine all the important product advantages: precise light distribution, optimal glare control, adjustable optics, shallow depth. This unique combination of technical advantages is achieved by a well thought-out product design. With the Uplight series it is possible to achieve the desired lighting effect for almost any application.

TECHNICAL INFORMATION

Range NameMeyer Uplight 180
Cat No.M8655
Application:Exterior Ground Recessed
Lamp:LED
Power1 x 11W
Lamp Life:50,000 hours
Protection type:IP67
Protection Class:Class 1
Impact Resistance:IK08
Tilt Range0 - 13ยบ
Housing Material:Die-cast aluminium

DOWNLOADS

LIGHT OUTPUT DETAILS

Beam Col Temp. Wattage Lumen Output
Narrow 3000K 1 x 11W 859lm
Narrow 4000K 1 x 11W 904lm
Medium Wide 3000K 1 x 11W 849lm
Medium Wide 4000K 1 x 11W 893lm
Wide 3000K 1 x 11W 838lm
Wide 4000K 1 x 11W 882lm
Wall Washer 3000K 1 x 11W 424lm
Wall Washer 4000K 1 x 11W 446lm

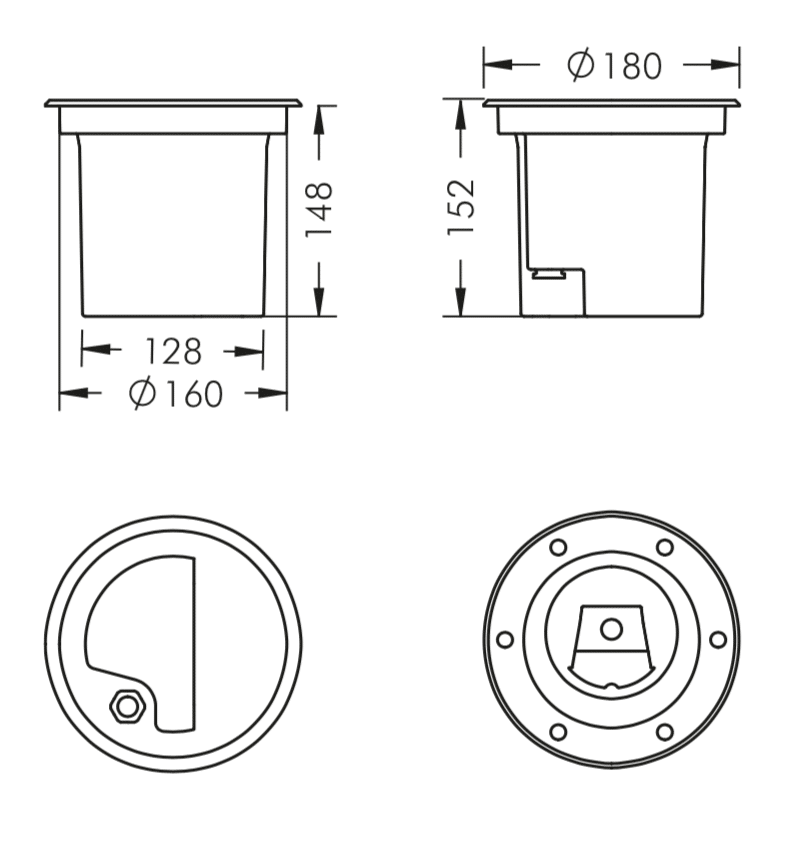

DIMENSIONS (mm)

CUSTOMISATION OPTIONS

Light Distribution:Narrow / Medium Wide / Wide / Wall Washer
Colour Temp:3000K / 4000K
Control:1-10V / DALI / DMX / on/off
Housing ColourBlack / White / Silver Grey
Fixationwith overlapping trim / for flush mounting
