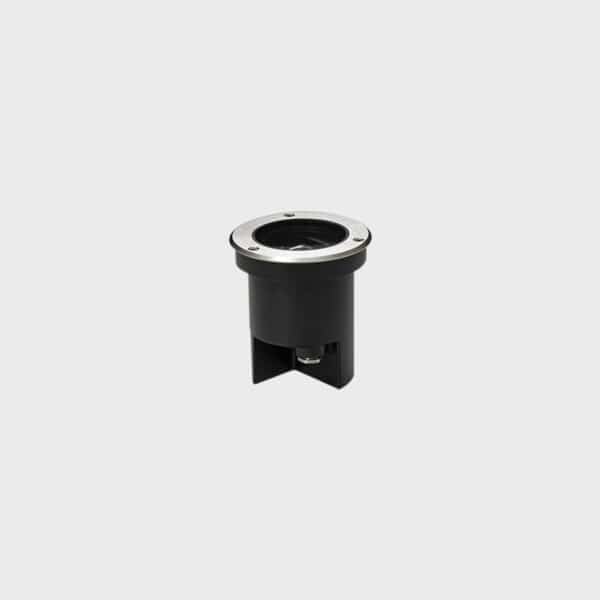

Uplight 135
Ground Recessed





Cat. No: M8657
The Uplight product range offers flexible tools for sophisticated lighting projects, from accent lighting to floodlighting. These in- ground uplighters combine all the important product advantages: precise light distribution, optimal glare control, adjustable optics, shallow depth. This unique combination of technical advantages is achieved by a well thought-out product design. With the Uplight series it is possible to achieve the desired lighting effect for almost any application.
TECHNICAL INFORMATION
Range Name | Meyer Uplight 135 |
Cat No. | M8657 |
Application: | Exterior Ground Recessed |
Lamp: | LED |
Power | 1 x 3W |
Lamp Life: | 50,000 hours |
Protection type: | IP67 |
Protection Class: | Class 1 |
Impact Resistance: | IK08 |
Tilt Range | 0 - 15ยบ |
Housing Material: | Die-cast aluminium |
LIGHT OUTPUT DETAILS
Beam | Col Temp. | Wattage | Lumen Output |
Narrow | 3000K | 1 x 3W | 125lm |
Narrow | 4000K | 1 x 3W | 142lm |
Medium Wide | 3000K | 1 x 3W | 125lm |
Medium Wide | 4000K | 1 x 3W | 143lm |

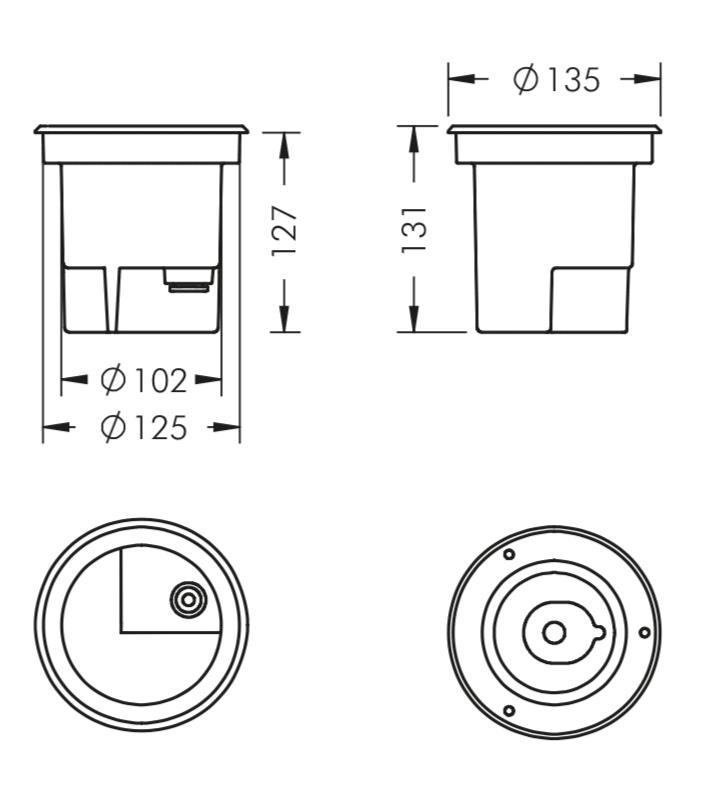

DIMENSIONS (mm)

CUSTOMISATION OPTIONS
Light Distribution: | Narrow / Medium Wide |
Colour Temp: | 3000K / 4000K |
Control: | 1-10V / DALI / DMX / on/off |
Housing Colour | Black / White / Silver Grey |
