Uplight 180 S
Ground Recessed
Light Source
LED
Colour Temperature
3000K / 4000K
Mounting
Ground recessed
Application
Exterior lighting
Housing
Die-cast aluminium
1 / 4
Overview
Cat. No: M8653
The Uplight S product range are luminaires with extremely shallow recess depth. This product feature ensures that the luminaries do not collide with existing infrastructure in the ground, such as electrical or water conduit. Adjustable collimator optics with various different light distributions make these products versatile tools for architectural and landscape lighting. Optimal glare control can be achieved by the use of honeycomb louvres as an accessory.
Downloads
| Range Overview (PDF) | > |
| Wall Washer Optics (PDF) | > |

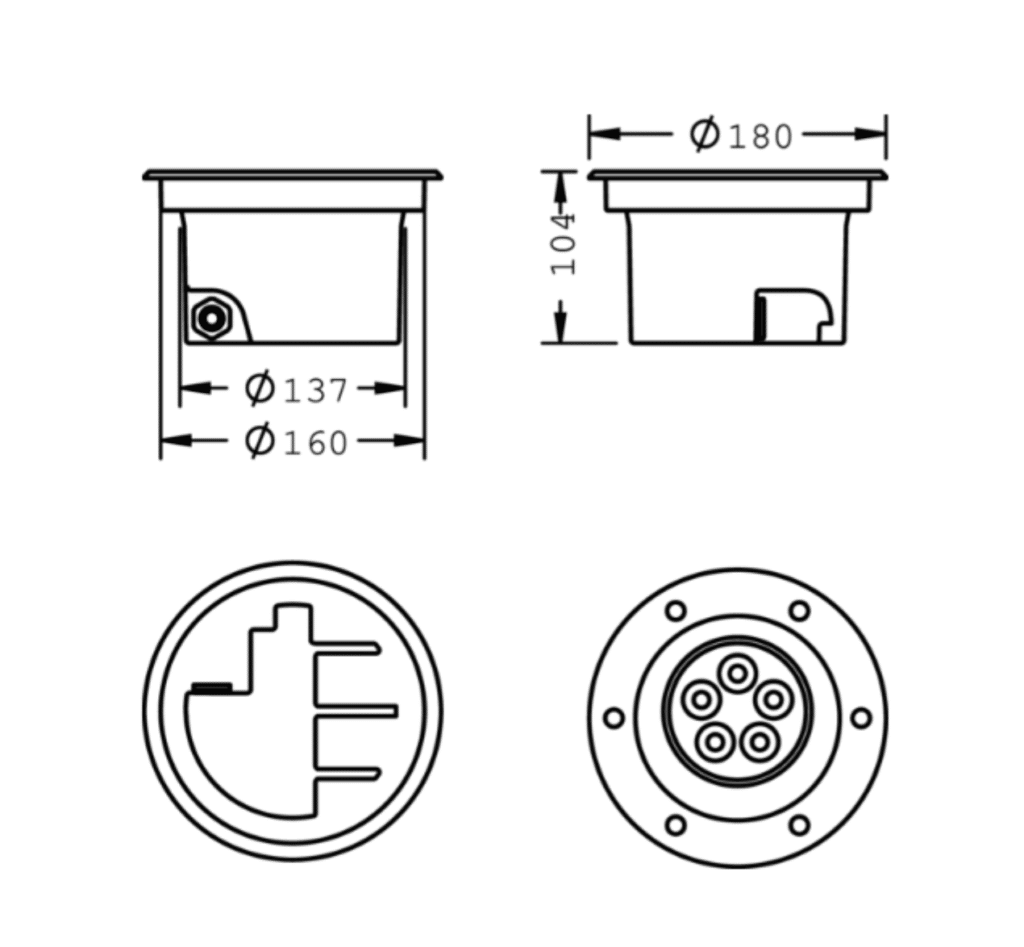

Dimensions
Technical Details
| Range Name | Meyer Uplight 180 S |
| Cat No. | M8653 |
| Lamp: | LED |
| Power | 10W |
| Lamp Life: | 50,000 hours |
| Protection type: | IP67 |
| Protection Class: | Class 1 |
| Impact Resistance: | IK10 |
Housing Specifications
| Housing Material | Die-cast Aluminium |
| Finish | Stainless steel |
| Optics | Tempered anti-reflective glass |
| Dimensions | Ø180mm x W104mm |
| Weight | 2.3KG |
| Mounting | Ground recessed |
Light Output Details
| Beam | Col Temp. | Wattage | Lumen Output |
| Narrow | 3000K | 10W | 594lm |
| Narrow | 4000K | 10W | 624lm |
| Medium Wide | 3000K | 10W | 609lm |
| Medium Wide | 4000K | 10W | 640lm |
| Wide | 3000K | 10W | 501lm |
| Wide | 4000K | 10W | 526lm |
| Linear, horizontal, adjustable | 3000K | 10W | 529lm |
| Linear, horizontal, adjustable | 4000K | 10W | 555lm |
