Meyer

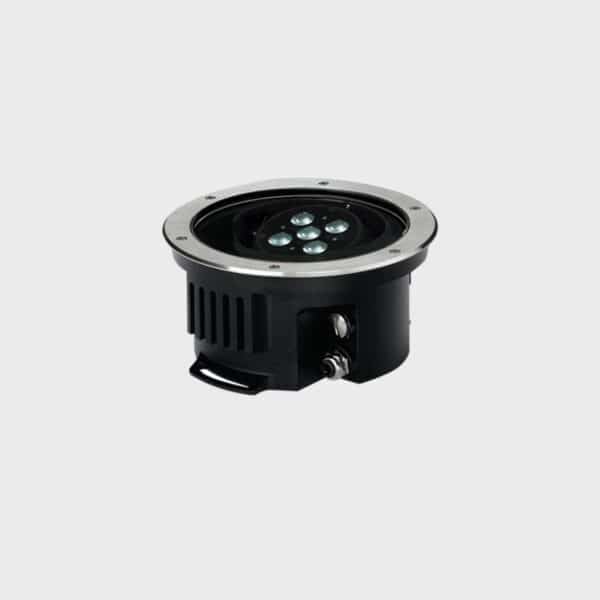

Uplight 280

Ground Recessed

Key Features

Light Source

LED

Colour Temperature

3000K / 4000K

Mounting

Ground recessed

Application

Exterior Uplighting

Housing

Die-cast aluminium

Class I - Luminaire with basic insulation. Protection: connection of the accessible metal parts to the earthing connection. IP67 - provides protection against immersion up to 1m Protected against 20 joules of impact (the equivalent to the impact of a 5kg mass dropped from 400mm above the impacted surface) Product is certified according to European standards

Overview

Cat. No: M8661

The Uplight product range offers flexible tools for sophisticated lighting projects, from accent lighting to floodlighting. These in- ground uplighters combine all the important product advantages: precise light distribution, optimal glare control, adjustable optics, shallow depth. This unique combination of technical advantages is achieved by a well thought-out product design. With the Uplight series it is possible to achieve the desired lighting effect for almost any application.

Downloads


Range Overview (PDF) >
Wall Washer Optics (PDF) >

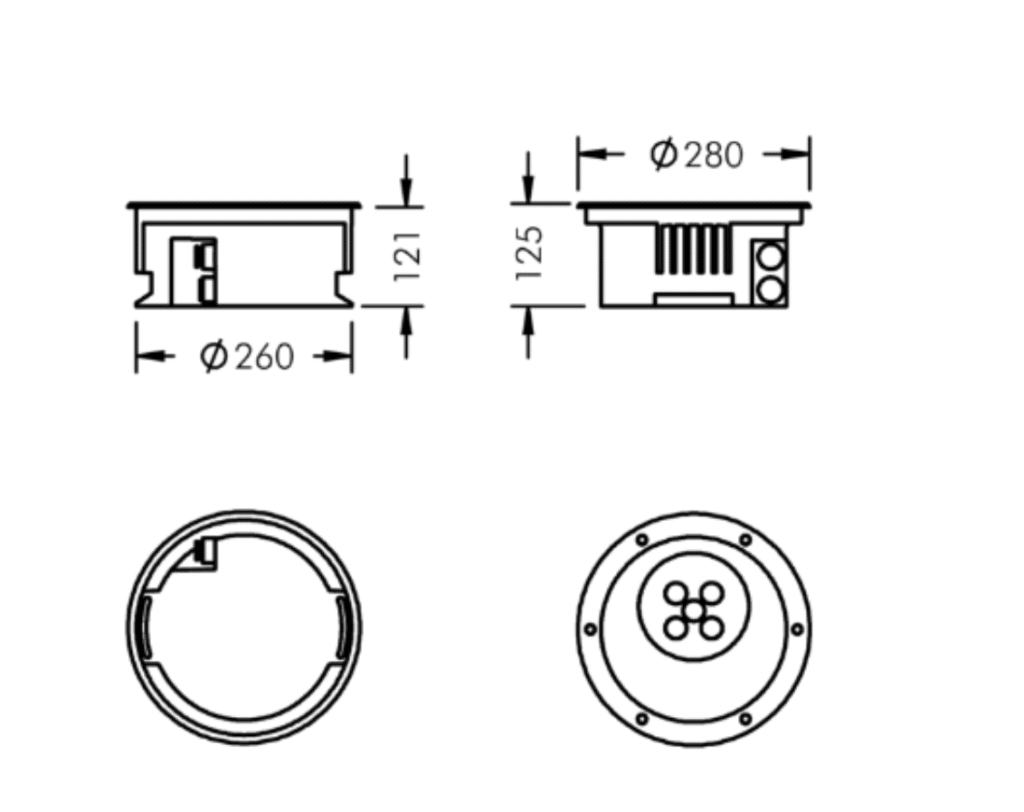

Dimensions


Technical Details


Housing Specifications


Light Output Details


Beam Col Temp. Wattage Lumen Output
Narrow, adjustable 3000K 12W 782lm
Narrow, adjustable 4000K 12W 836lm
Narrow, adjustable RGBW (3000K) 23W 731lm
Medium Wide adjustable RGBW (3000K) 23W 772lm
Wide adjustable 3000K 13W 727lm
Wide adjustable 4000K 13W 778lm
Linear vertical / horizontal 3000K 13W 741lm
Linear vertical / horizontal 4000K 13W 793lm
