Upline 600
Buried Uplight
Light Source
LED
Colour Temperature
3000K / 4000K
Mounting
Ground recessed
Application
Exterior Uplighting
Housing
Die-cast aluminium
1 / 3
Overview
Cat. No: M8650
The new series of linear in-ground uplighters is a versatile and slim luminaire for discrete installation. The products are available with wall washer or asymmetrical distribution optics. This allows for optimal results, depending on the distance between the façade and luminaire. Thanks to their very wide beam distribution, the wall washer optics create very little shadow between luminaires. The range is completed with a diffuse wide beam version as an orientation marker.
For more info, please visit Meyer
Downloads
| Range Overview (PDF) | > |

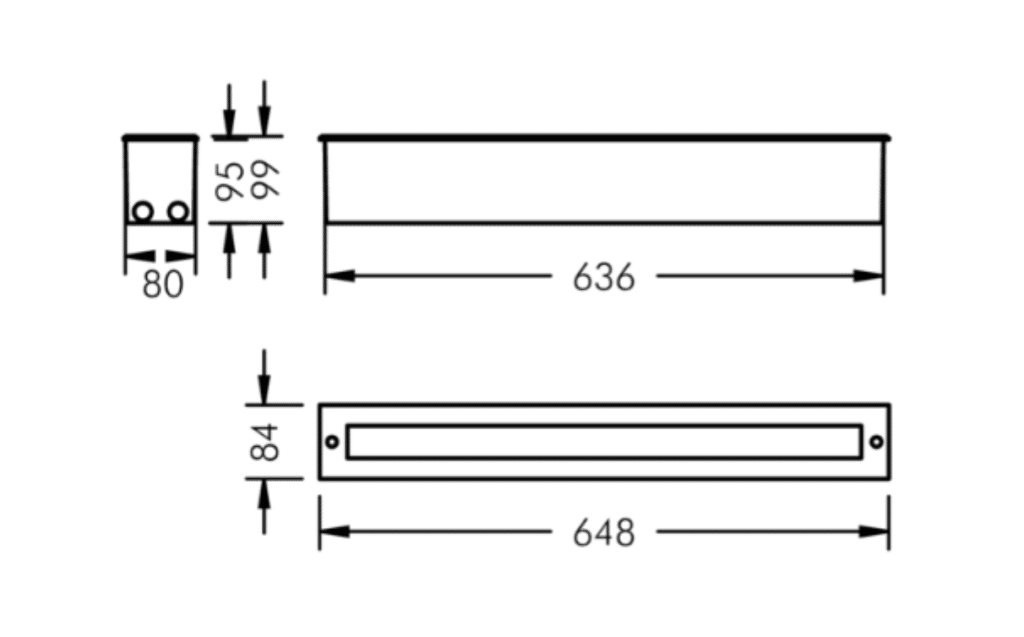

Dimensions
Technical Details
| Lamp: | LED |
| Power | 15W / 19W |
| Lamp Life: | 50,000 hours |
| Protection type: | IP67 |
| Protection Class: | Class 1 |
| Impact Resistance | IK10 |
Housing Specifications
| Housing Material | Die-cast Aluminium |
| Finish | Stainless steel |
| Optics | Tempered anti-reflective glass |
| Dimensions | H648 x H99 x W84 |
| Weight | 3.6KG |
| Mounting | Ground recessed |
Light Output Details
| Beam | Col Temp. | Wattage | Lumen Output |
| Wall washer | 3000K | 15W | 1059lm |
| Wall washer | 4000K | 15W | 1112lm |
| Asymmetrical | 3000K | 15W | 1054lm |
| Asymmetrical | 4000K | 15W | 1107lm |
| Orientation luminaire | 3000K | 19W | 556lm |
| Orientation luminaire | 4000K | 19W | 584lm |
